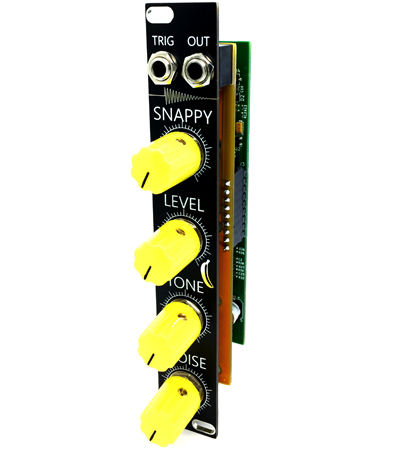

808 Snare Drum for Eurorack

A fully analogue and modern approach of the 808 snare drum.

I´ve been following the original schematic very close to get the best result.

1 Trigger in

1 Audio out

Snappy, Level, Tone and Noise Control

4HP

Depth: 40mm

+12V - 15mA

-12V - 12mA
