Coco is a MIDI & CV controller following the product line of KIWI & Lemon controllers.
It shares the same specs but in a shrinked and compact form factor.
-

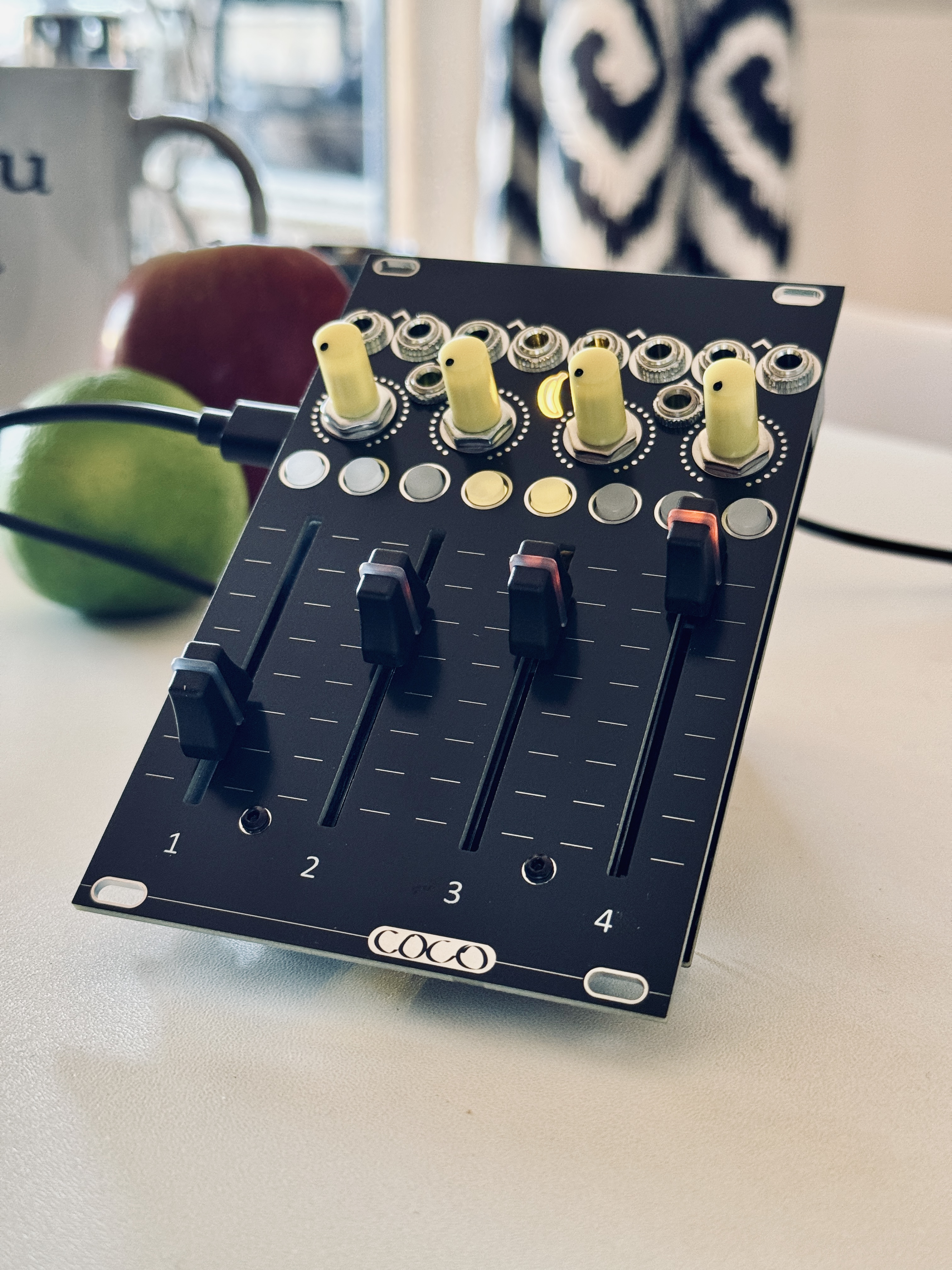

4 channels with LED faders and potentiometers
-
Precise CV out for each fader and potentiometer
-
Fully adressable buttons & LEDs
-

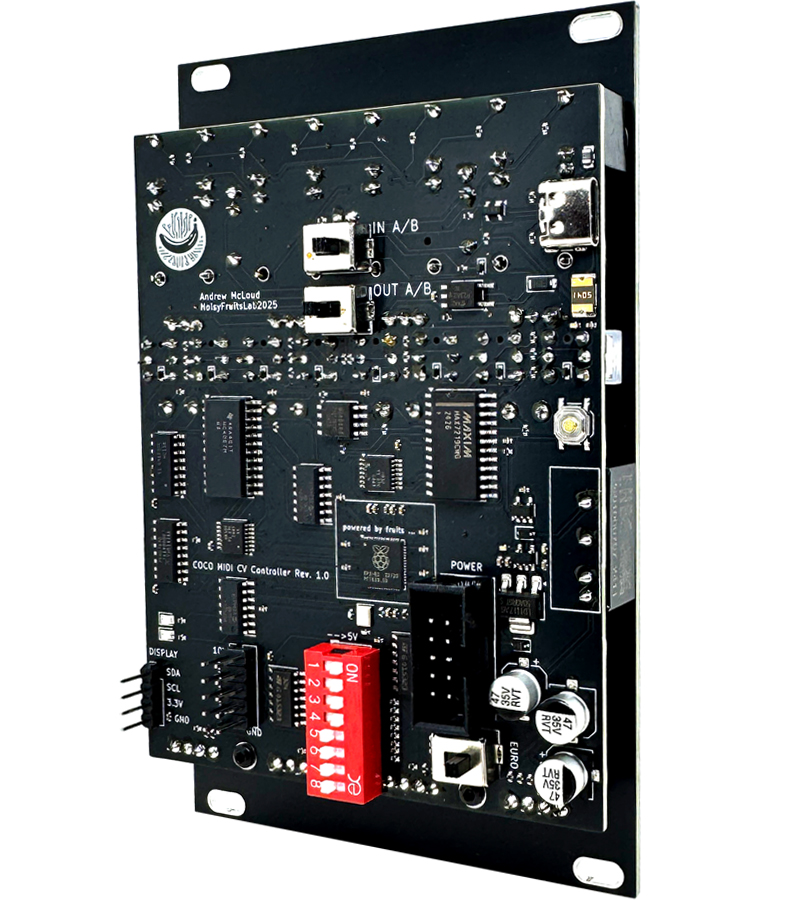

TRS DIN MIDI in & out with A/B switches on the backside
-
Web & Desktop Editor to modify all MIDI basedparameters and to create own presets
Web Editor Desktop App Factory Preset OpenDeck Github
16HP
Depth: 35mm
+12v 120mA
USB Power:
5V 120mA
Overvoltage protected
NOTE: the unit fully works with USB power, but there was no intention in powering it that way inside a rack.
CV outs:
Configurable with DIP switches on the backside
Expanders:
There are two additional pin headers on the backside for attaching a display or adding more channels, maybe in the future ...
MCU :
Raspberry RP2040
Firmware:
OpenDeck mini by ShanteaControls licensed under Apache 2.0
