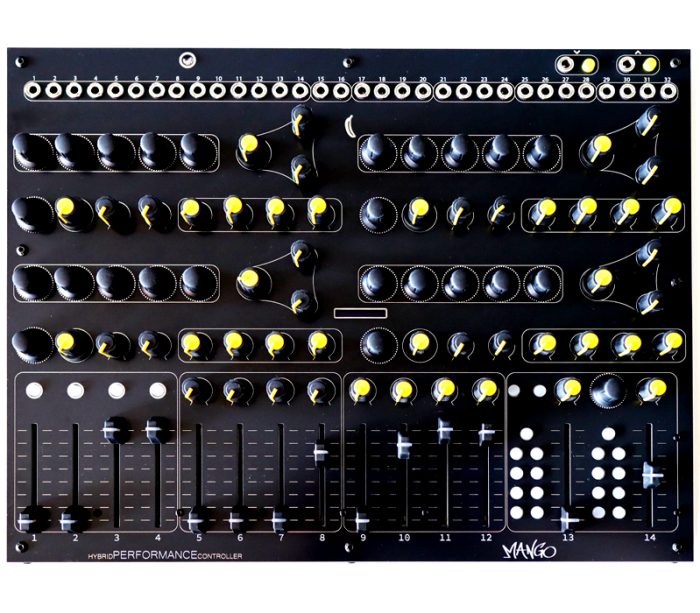

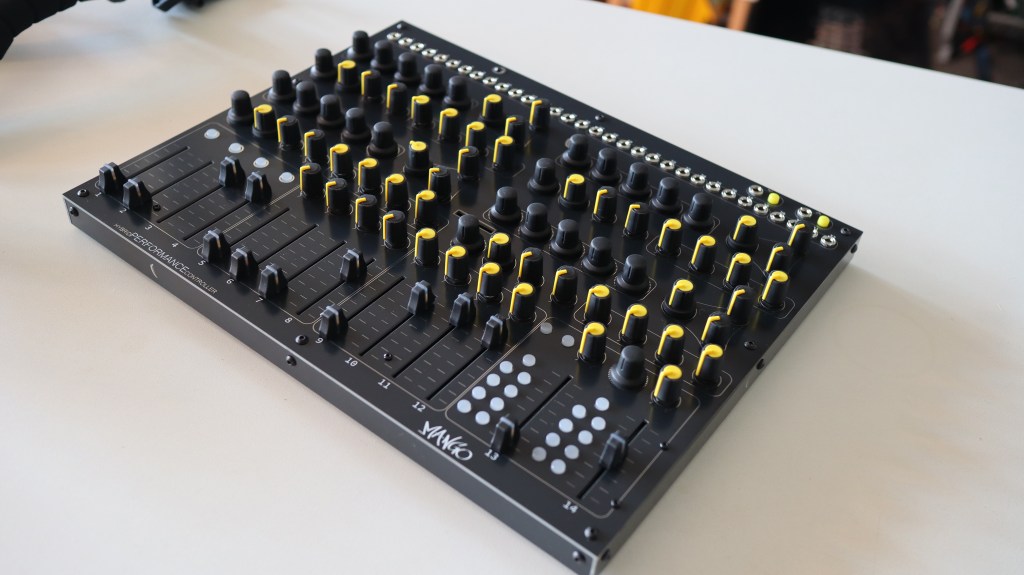

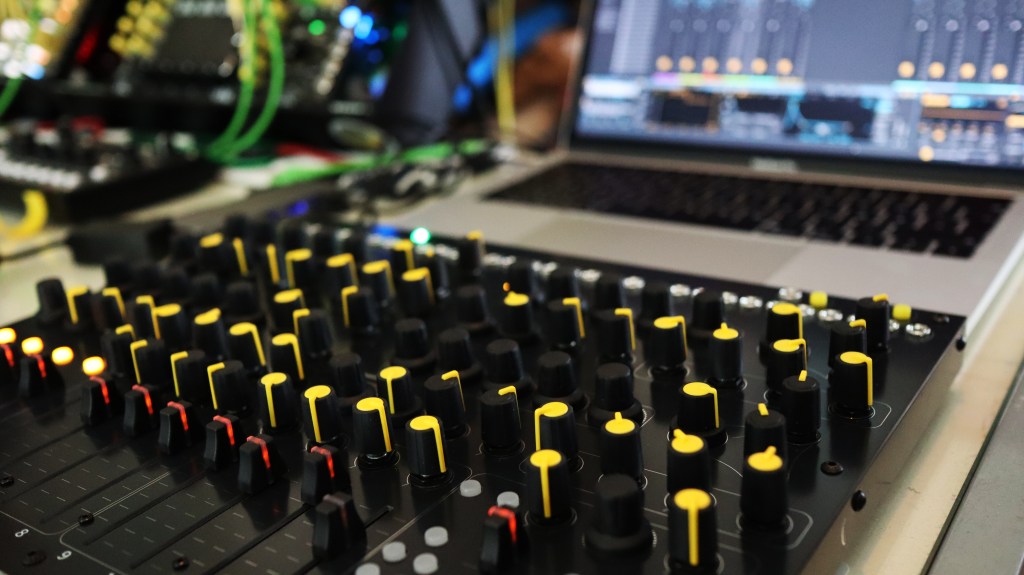

Mango is a hybrid MIDI & CV controller for desktop use, following the controller product line of "Coco", "Kiwi" & "Lemon".
Digital & analog control at one spot
Full focus on live performing with for example 4 synthesizers, 8 drum channels and 2 sub channels or FX controls.
141 adressable controls across LED faders, potentiometers, encoders and buttons

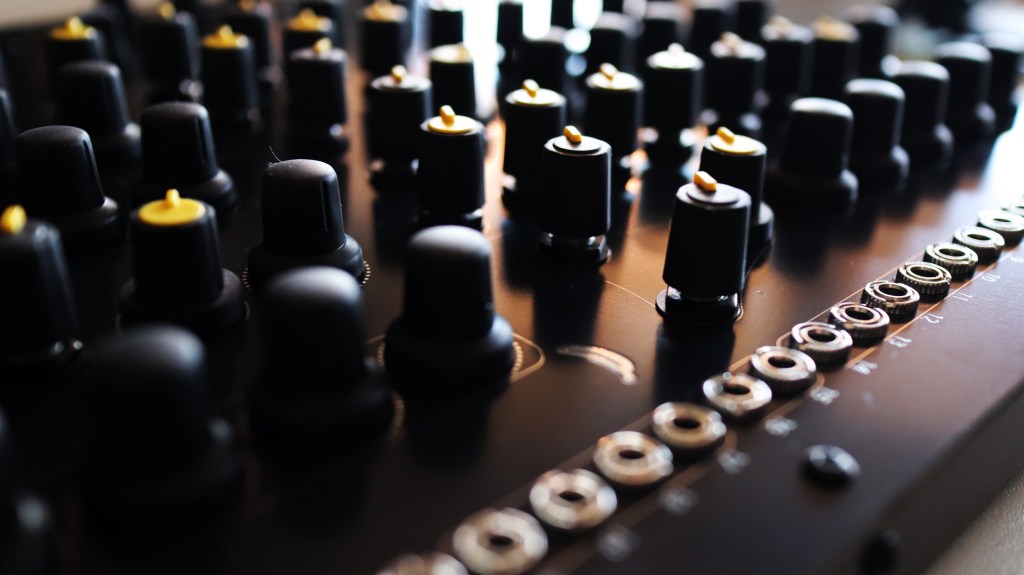

Modular synthesizer integration with 32 adjustable CV outputs for all faders and most of the potentiometers, covering a range from 0-5V or 0-10V

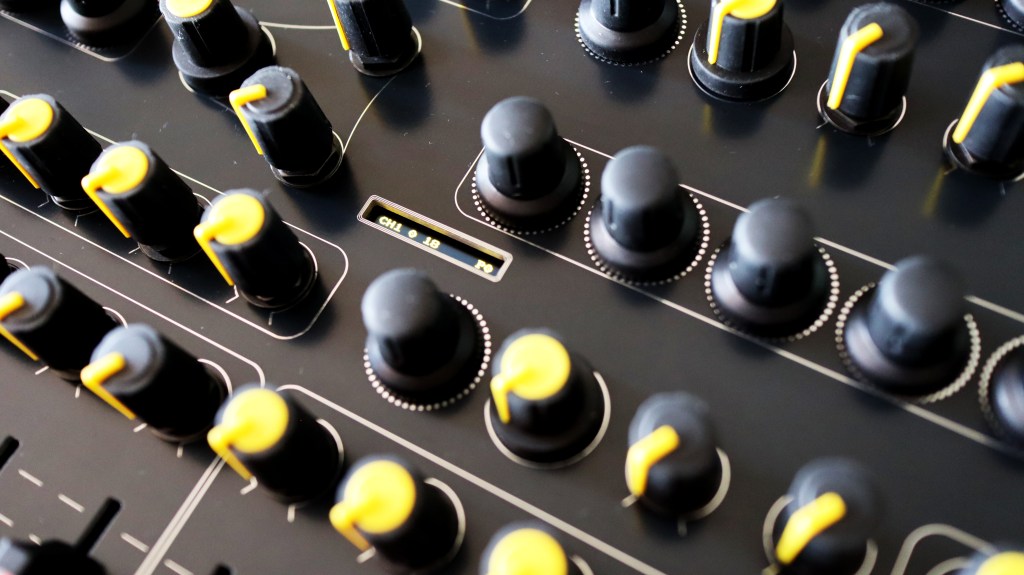

Slim size OLED display for precise value adjustments
Highly USB friendly with low current draw

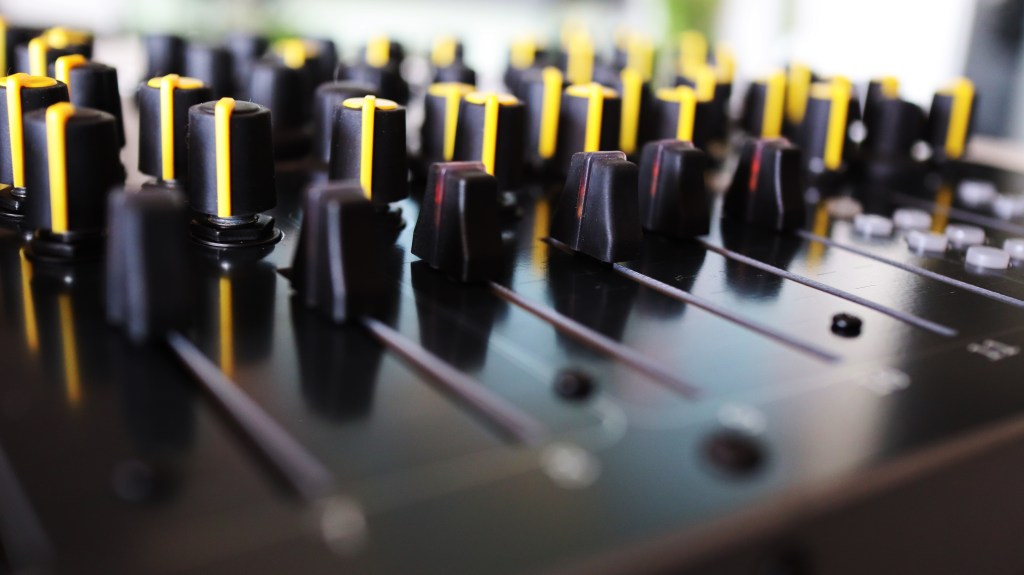

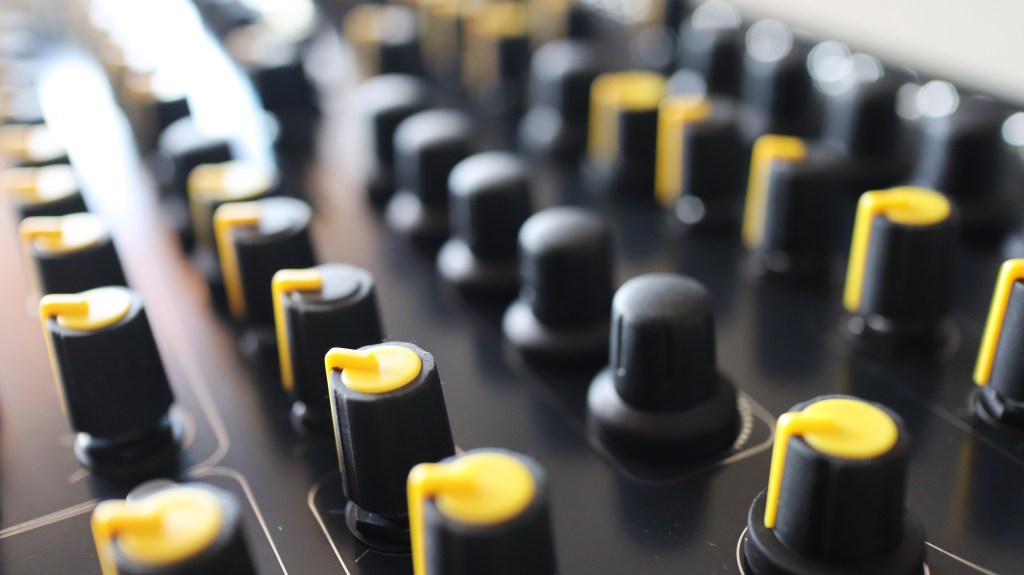

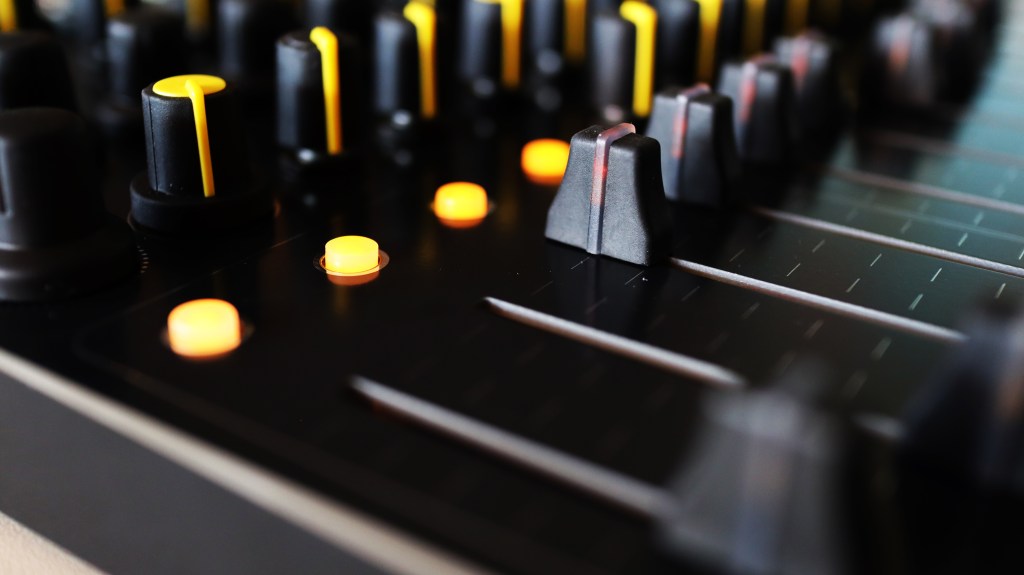

Equipped with quality Rogan Knobs, SIFAM Encoder & Slider Caps, Alpha Pots, Elektron style Encoders, Bourns LED Faders and momentary Low Profile LED Buttons.
Web & Desktop Editor to modify all MIDI based parameters and to create own presets

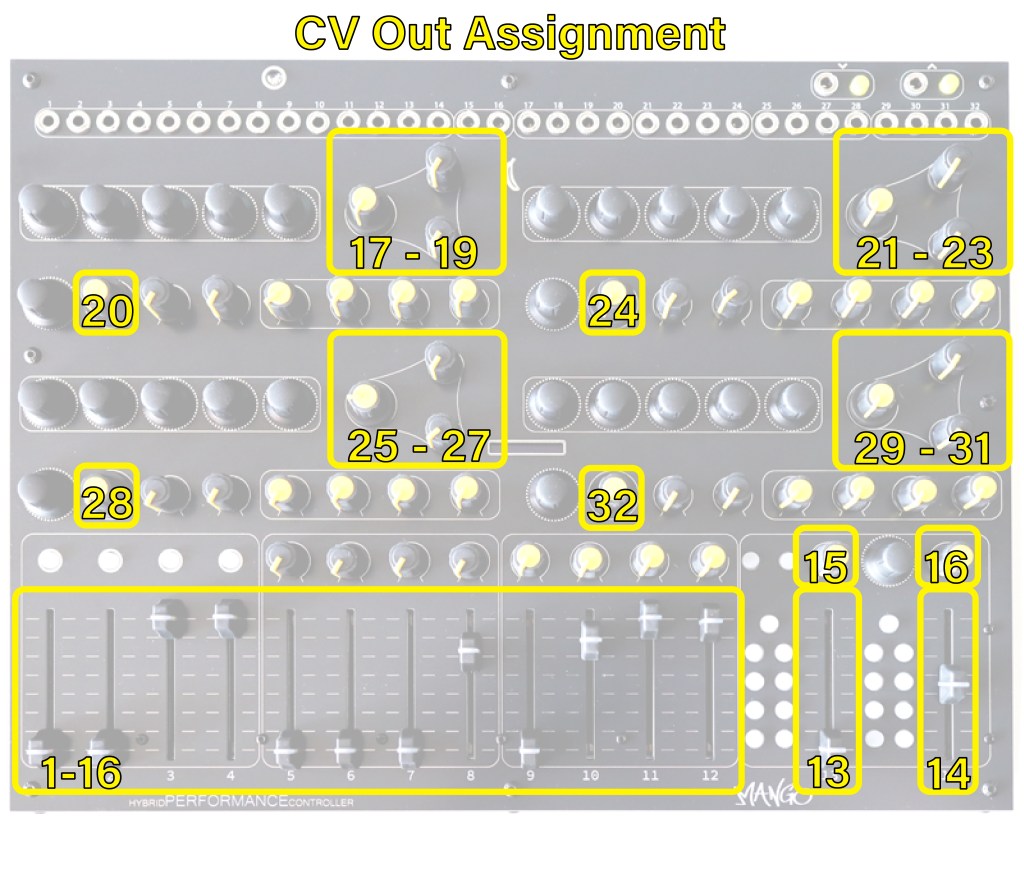

Covering most of the analog controls for CV out
https://youtu.be/HUsb8zGzR-Y
Technical specs:
Dimensions:
335 mm x 262 mm x 40
USB Power:
USB C 5V 350mA
CV outs:
Configurable with solder bridges on the backside of the mainboard
Pre configuration:
Fader: 0-5V
Potentiometer: 0-10V
MCU :
Raspberry RP2040
Firmware:
OpenDeck mini by ShanteaControls licensed under Apache 2.0
