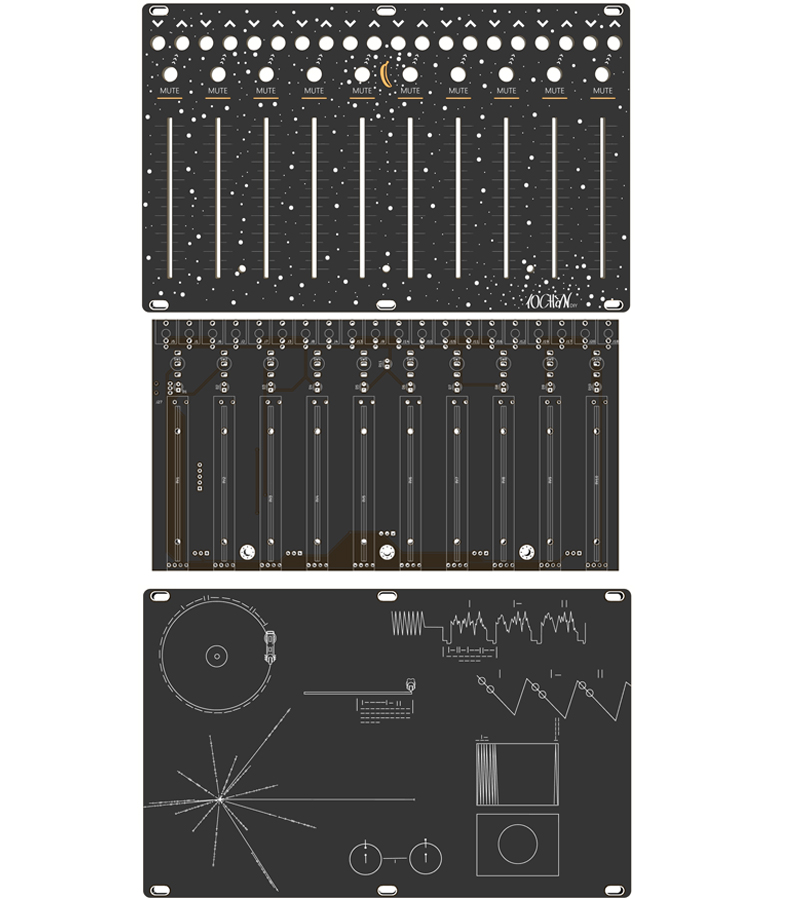

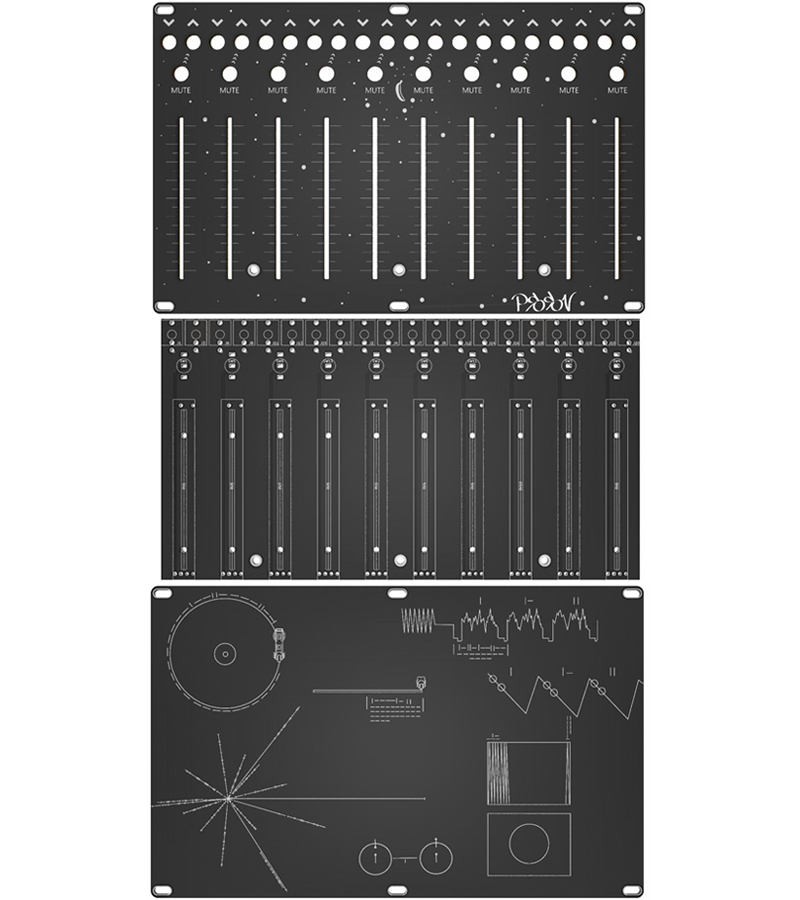

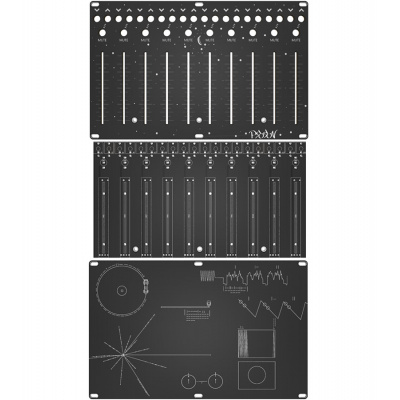

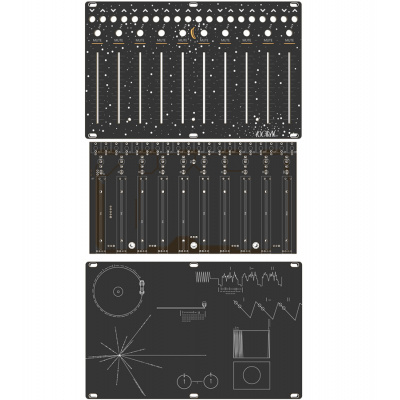

Panel & PCB only!
Limited Voyager Series.
10CHAN DIY is the simplified version of 10CHANultmt.
It´s sharing the same specs instead of vactrol mutes.
It looks and feels like a mixer, but it´s NOT mixing signals!

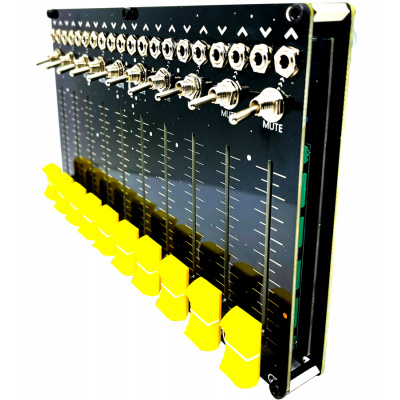

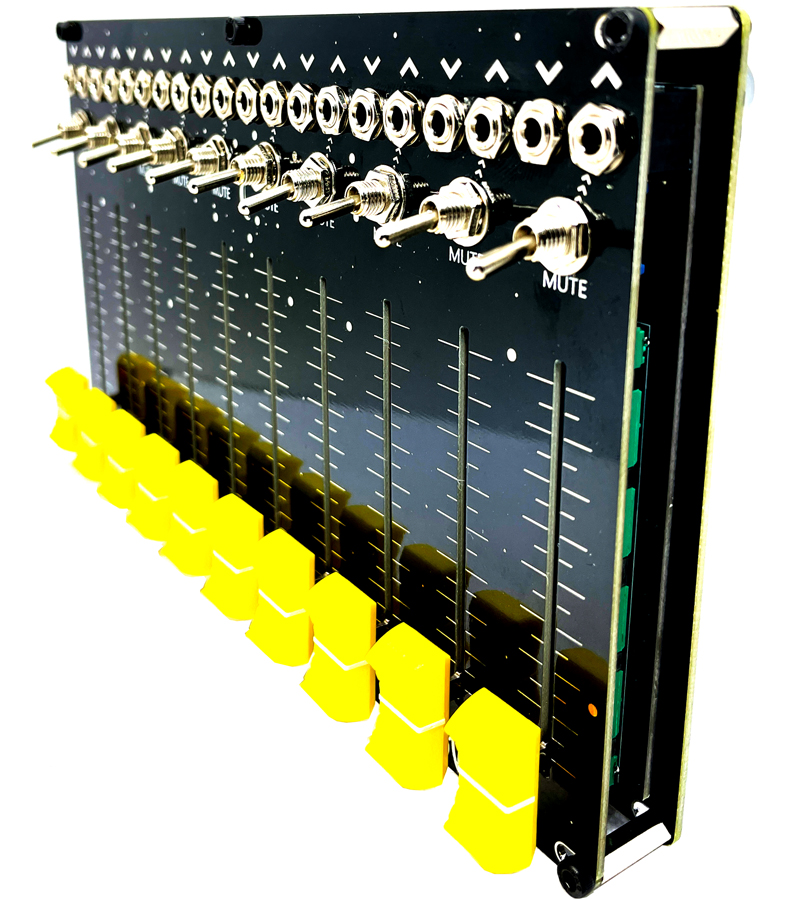

It´s a 10 channel faderbank that acts as attenuator or voltage source.
The voltage range of a fader pair can be defined on the backside via jumpers. (5V & 9V)
It´s made for audio and cv signals
With plugging a signal into an input the corresponding fader becomes an attenuator.
With no signal plugged the output becomes a voltage source that can be attenuated with the fader.

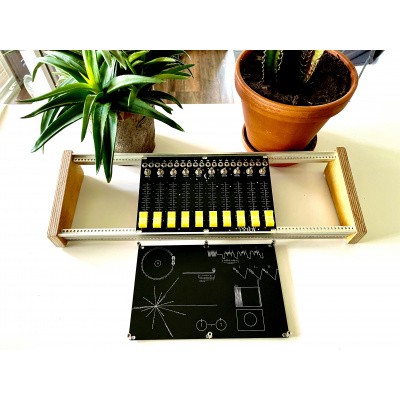

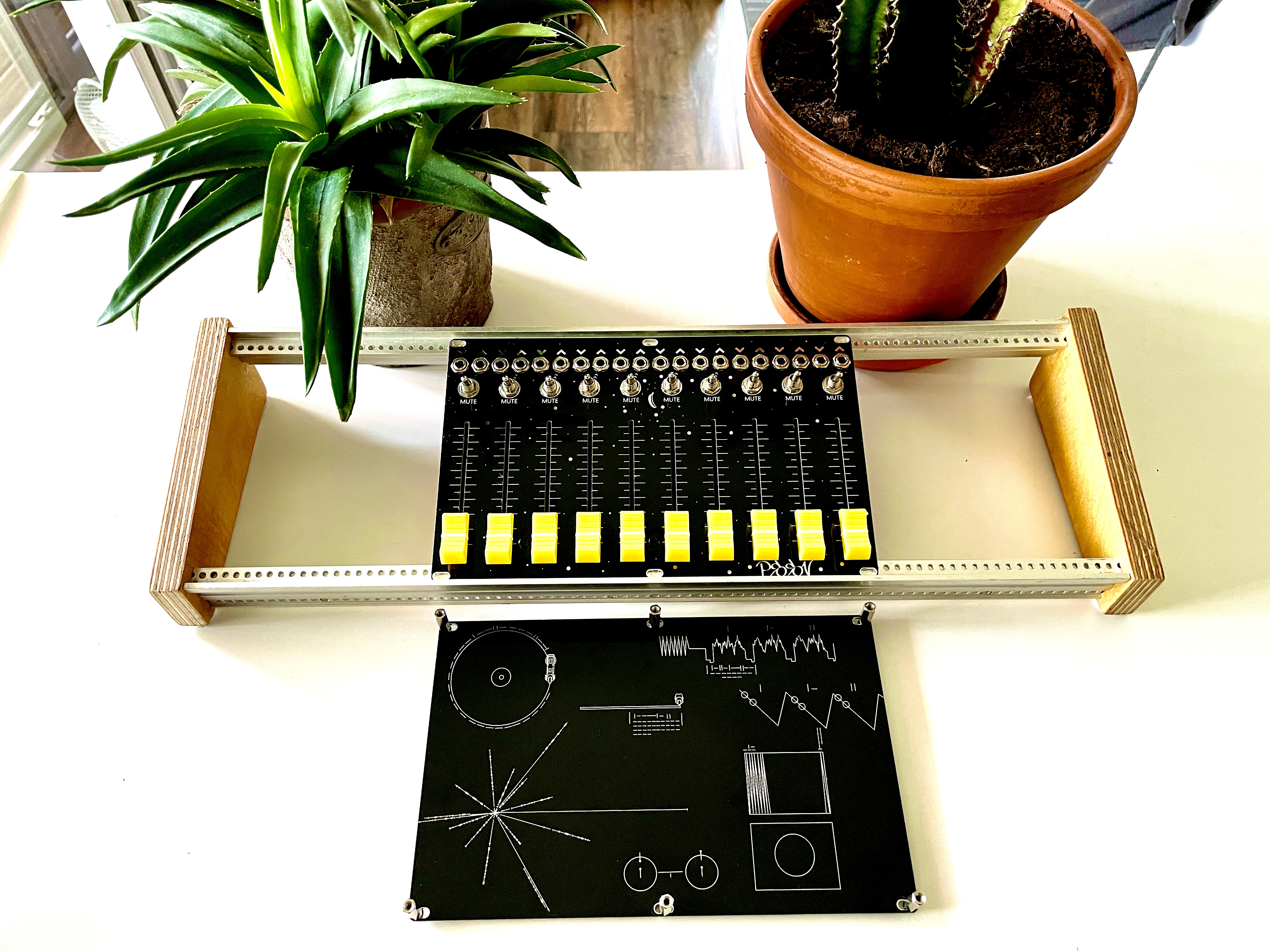

Ready for desktop use or unmount the baseplate to fit into an eurorack while getting a 40HP blank panel with unique graphics.
40HP
Depth: 25mm
Height (Desktop): 45mm
+12V 50mA (all Faders on)
