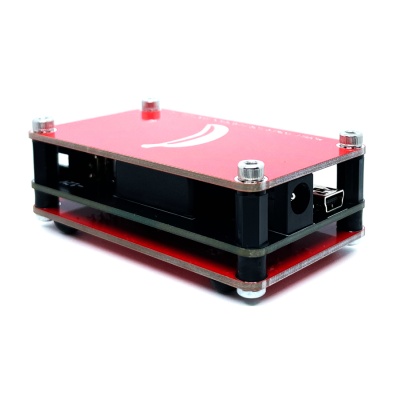

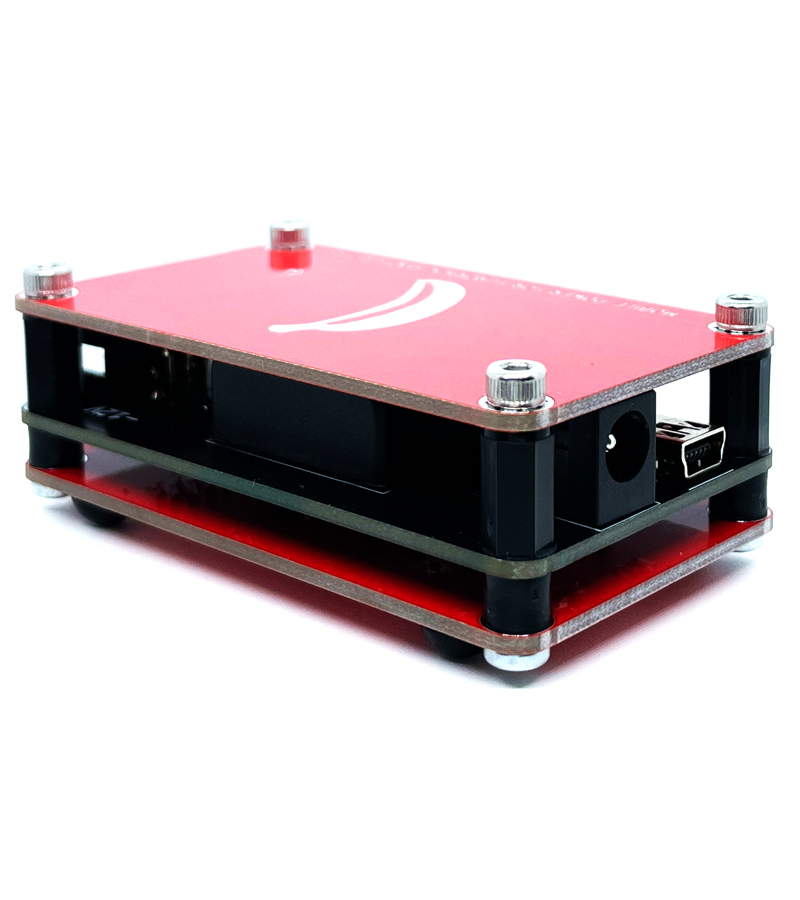

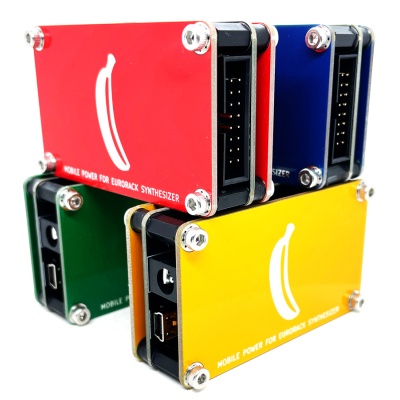

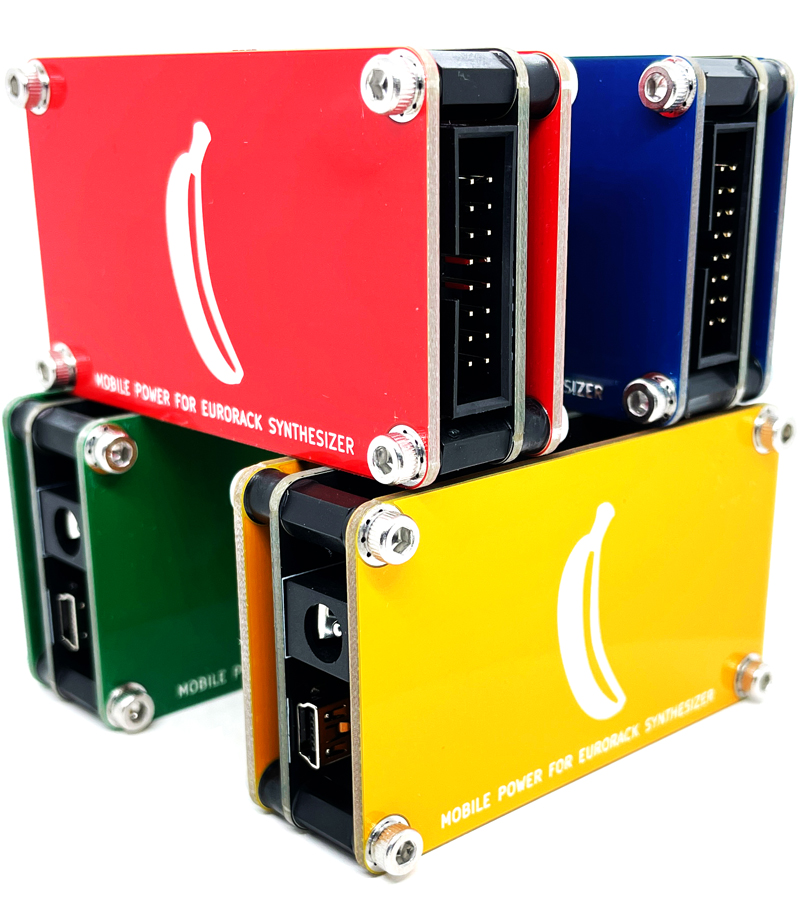

Superhandy mobile power for eurorack synthesizers in VCard size.

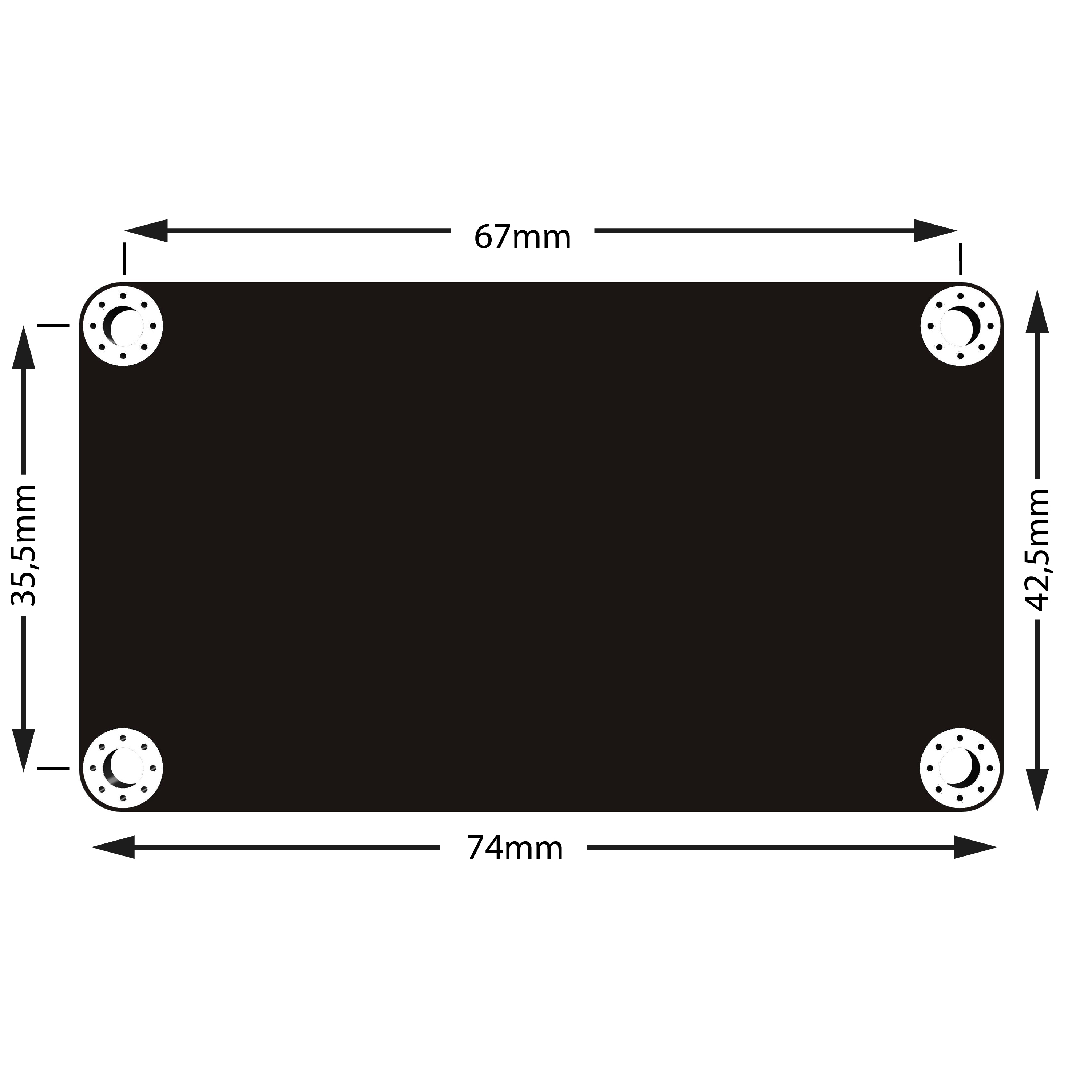

You can unmount the cover plates to fit into a small rack.
Inputs:
5,5mm DC 5-9V 1A Center Positive
Mini USB (Expecting 1A !!!!!!!!)
2 Pin Header 5-9V 1A
NEVER POWER FROM A PC OR MOBILE PHONE. This product needs juice and can damage your equipment!

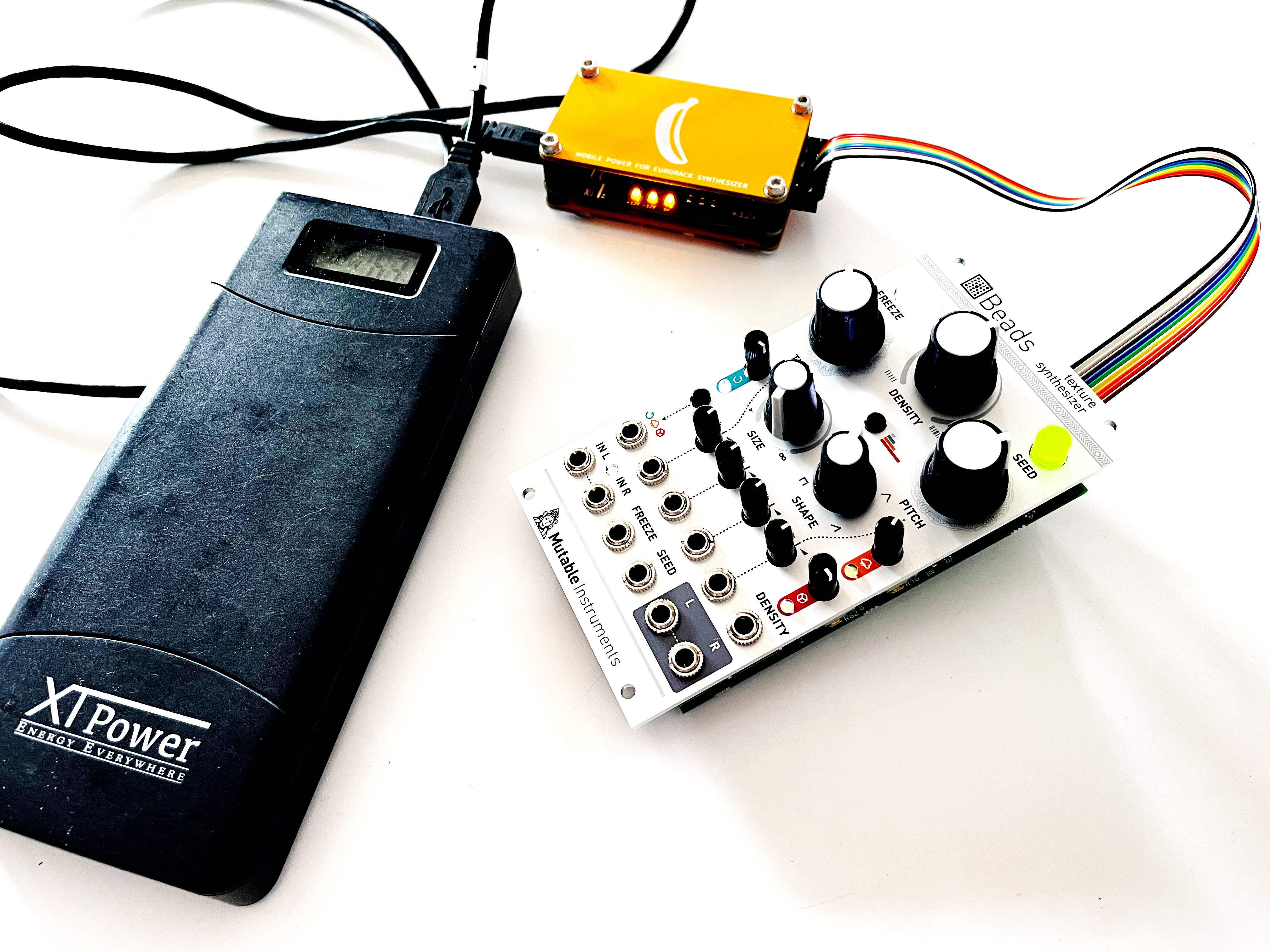

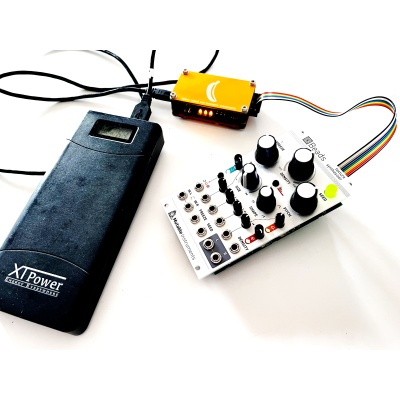

Best is a power bank with minimum 1A output.
Outputs:

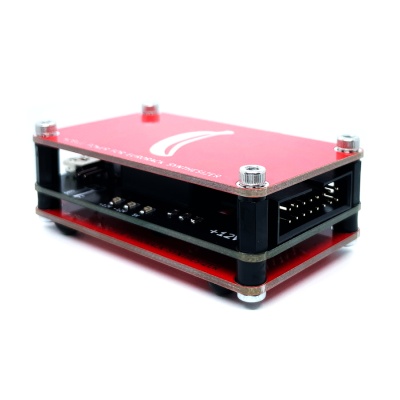

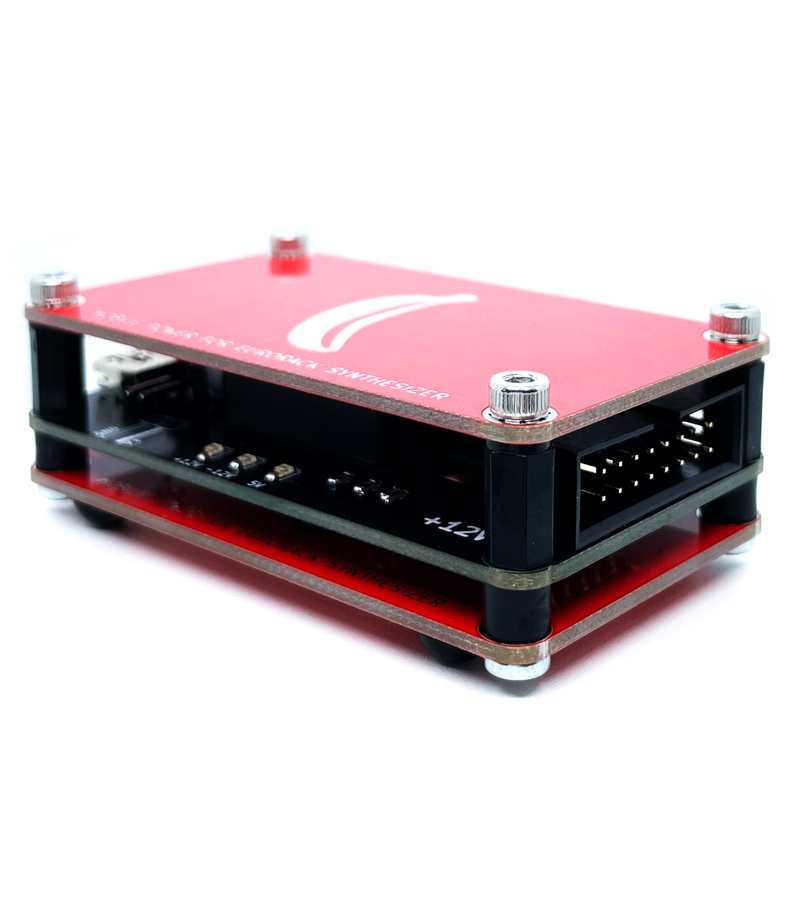

Eurorack 16 Pin Header
+12V 400mA
-12V 400mA
5V 400mA (sharing with +12V)
Protections:
Short Circuit (Continuous)
Overload
Over voltage
Input under voltage
Notes:
Please be adviced you can NOT power an endless rack of modules! The unit will simply not work or blink.
Sometimes it doesn´t start if the connected module"s" have a sharp start up current peak. I´m experiencing this mostly with analogue circuits like classic drums, cause they fire one time when plugging power.
