MS20 Filter DIY

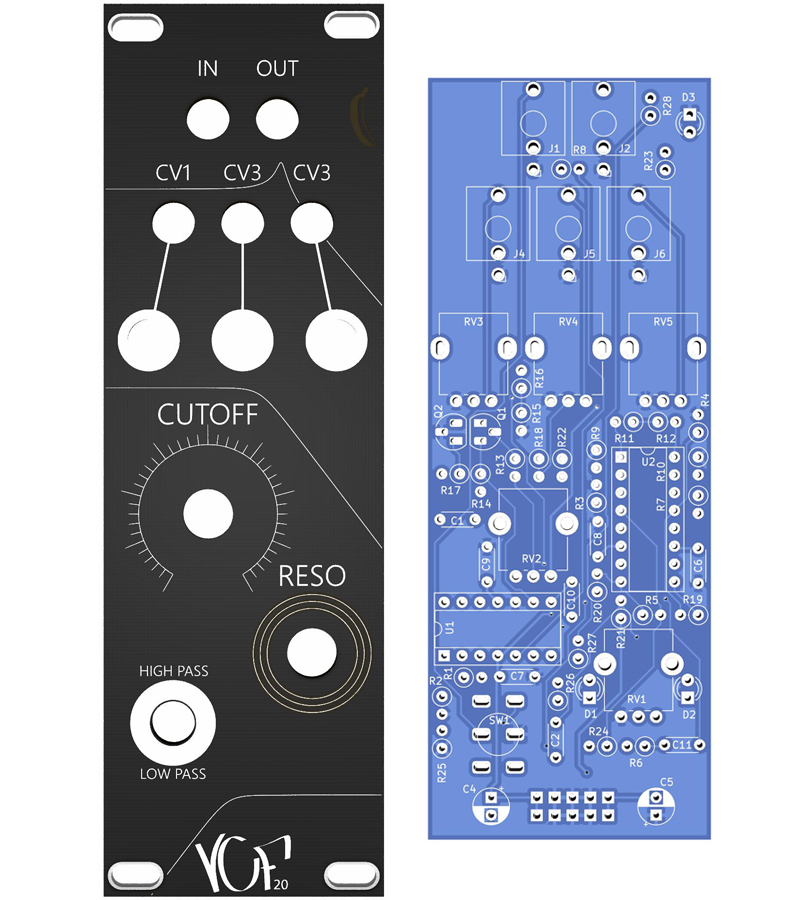

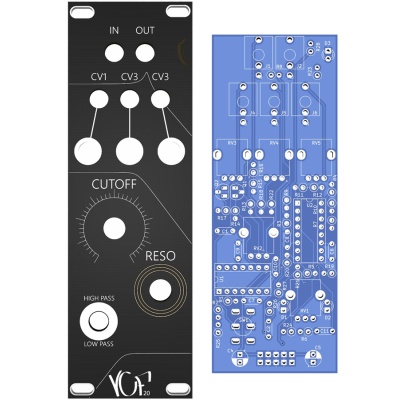

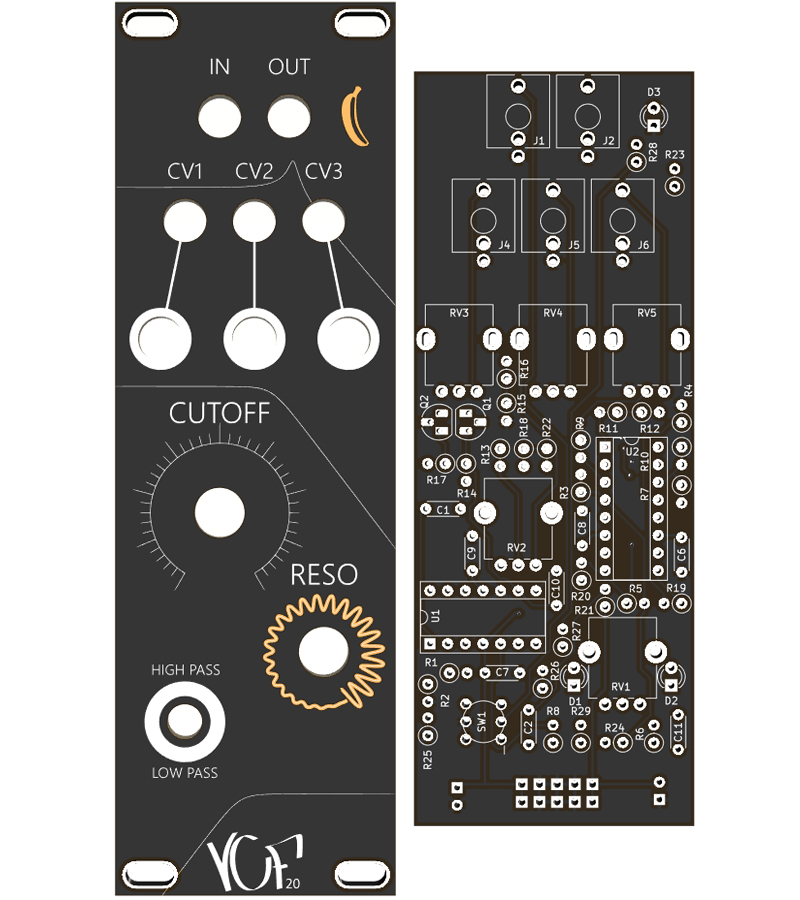

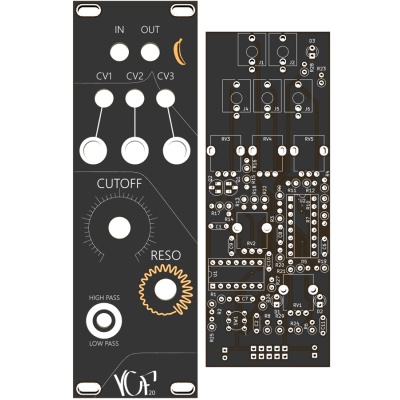

Panel &PCB only!
OTA based Filter with low pass, high pass and 3 CV ins.
It´s mostly based on the original schematic with some level adjustments and a switch for the modes.
It does have a very gritty, screamy and unstable character which made it pretty famous.
After about 50% of resonance the madness begins 🙂 It goes into self oscillation but don´t expect proper tuning stability.
It is simply a very experimental piece of gear and if i should describe it with some words:
It sounds like a pissed and wet cat 😀
Check the full video to make sure it fits your taste.
+12V – 12mA
-12V – 11mA
