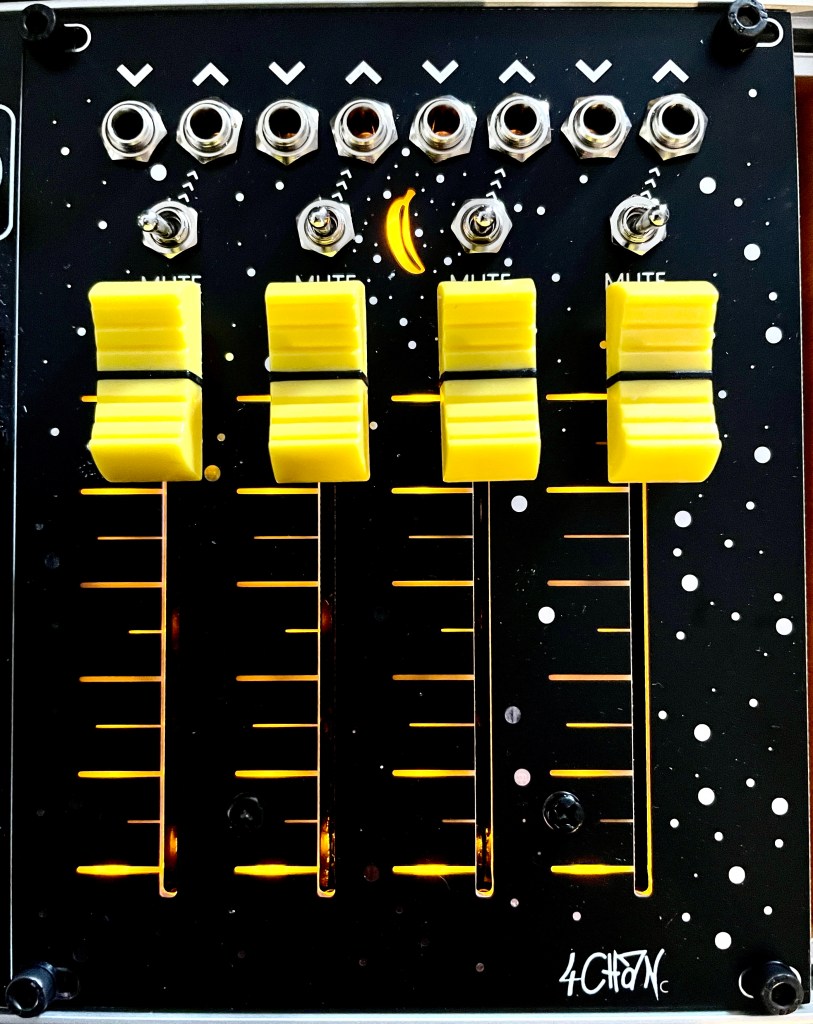

4CHAN C
"C" stands for control.
It´s a 4 channel voltage source, attenuator / faderbank with illuminated faders and mute switch.
Each channel gives a 0-5V or 0-9V output when nothing is plugged into an input.
With plugging in a signal the faders act as attenuators, suitable for audio or CV.

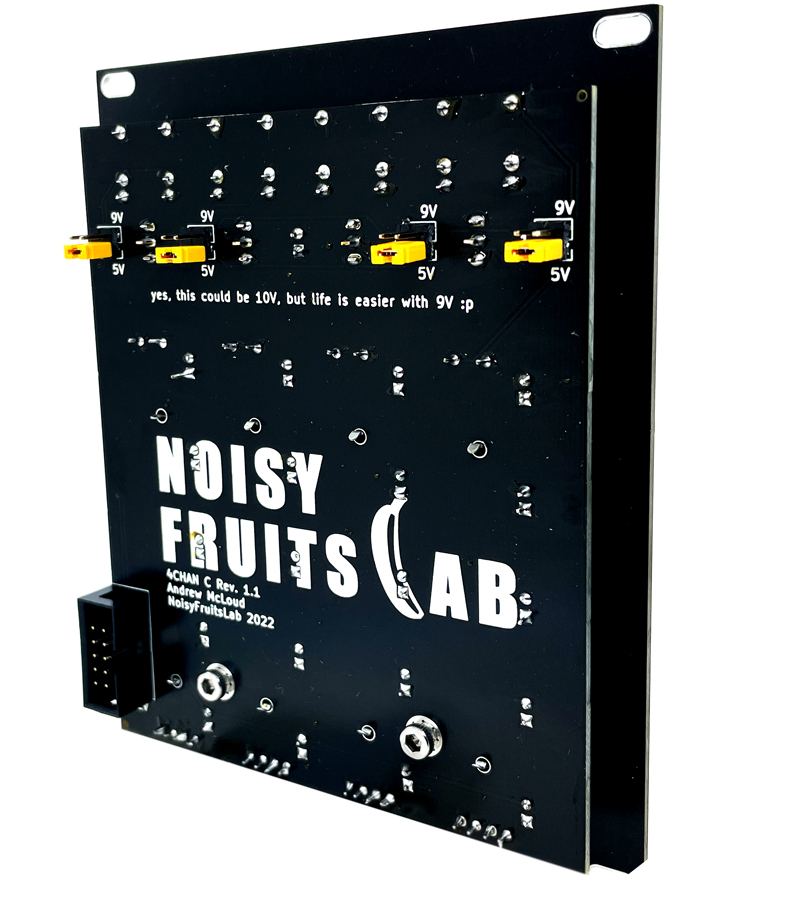

Pretty similar to its big brother 10CHAN with one major upgrade, the voltage range can be set on
the backside via jumpers.
20 HP
Depth: 35mm
+12V 39mA
-12V 0mA
5V 0mA
