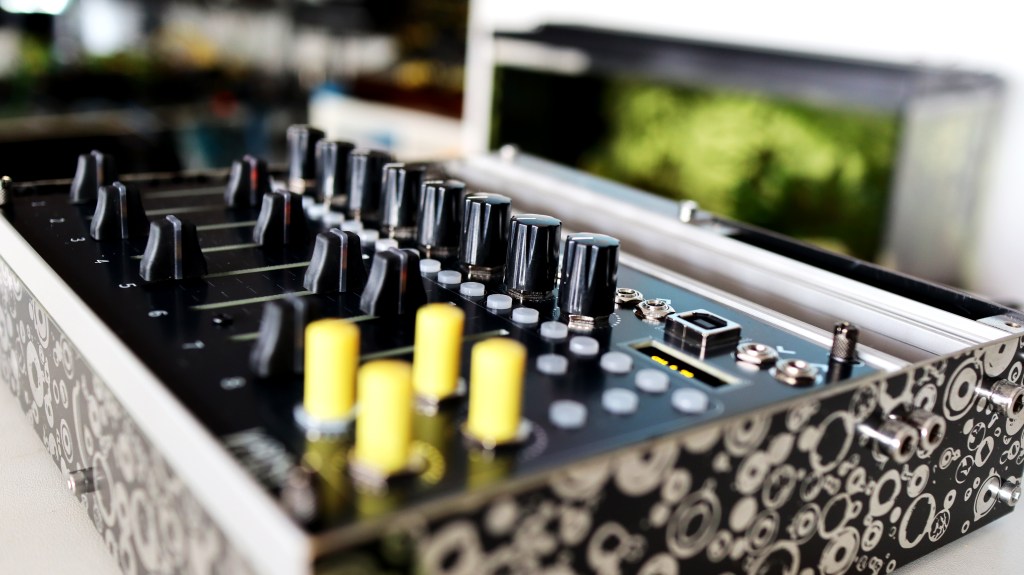

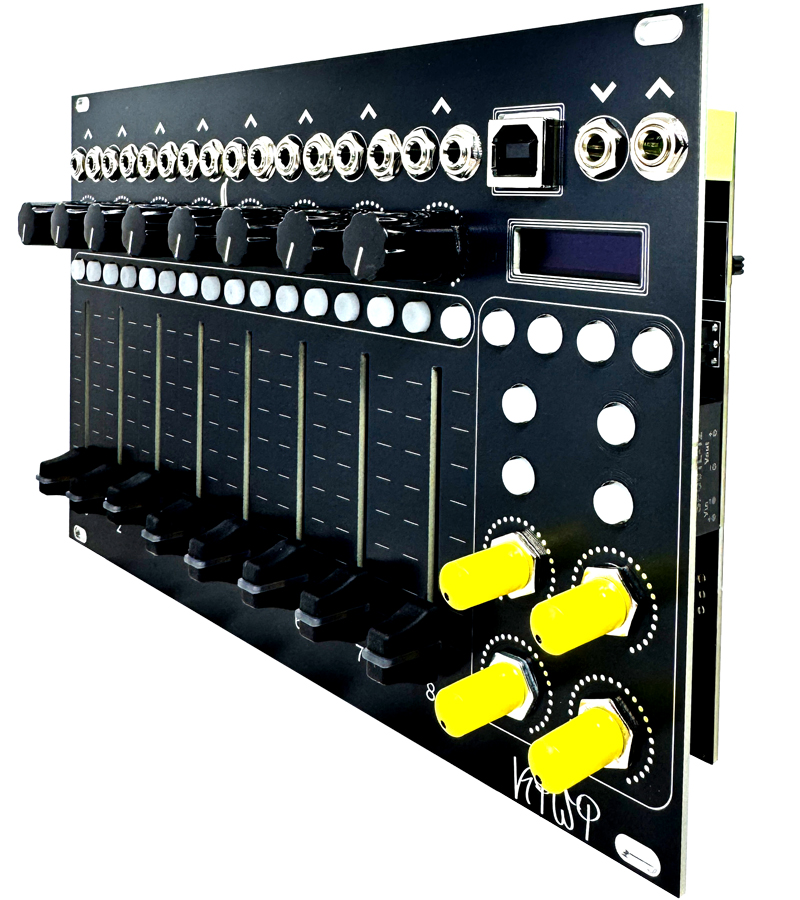

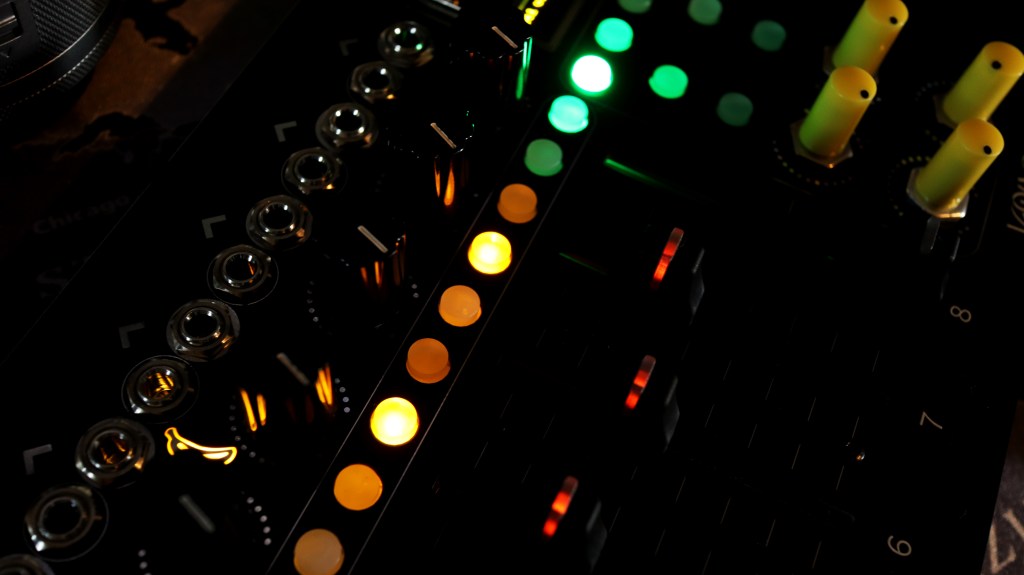

KIWI is a flexible Eurorack or standalone MIDI & CV controller
A fruity salad of bananas, raspberries & kiwis
Digital & analog control at one spot

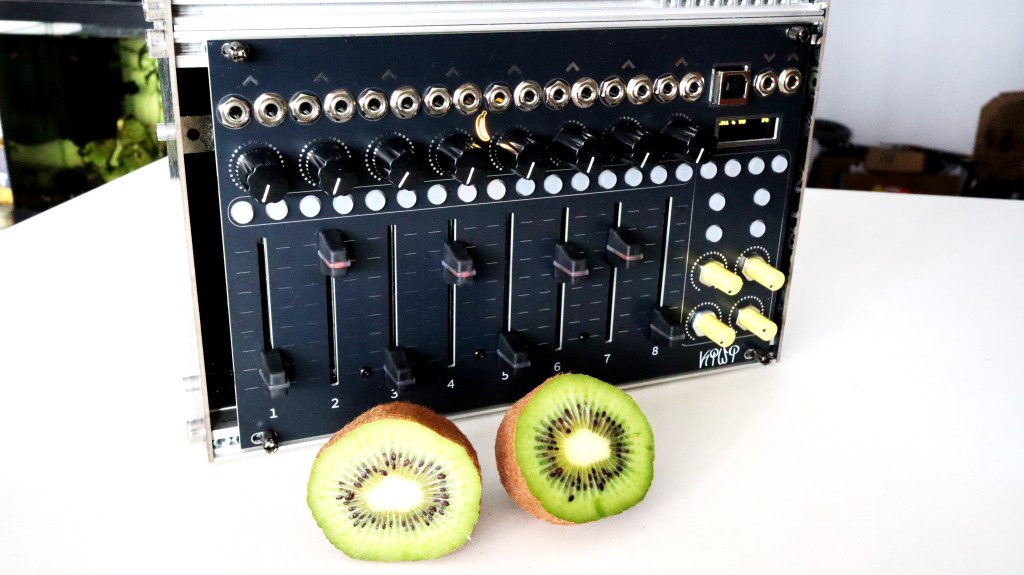

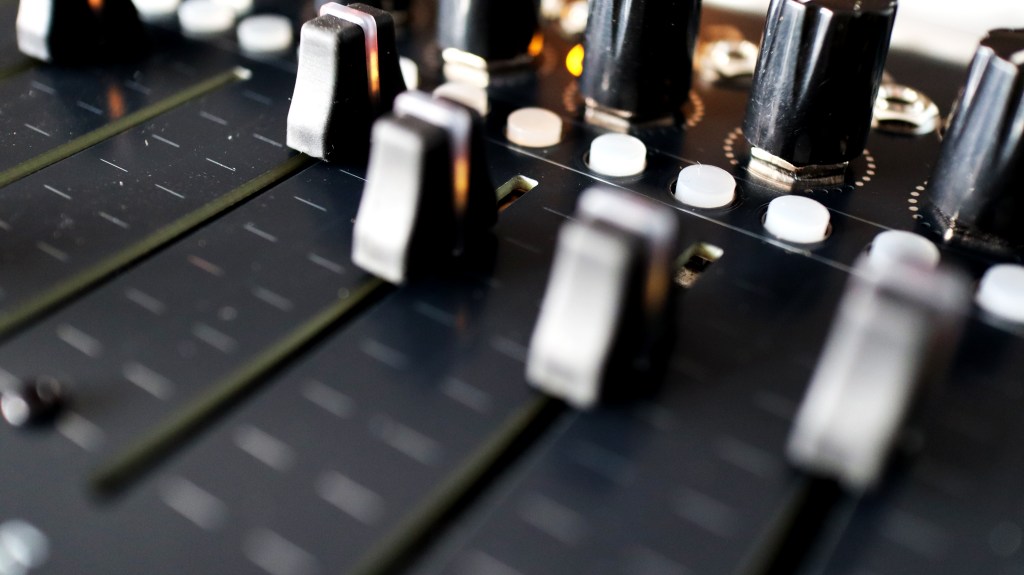

8 channels with LED faders and potentiometers
Precise CV out for each fader and potentiometer
Fully adressable buttons & LEDs
Protected USB B connector

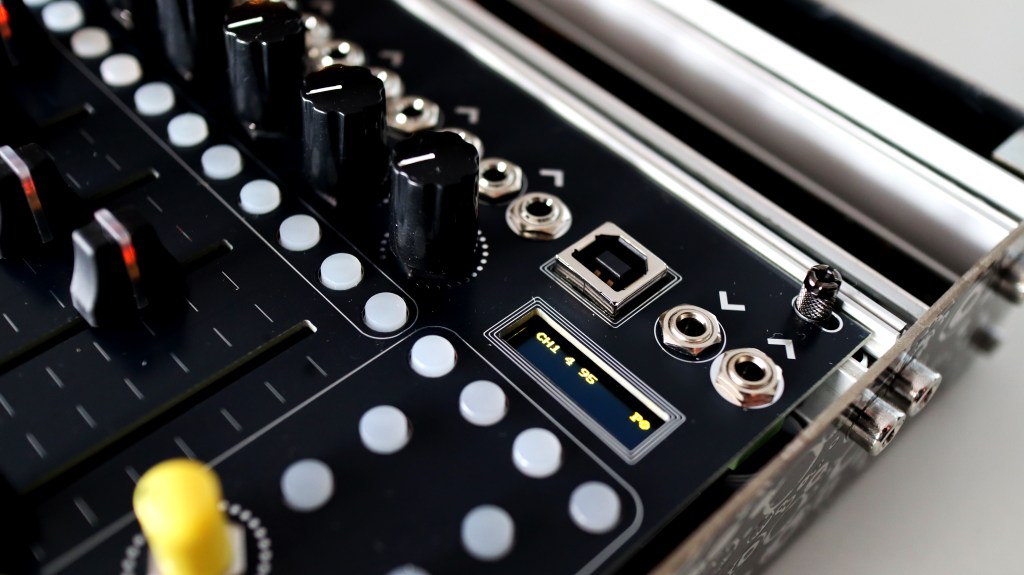

OLED display for setting accurate values
TRS DIN MIDI in & out
Super stable and accurate CV outs

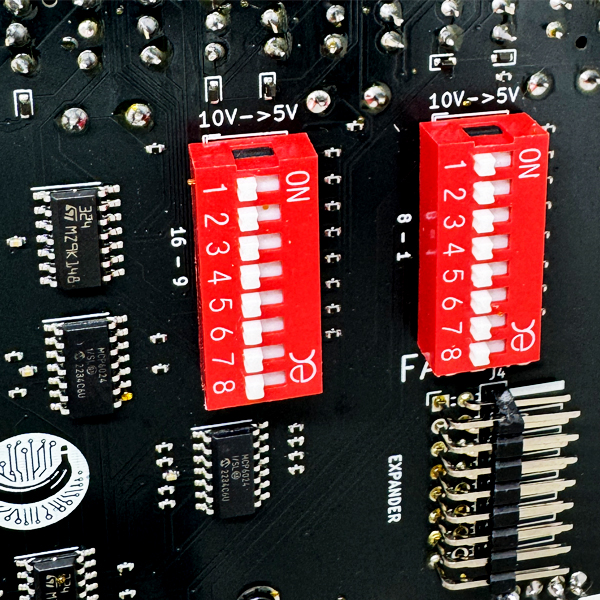

Choose between a CV range of 0-5V or 0-10V by DIP switches
A/B MIDI in & out switches
Eurorack or USB power switch

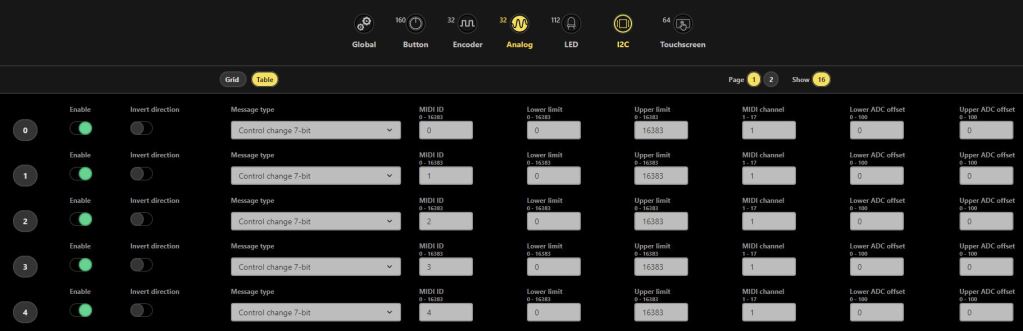

Web & Desktop Editor to modify all MIDI based parameters and to create own presets.
Technical specs:
40HP
Depth: 22mm
USB Power:
5V 215mA
Overvoltage protected
Eurorack Power:
+12V 193mA
-12V 0mA
5V 0mA
Polarity protected

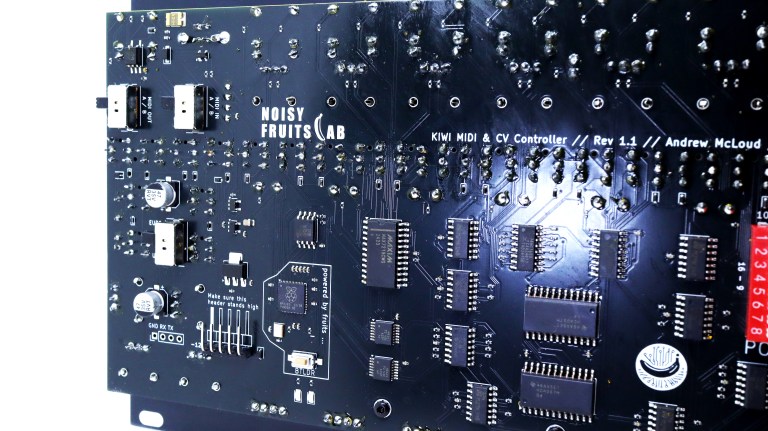

MCU : Raspberry RP2040
Firmware:
OpenDeck mini by ShanteaControls licensed under Apache 2.0
