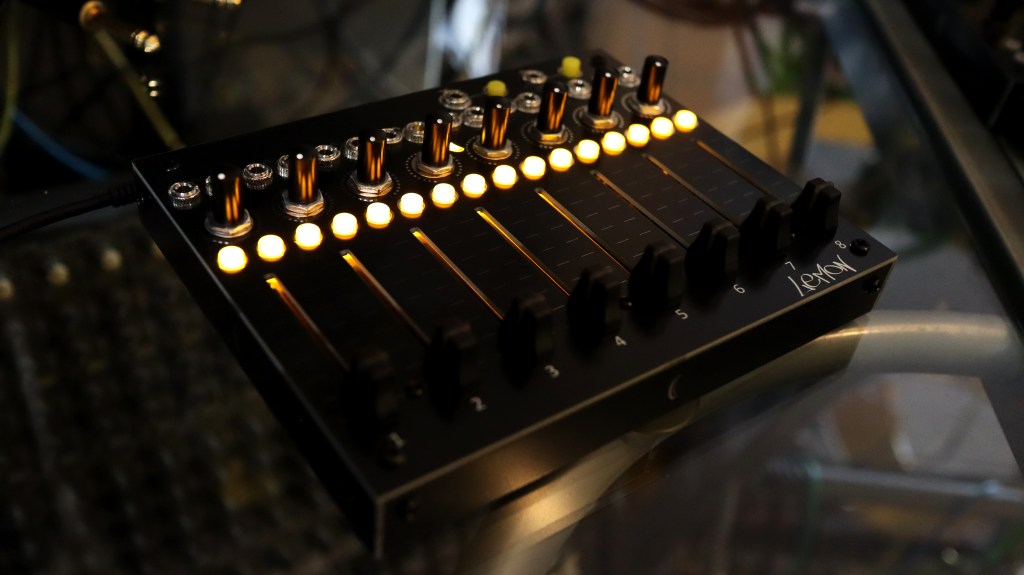

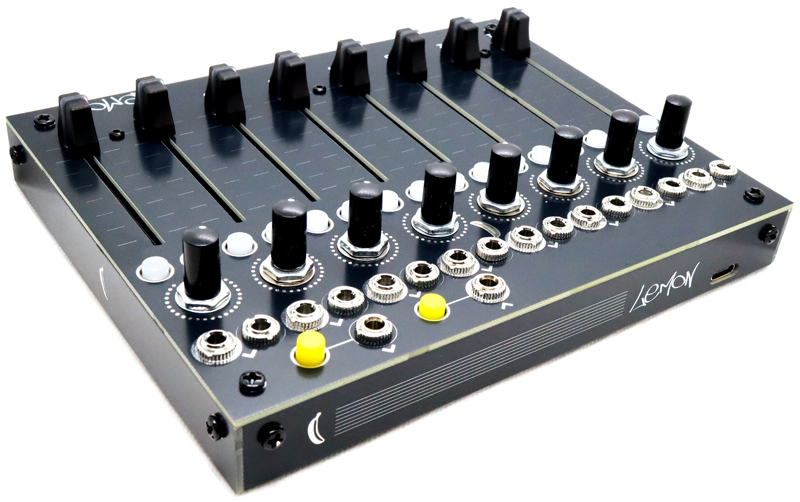

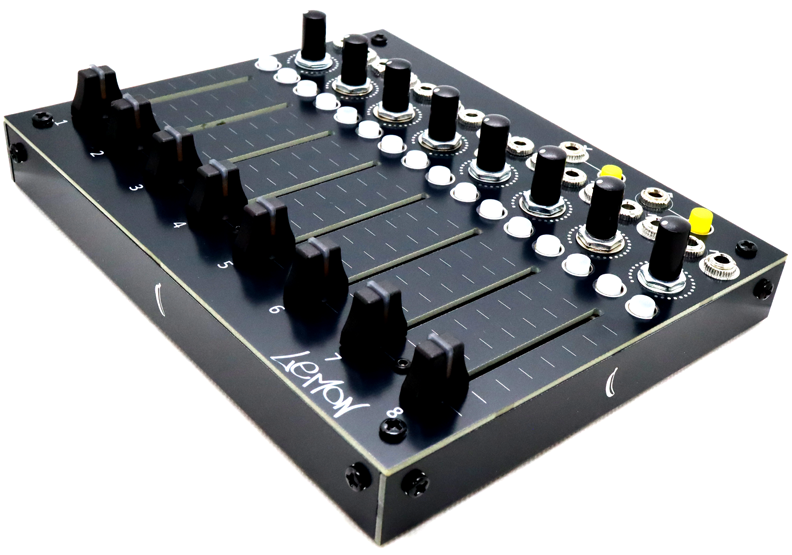

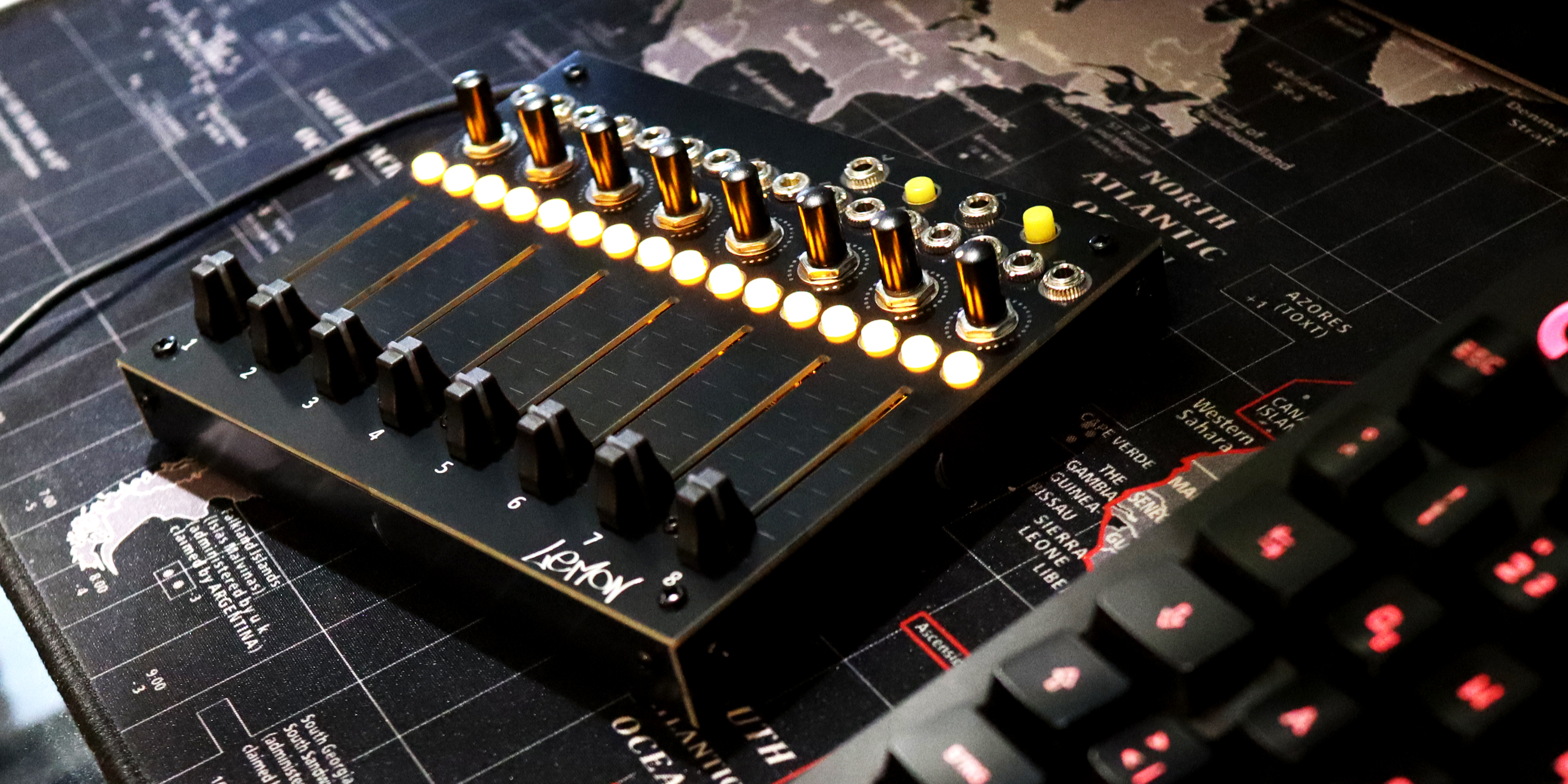

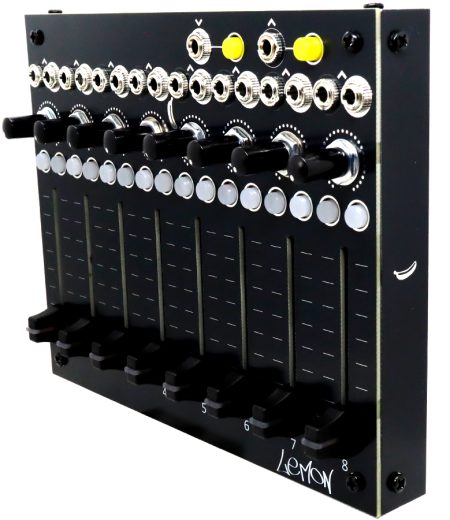

LEMON is a flexible desktop MIDI & CV Controller
A fruity salad of bananas, raspberries & lemons
Digital & analog control at one spot
8 channels with LED faders and potentiometers
Precise CV out for each fader and potentiometer
Fully adressable buttons & LEDs
Protected USB B connector.
TRS DIN MIDI in & out with A/B switches on the front

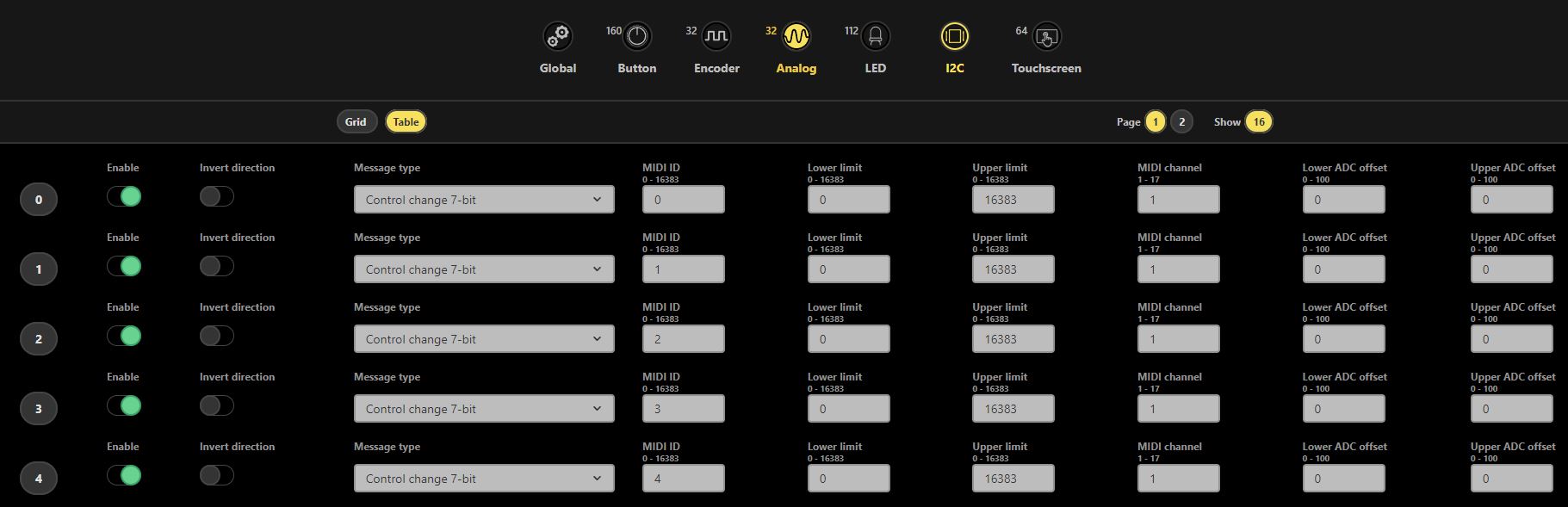

Web & Desktop Editor to modify all MIDI based
parameters and to create own presets
https://youtu.be/Jy3eAy5M0e0?si=NhRdoNLAN5Iz_c7eTechnical specs:
Dimensions:
165mm x 130mm x 40 ( 32HP )
USB Power:
5V 215mA
Overvoltage protected
iOS & Android plug & play
CV outs:
Configurable with solder bridges on the backside of the mainboard
Pre configuration:
Fader: 0-5V
Potentiometer: 0-10V
MCU :
Raspberry RP2040
Firmware:
OpenDeck mini by ShanteaControls licensed under Apache 2.0
Web Editor Desktop App Factory Preset OpenDeck Github
