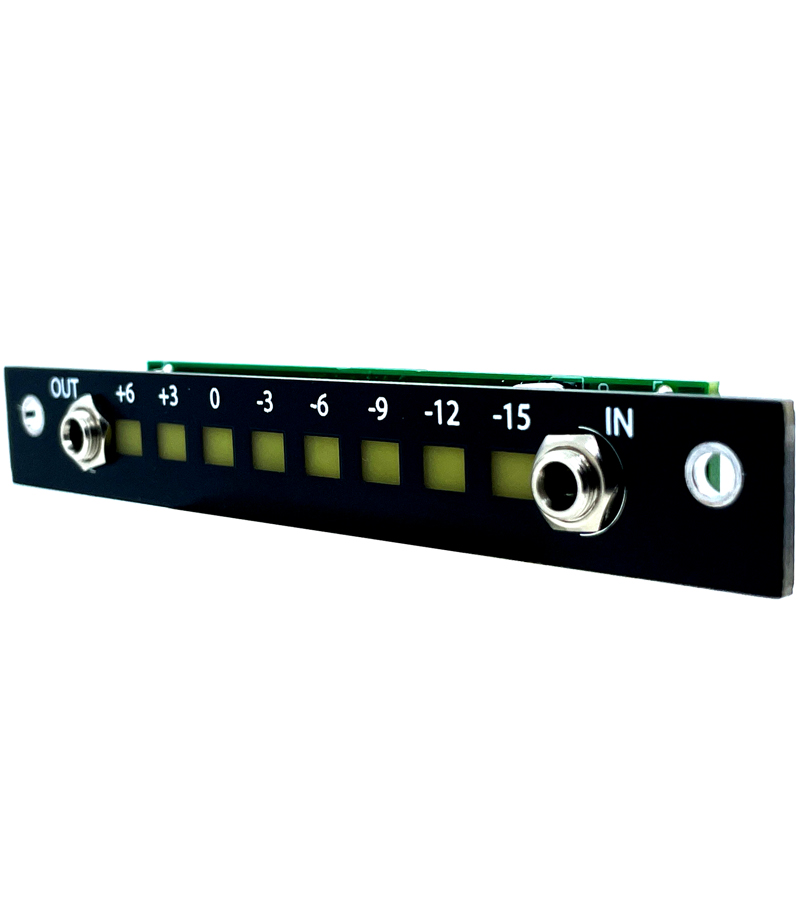

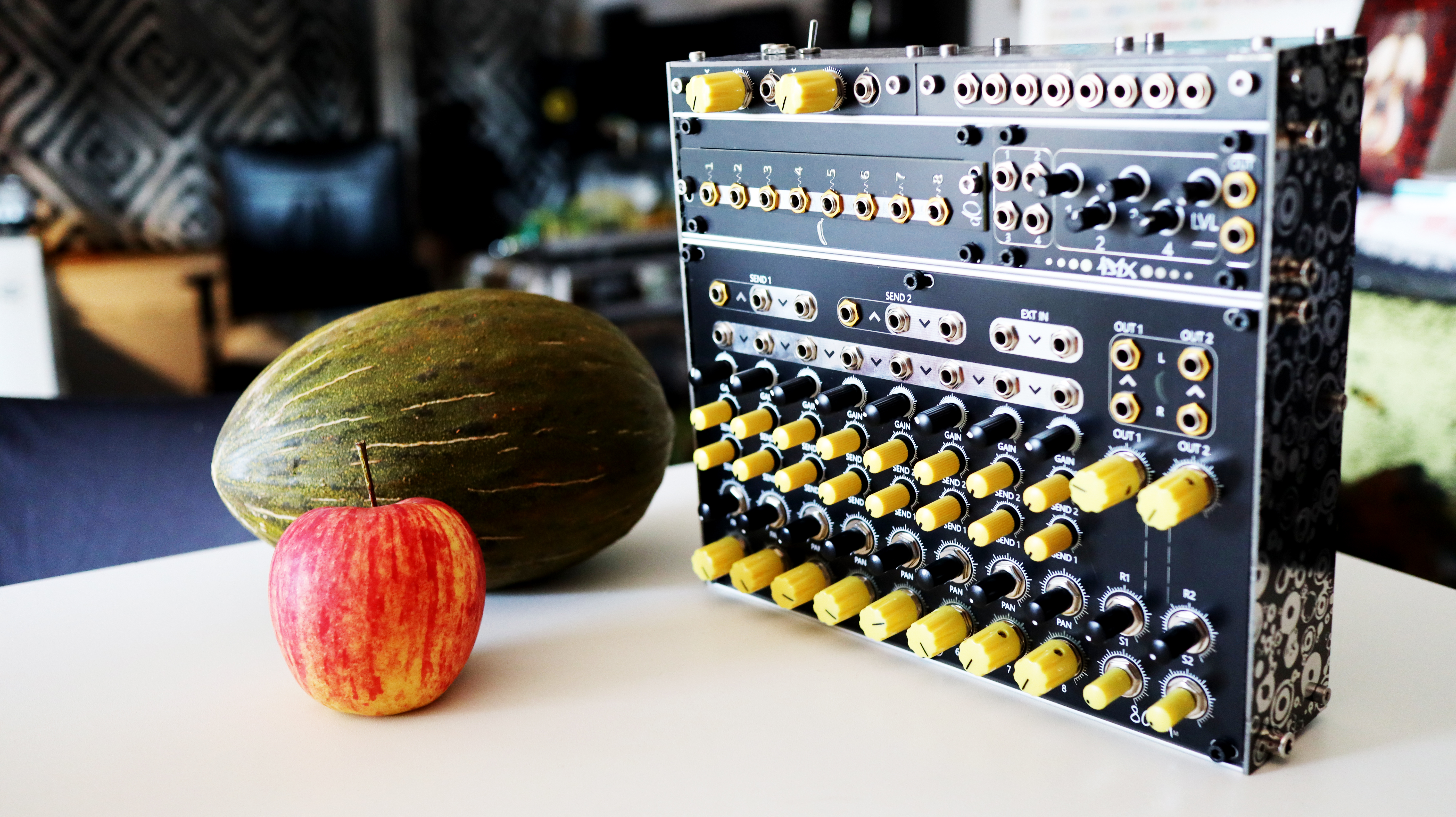

42HP DIY case with a 3U, 1U and a mini module row called "seedlings".
It´s made out of 1,6mm PCB material with silver metallic graphics and screwed together with12mm blocks and M3 screws.

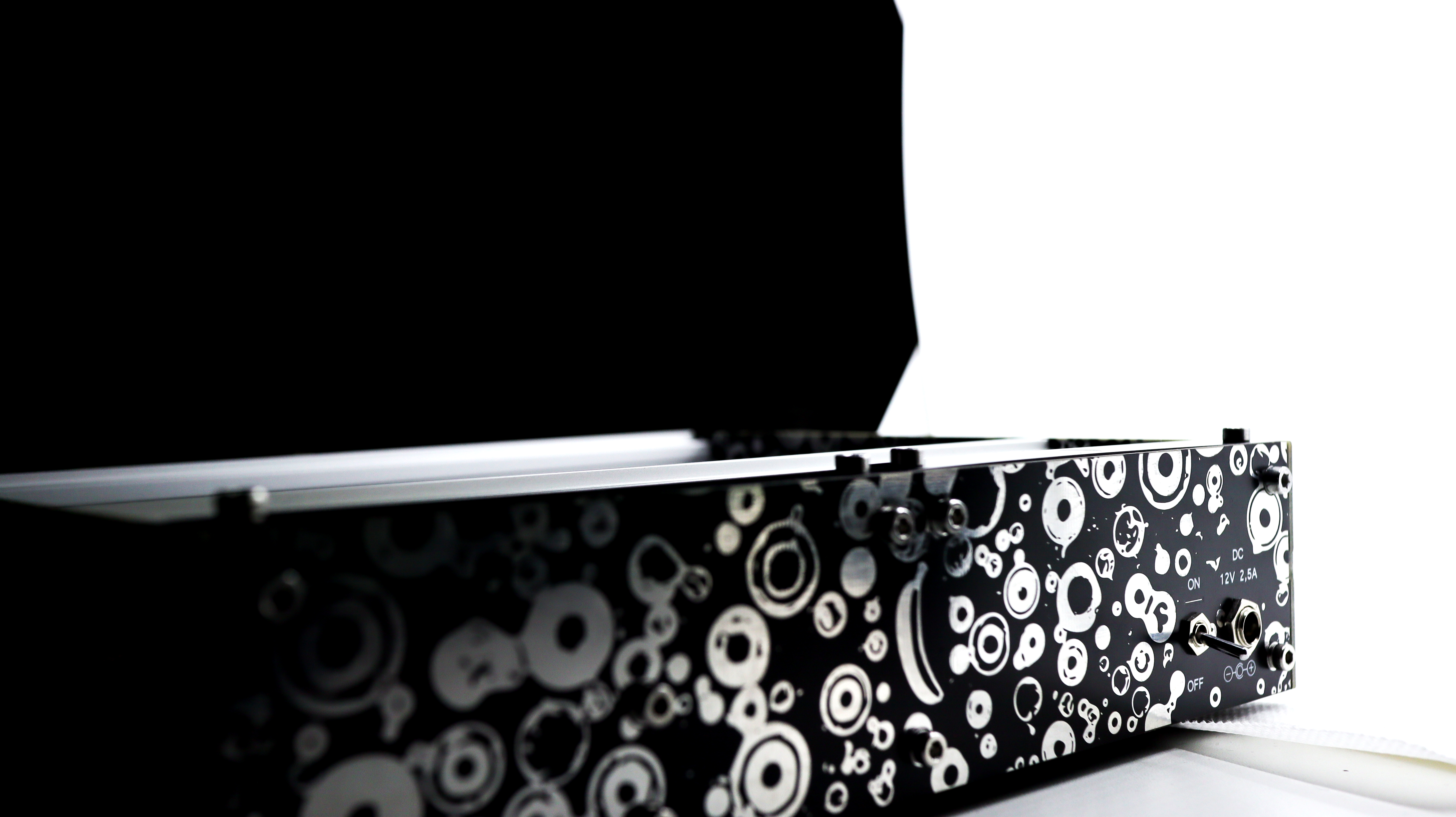

On the backside is a power switch, 5,6mm DC Jack and a power LED.
The power board is populated with 6 Eurorack power headers and two 3-pin headers for powered seedlings.
CV & Gate aren´t connected on the bus board.
The power sourcing is pretty flexible and delivers 1250mA on each rail, depending on your power source.
It can be powered from 9-36V with 1A-2,5A.
The 5V rail delivers 1A maximum and is shared with the +12V rail!!!
Maximum module depth with power header is 38mm.
Dimensions:
23cm x 19.2cm x 5,2cm
DC Jack:
5,6mm / 2,5mm center positive
Rails:

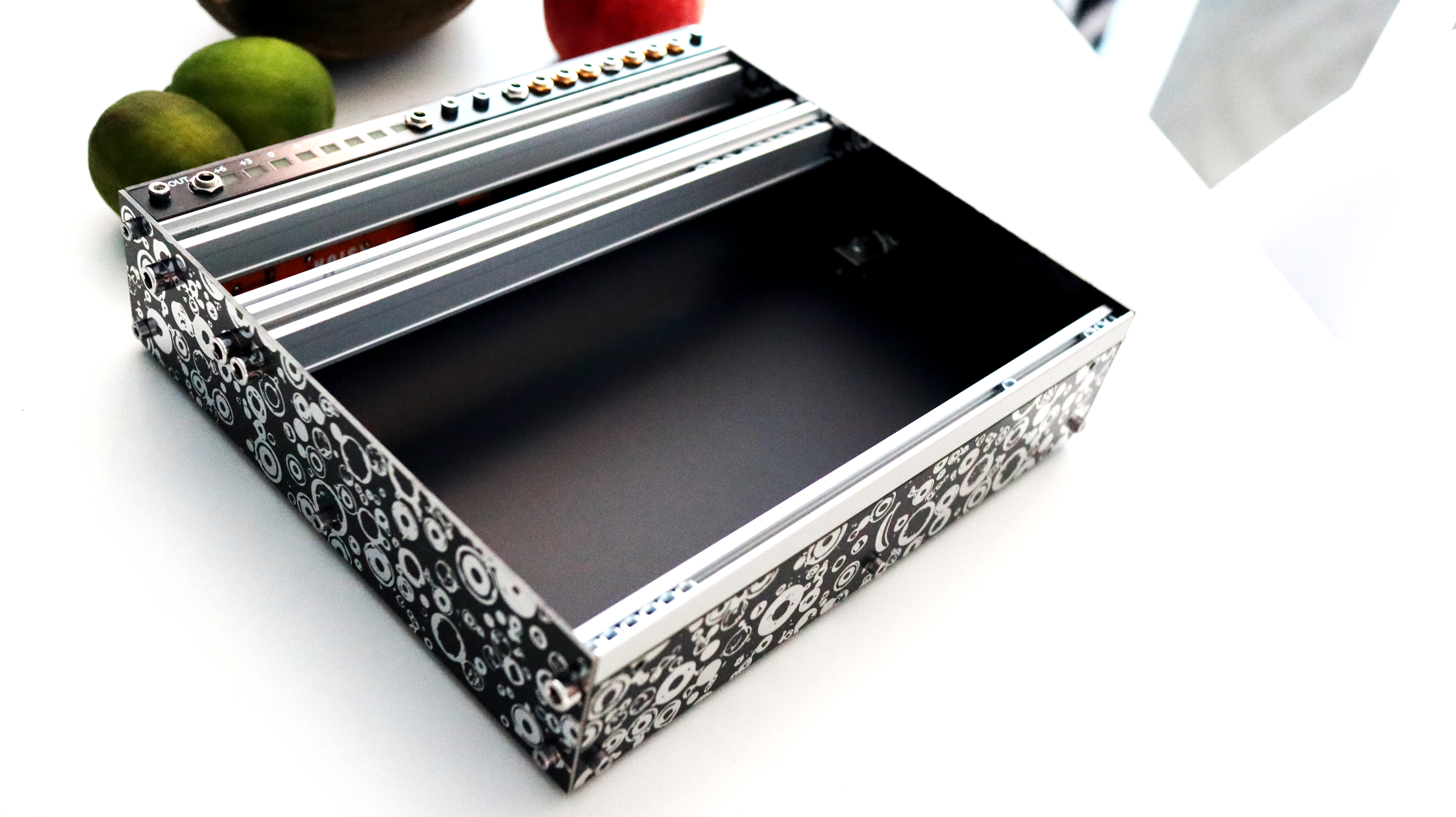

Classic Eurorack rails type 5 populated with 10 M3 nuts each rail.
1U row intellijel size!!!

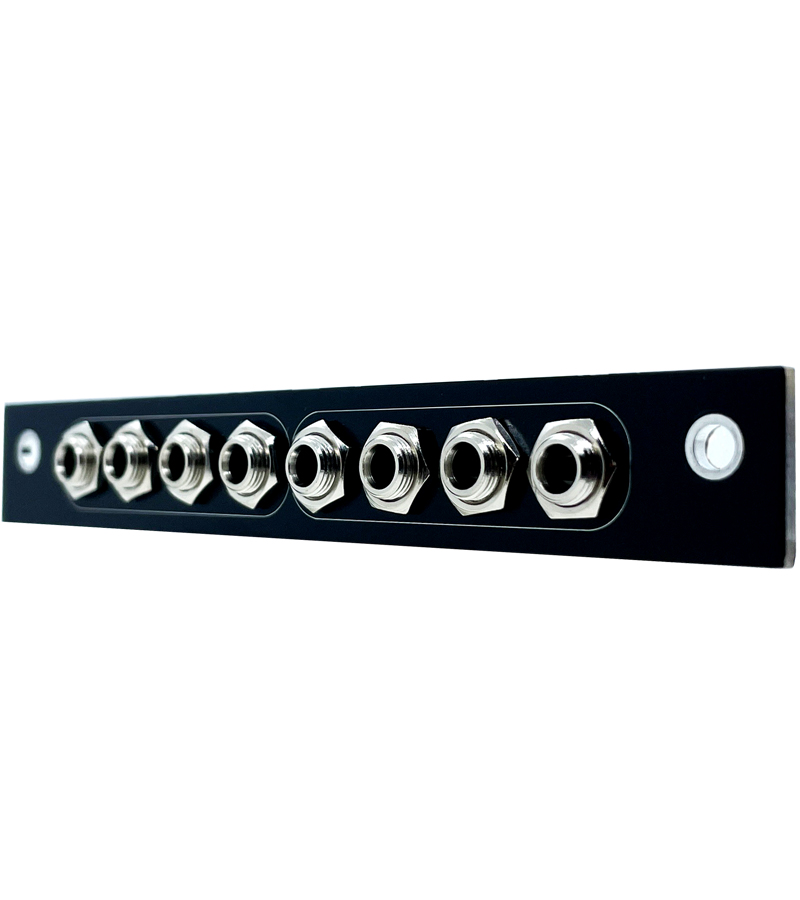

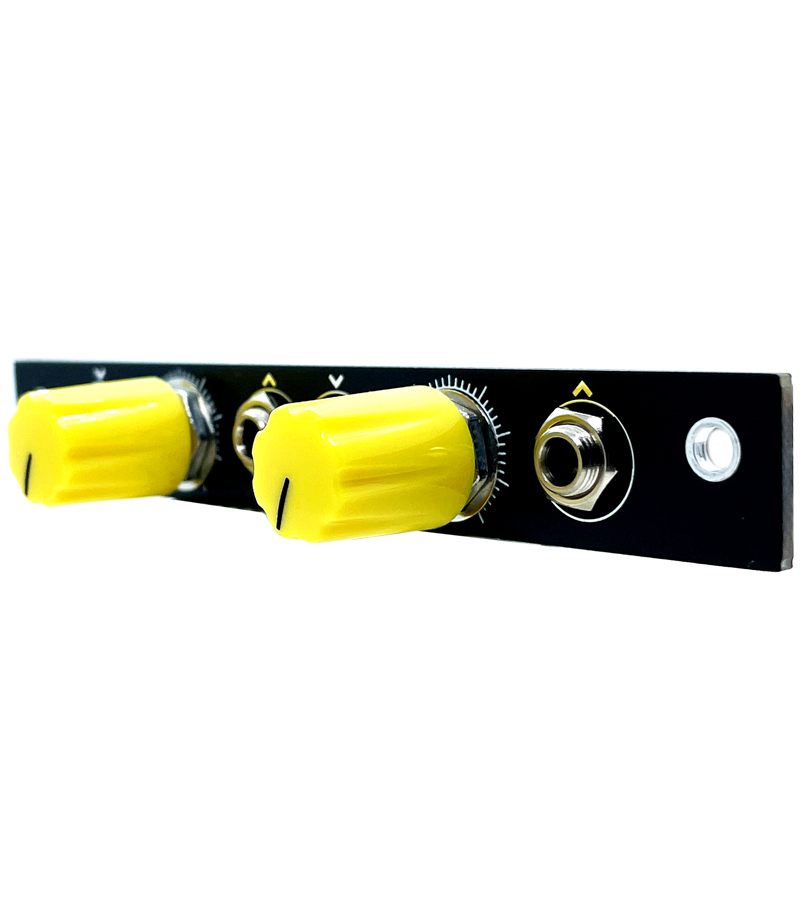

The case gets shipped without power brick and populated with blank seedlings.
