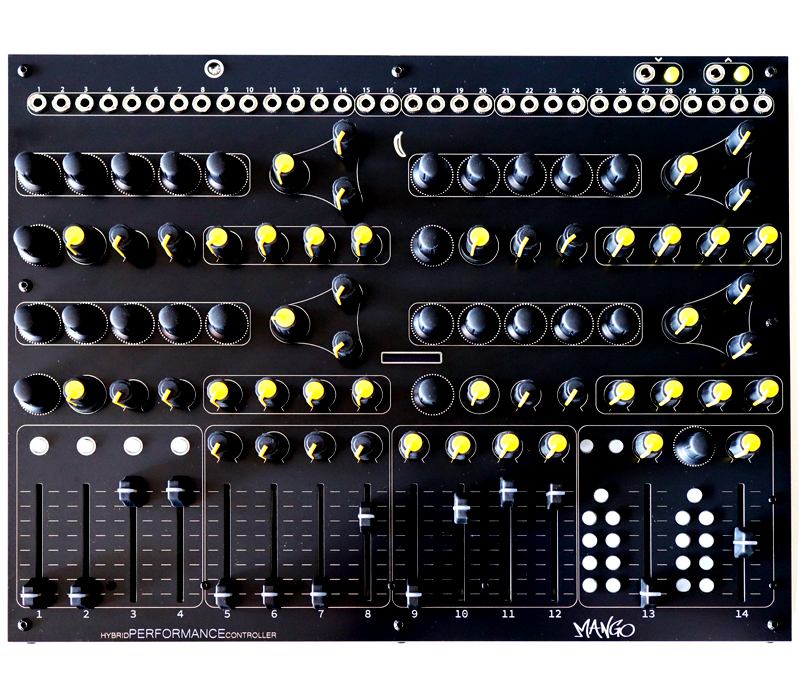

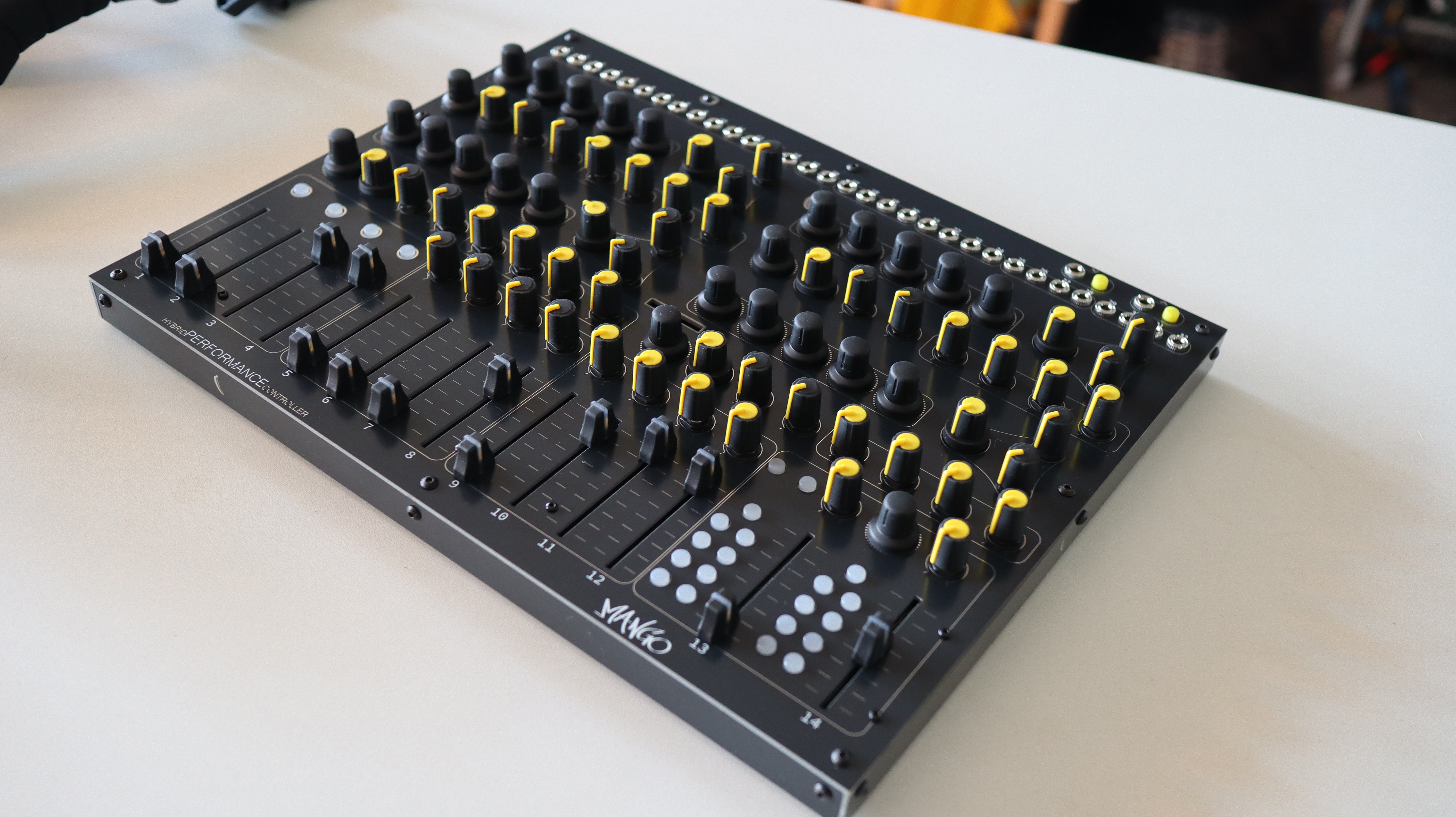

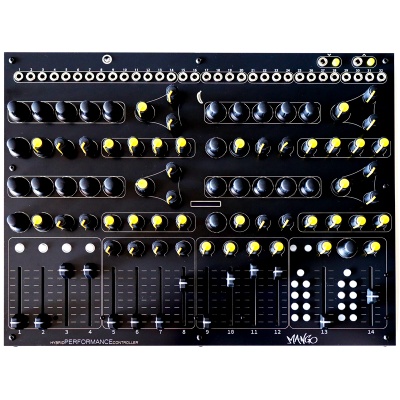

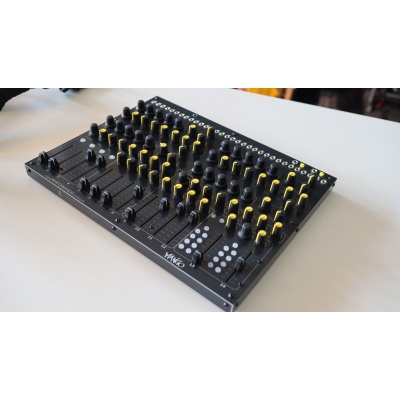

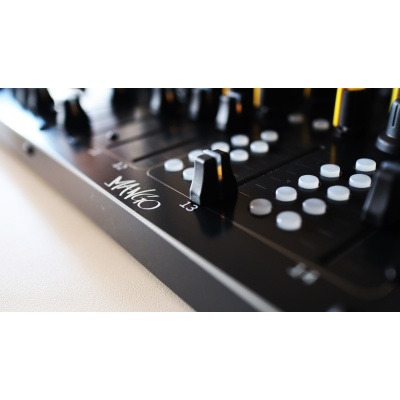

Mango is a hybrid MIDI & CV controller for desktop use, following the controller product line of “Coco”, “Kiwi” & “Lemon”.

Digital & analog control at one spot

Full focus on live performing with for example 4 synthesizers, 8 drum channels and 2 sub channels or FX controls.

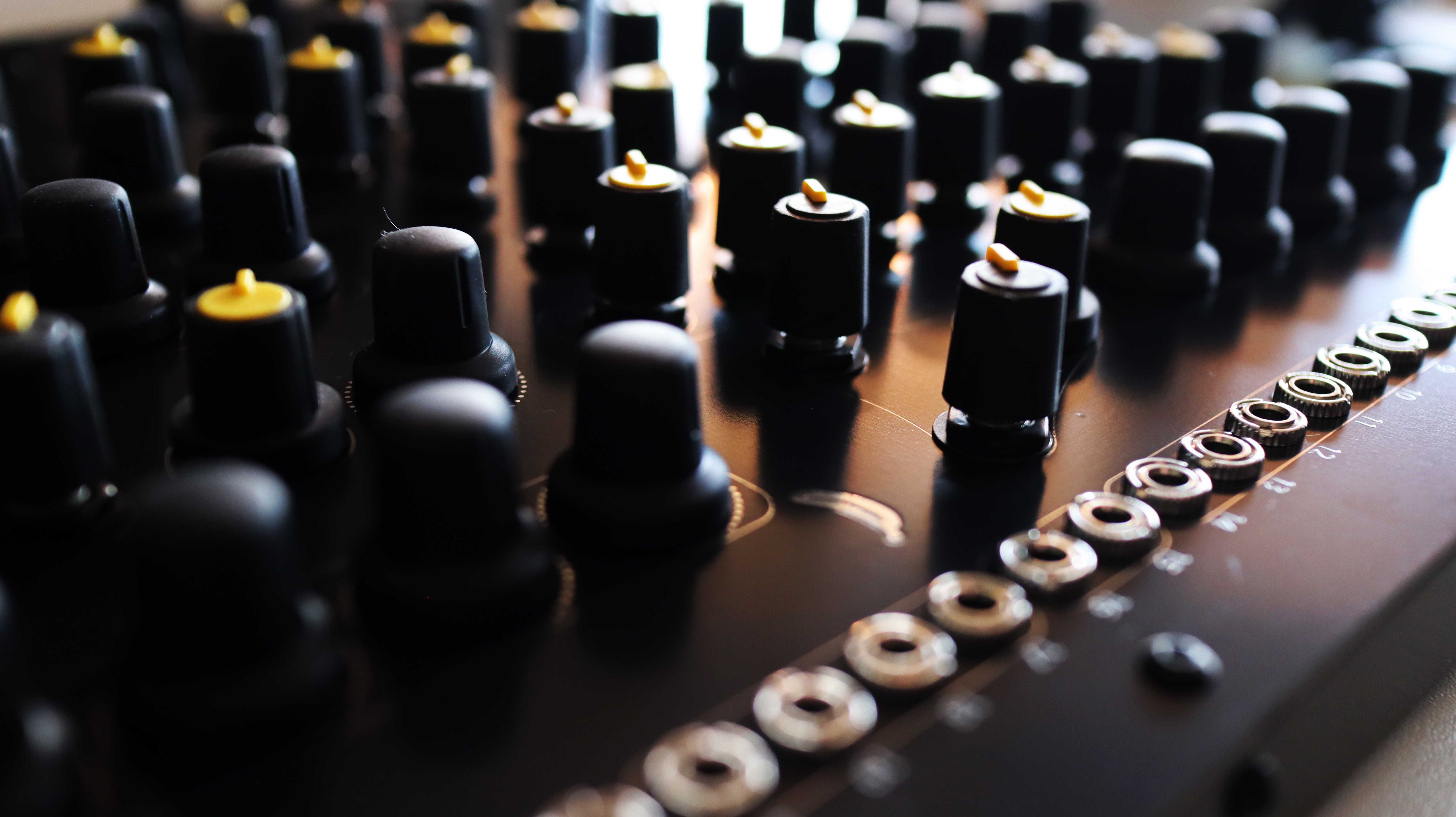

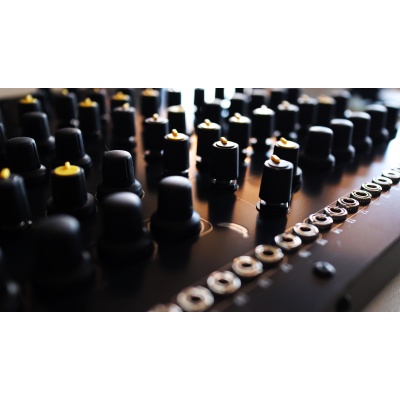

141 adressable controls across LED faders, potentiometers, encoders and buttons Modular synthesizer integration with 32 adjustable CV outputs for all faders and most of the potentiometers, covering a range from 0-5V or 0-10V

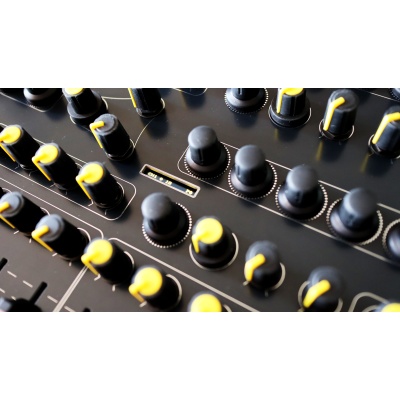

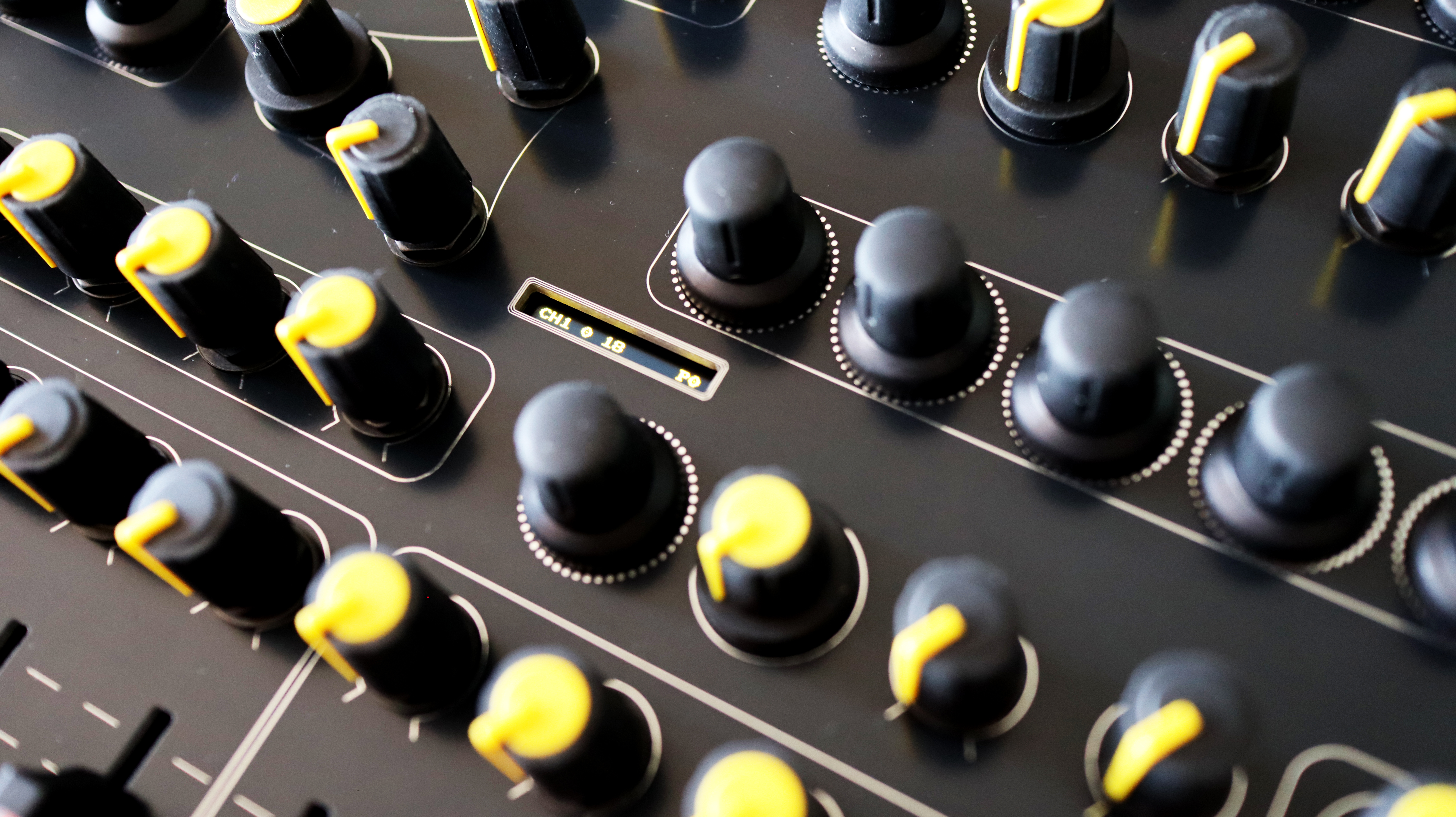

Slim size OLED display for precise value adjustments

Highly USB friendly with low current draw

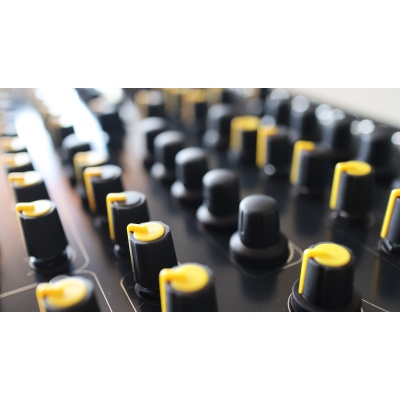

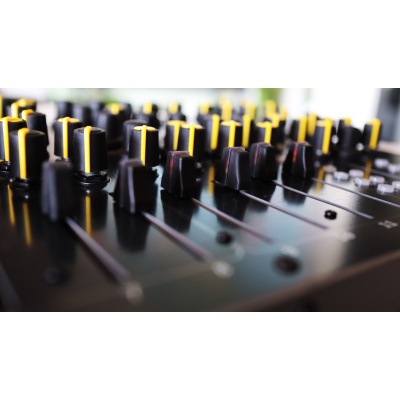

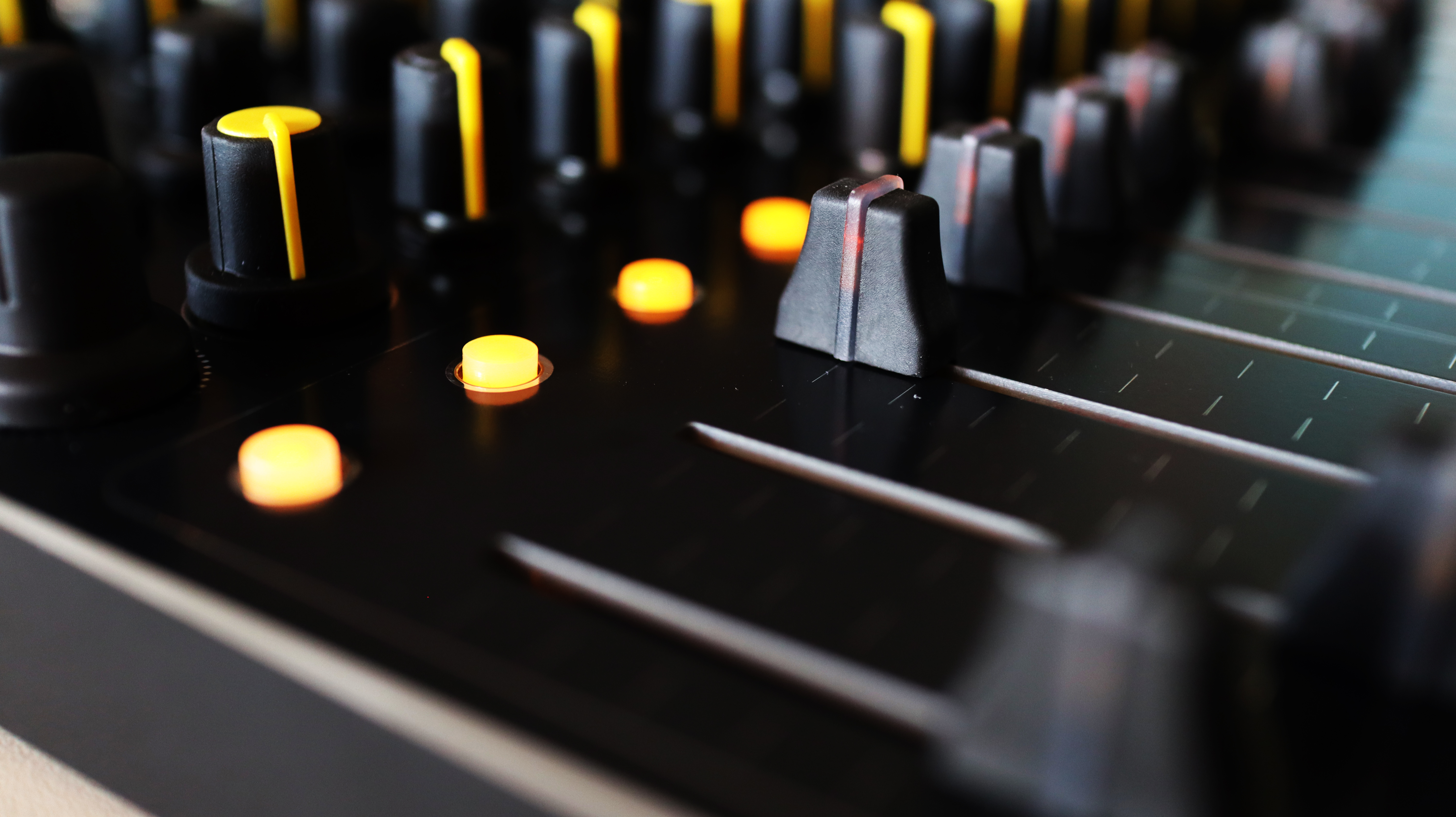

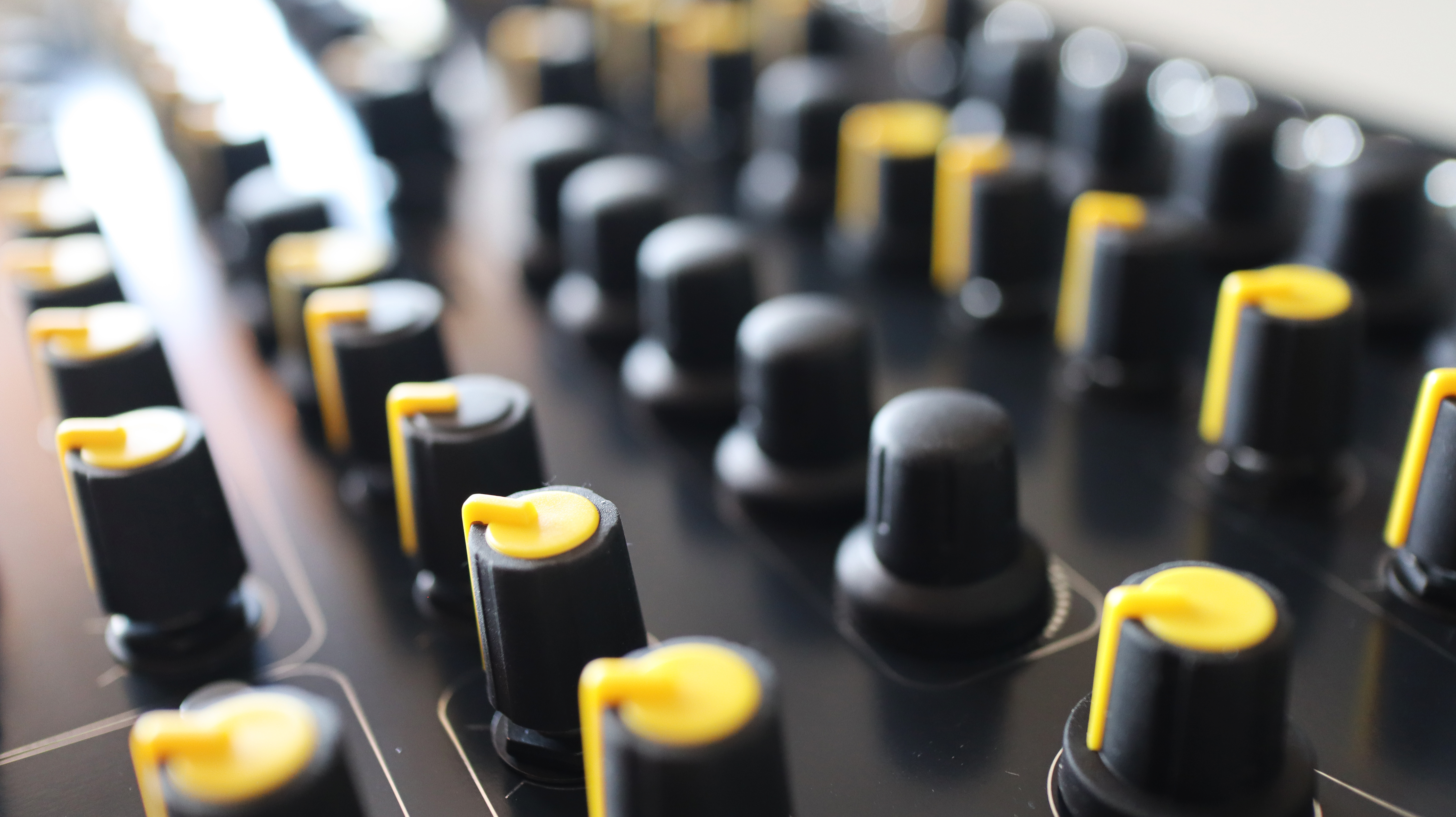

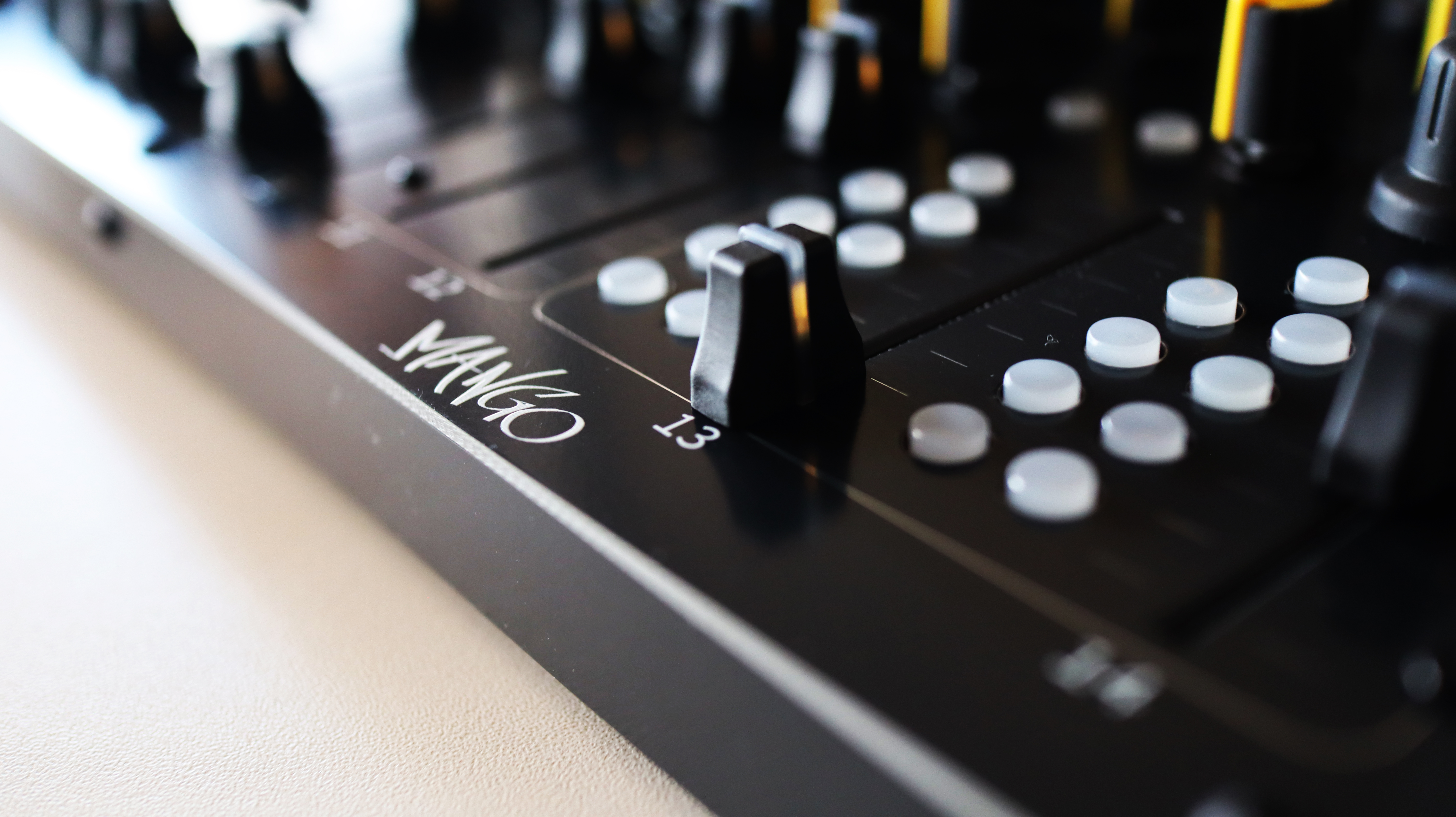

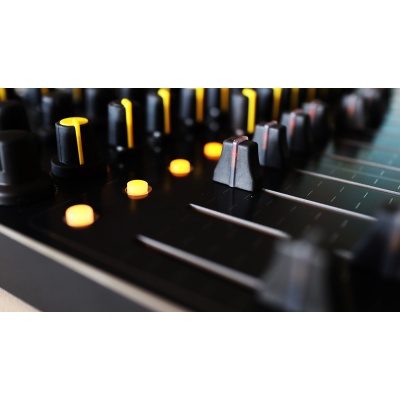

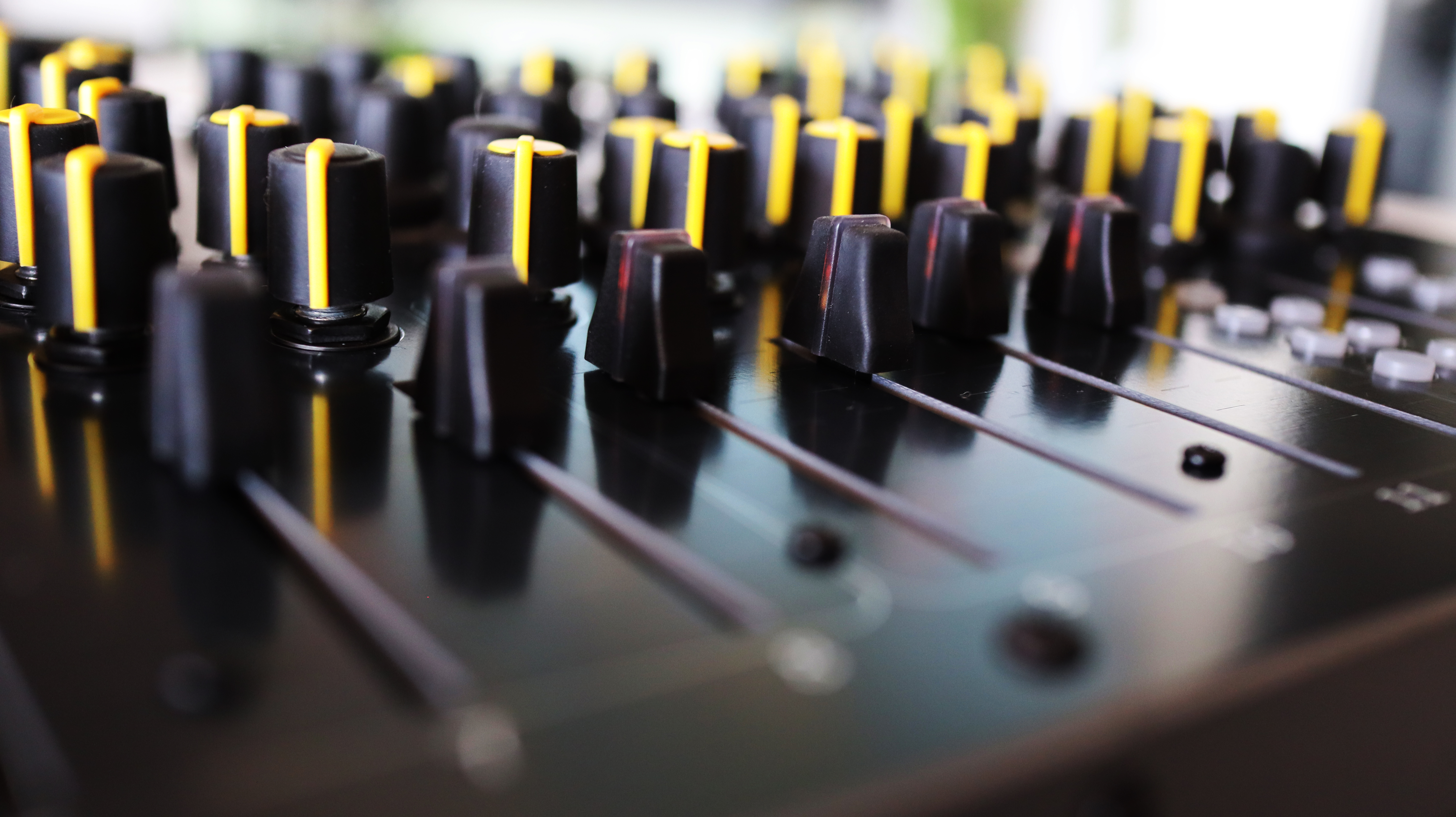

Equipped with quality Rogan Knobs, SIFAM Encoder & Slider Caps, Alpha Pots, Elektron style Encoders, Bourns LED Faders and momentary Low Profile LED Buttons.

Web & Desktop Editor to modify all MIDI based parameters and to create own presets.

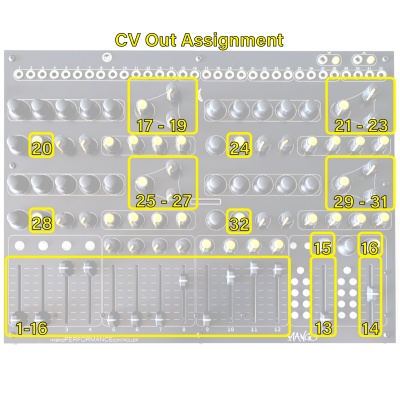

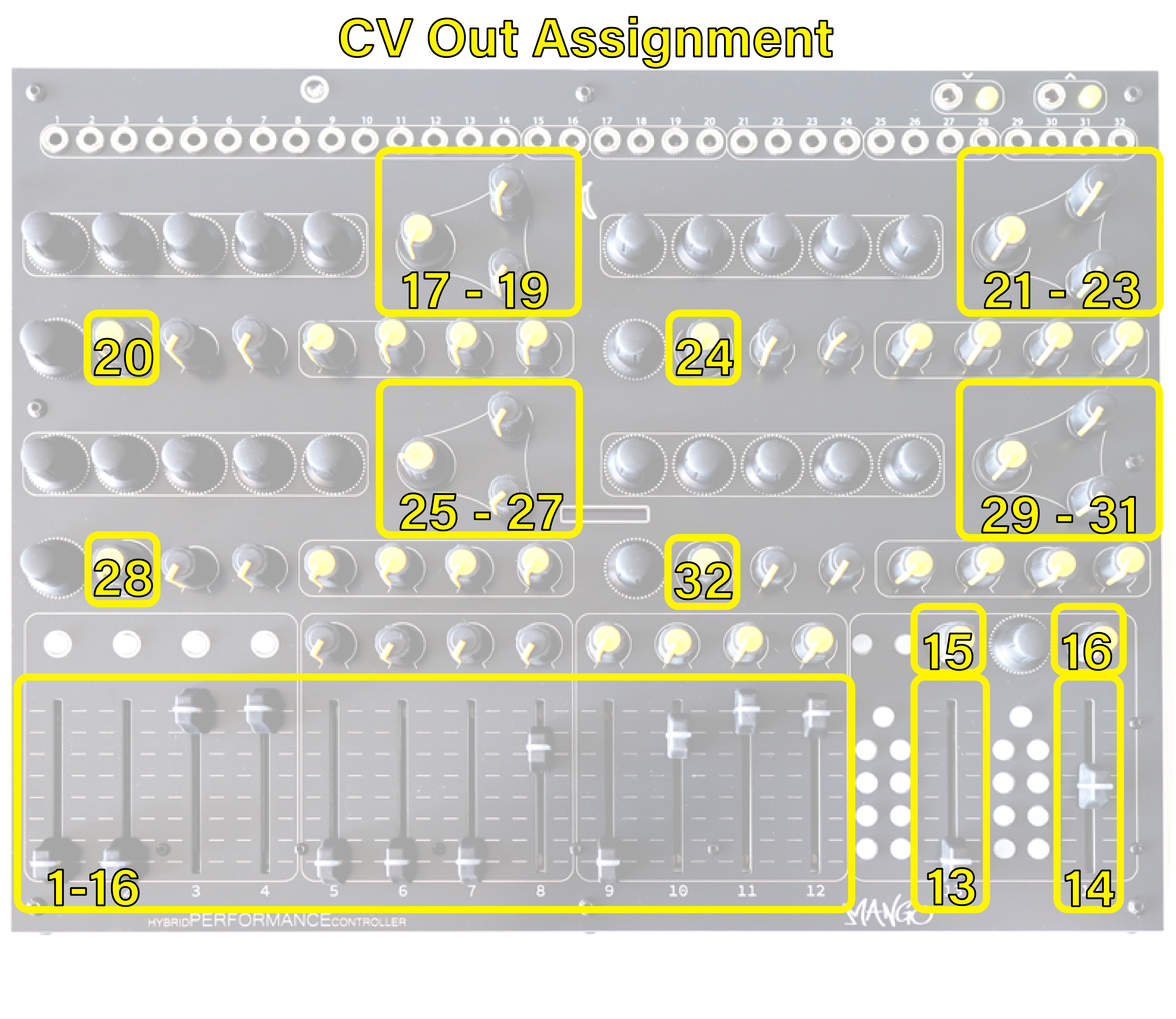

Covering every fader and almost every potentiometer for CV out (see assignment sheet)

Technical specs

Dimensions: 335 mm x 262 mm x 40

USB Power: USB C 5V 350mA

CV outs: Configurable with solder bridges on the backside of the mainboard Pre configuration: Fader: 0-5V Potentiometer: 0-10V

MCU :

Raspberry RP2040

Firmware:

OpenDeck mini by ShanteaControls licensed under Apache 2.0
