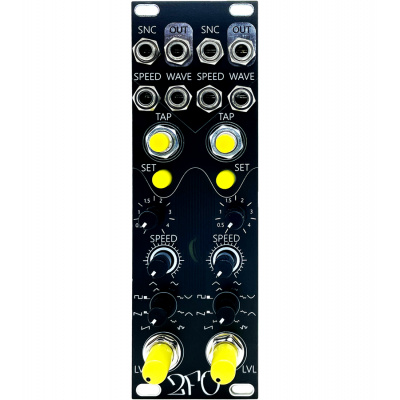

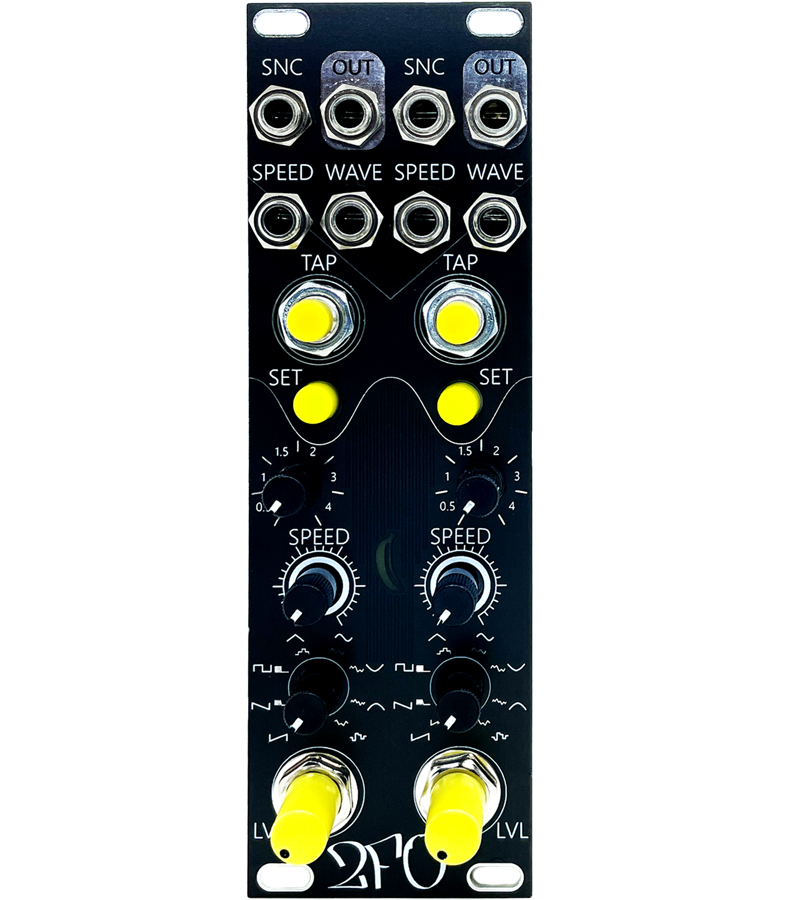

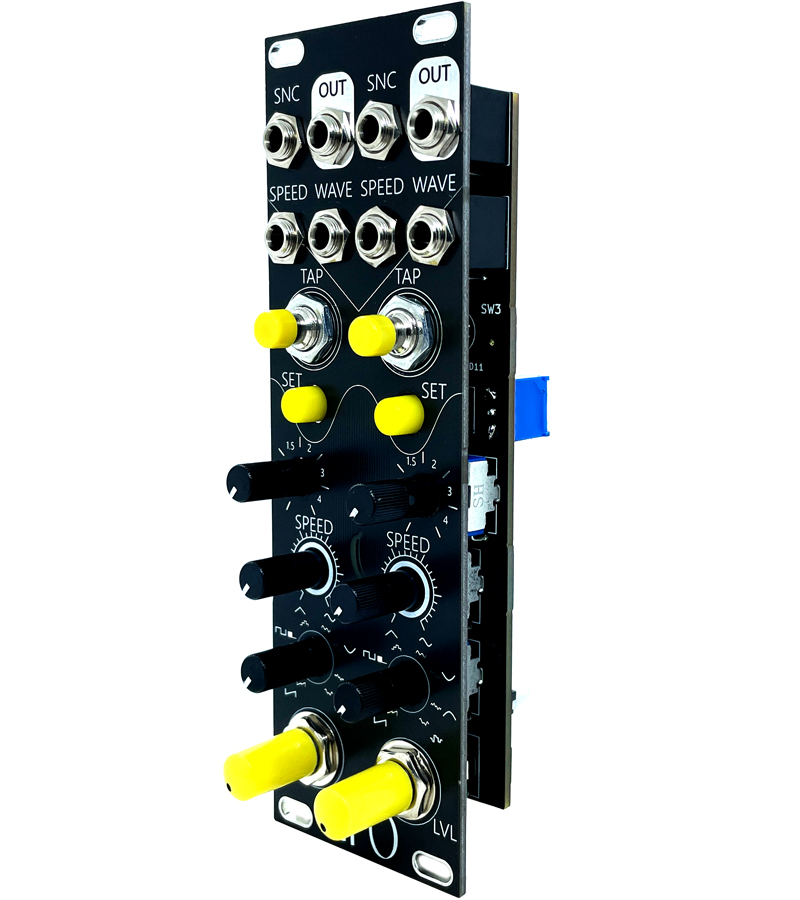

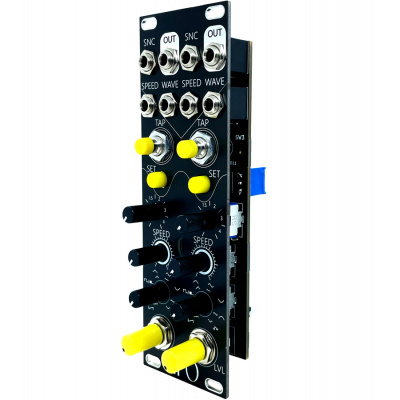

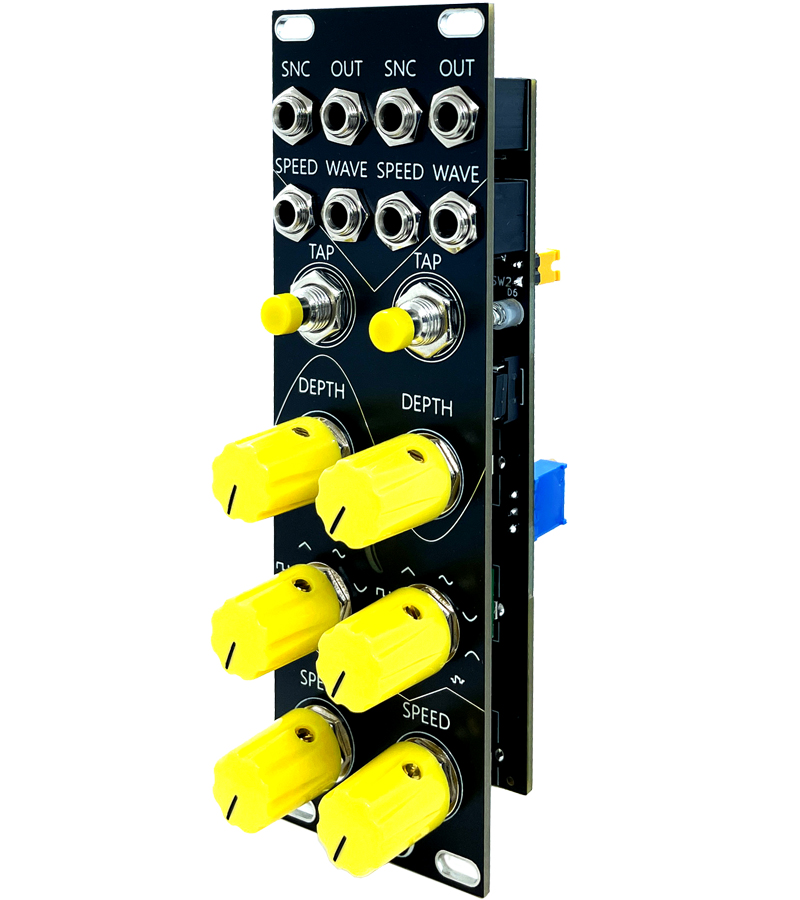

A dual, digital, multiwave, clocked or tapped LFO around two TAPLFO-ICs from electric-druid with proper output filtering for smooth & charming sweeps.

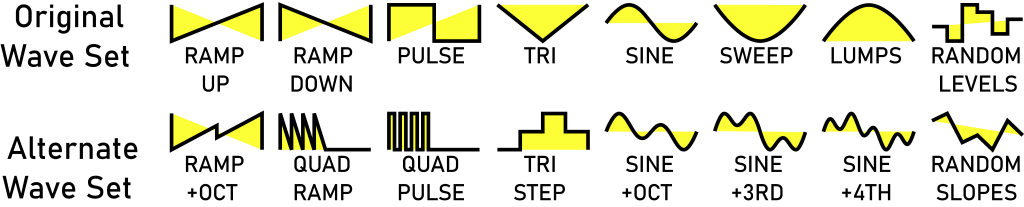

V3 now got a 6 range multiplier and switch for alternative waveforms.
Output -5 / +5V
LFO range 0.025Hz – 50Hz
CV ins for Sync, Speed & Waveform. Accepting -5 / +5V while the dedicated pots act as offset.

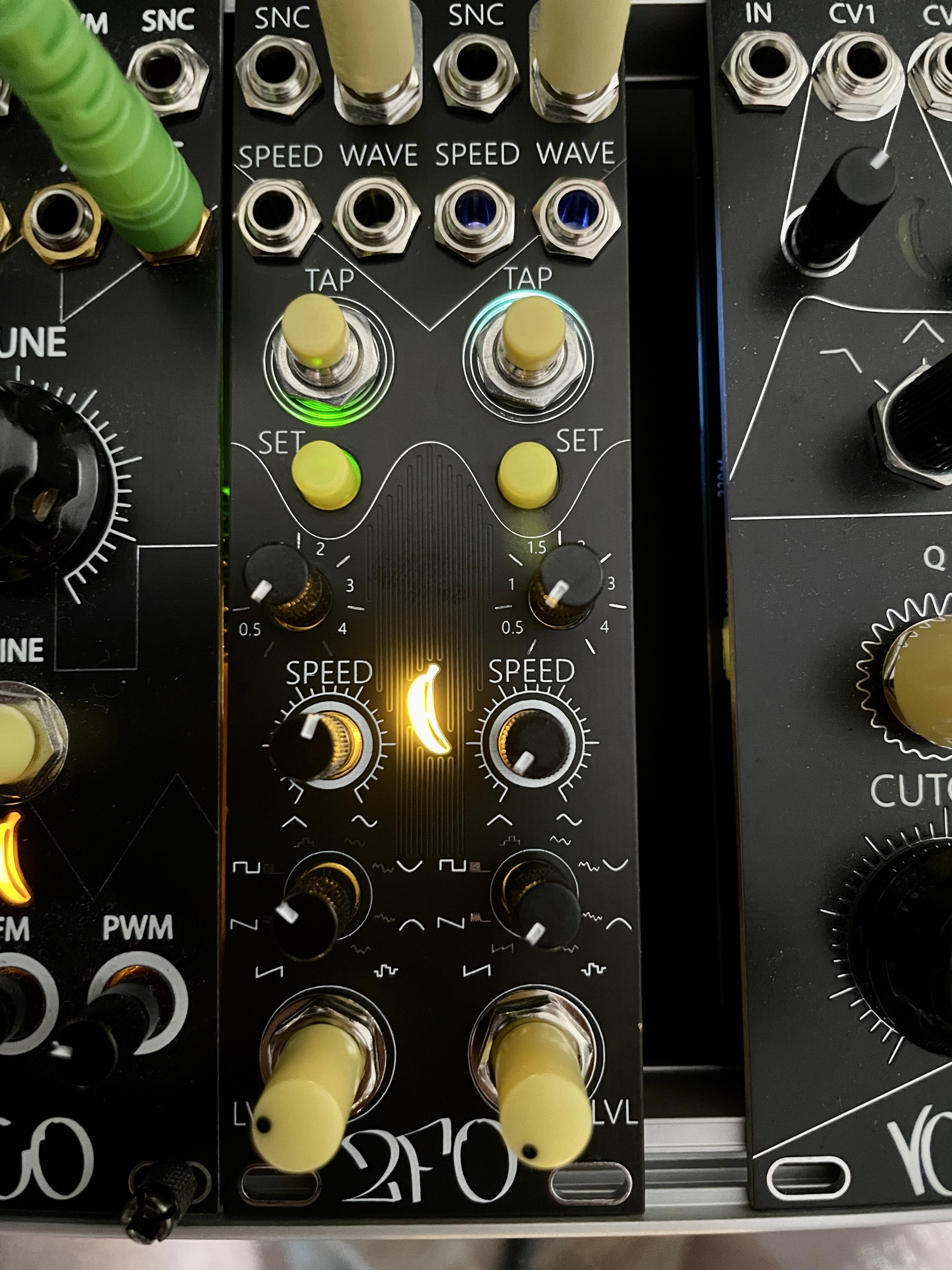

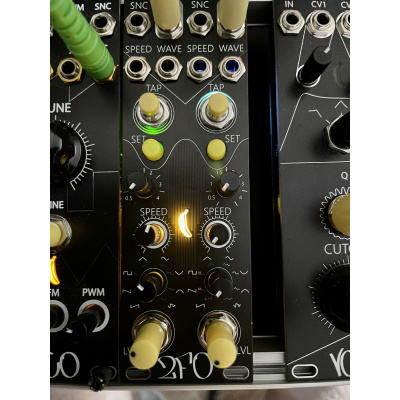

LEDs around the tap button for positive and negative indication.

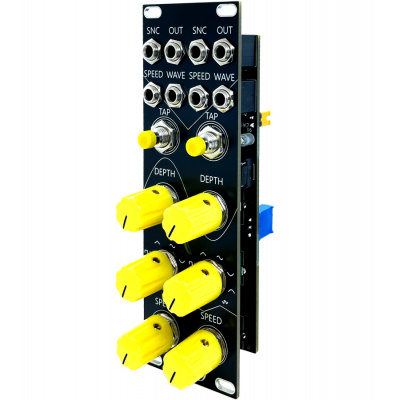

The depth pot is a “proper” attenuator without offset shifts.
8HP
Depth: 30mm (powered)
+12V 50ma
-12V 40ma
