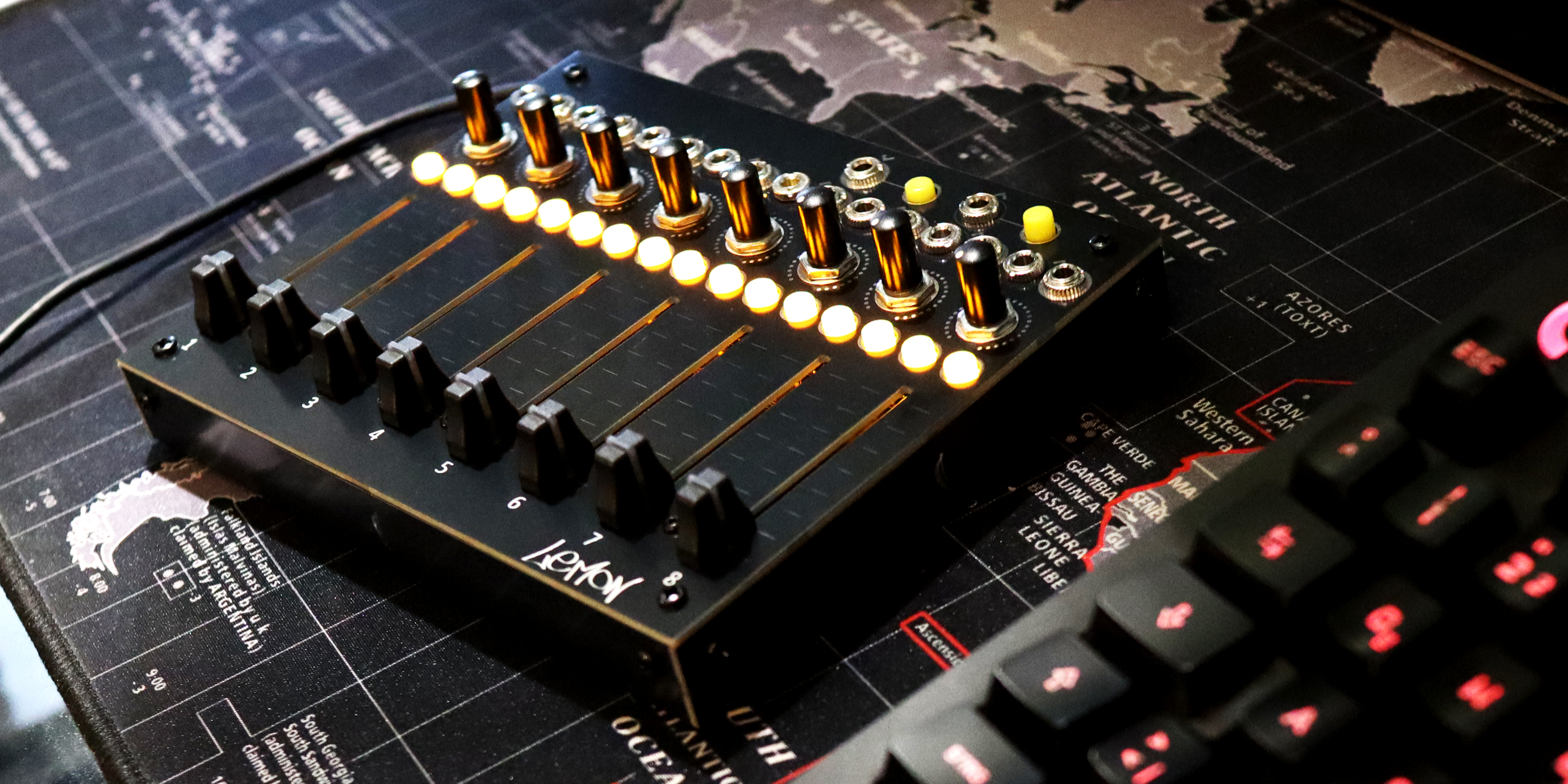

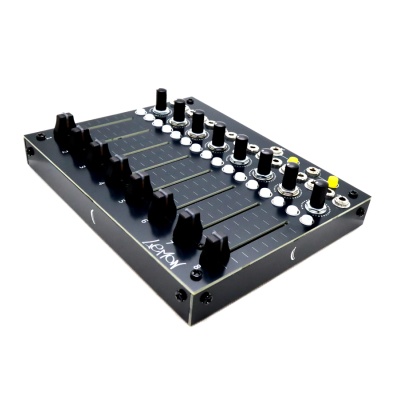

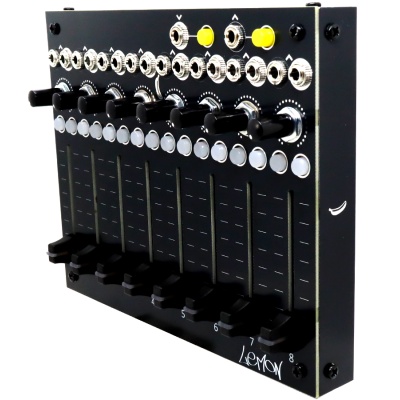

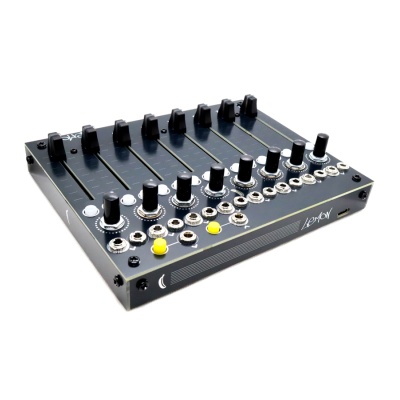

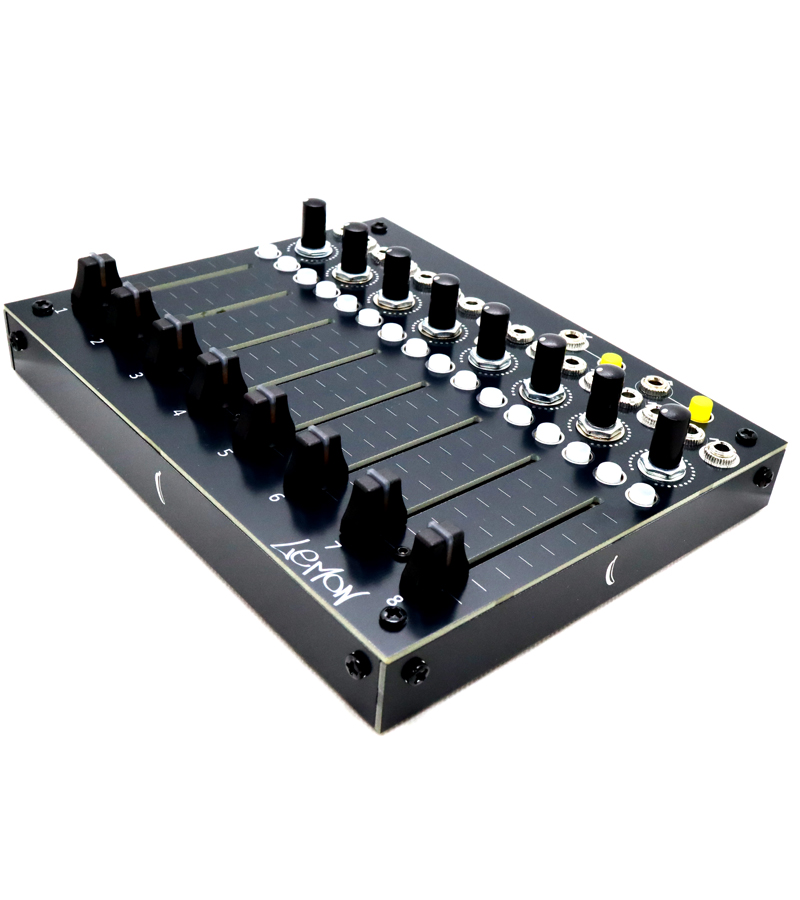

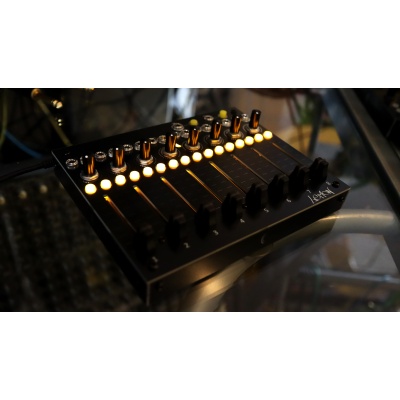

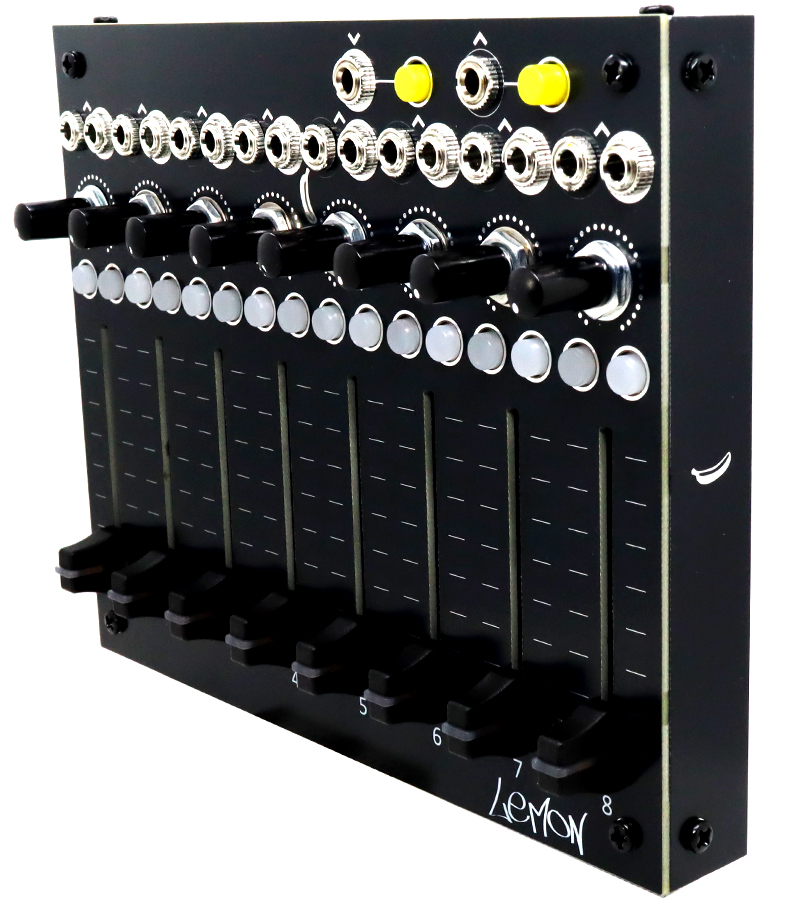

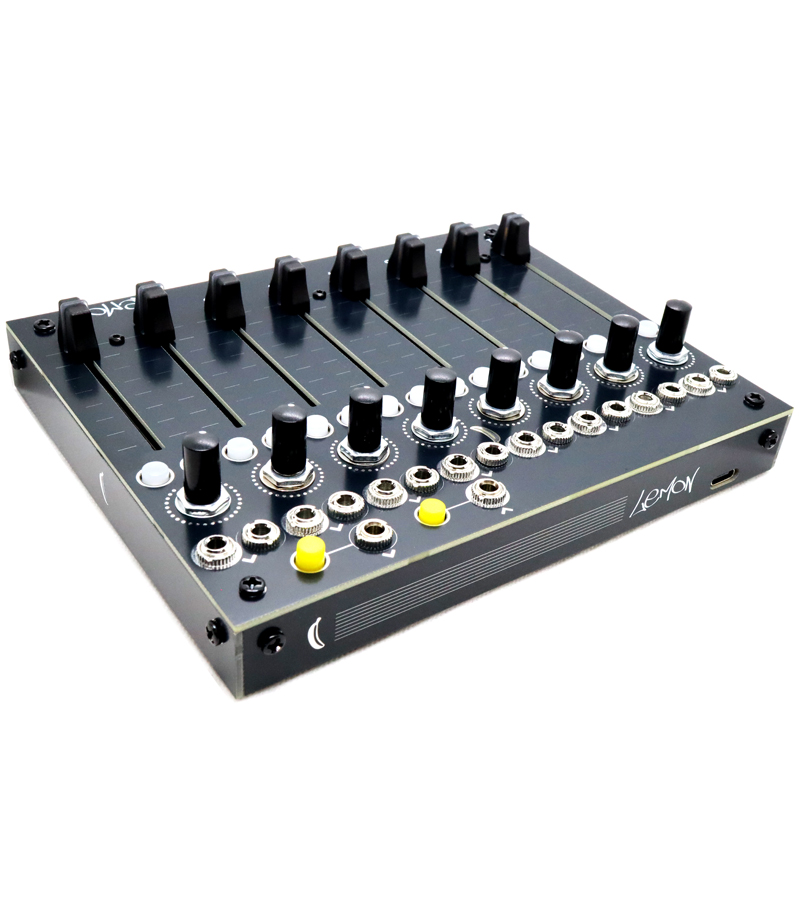

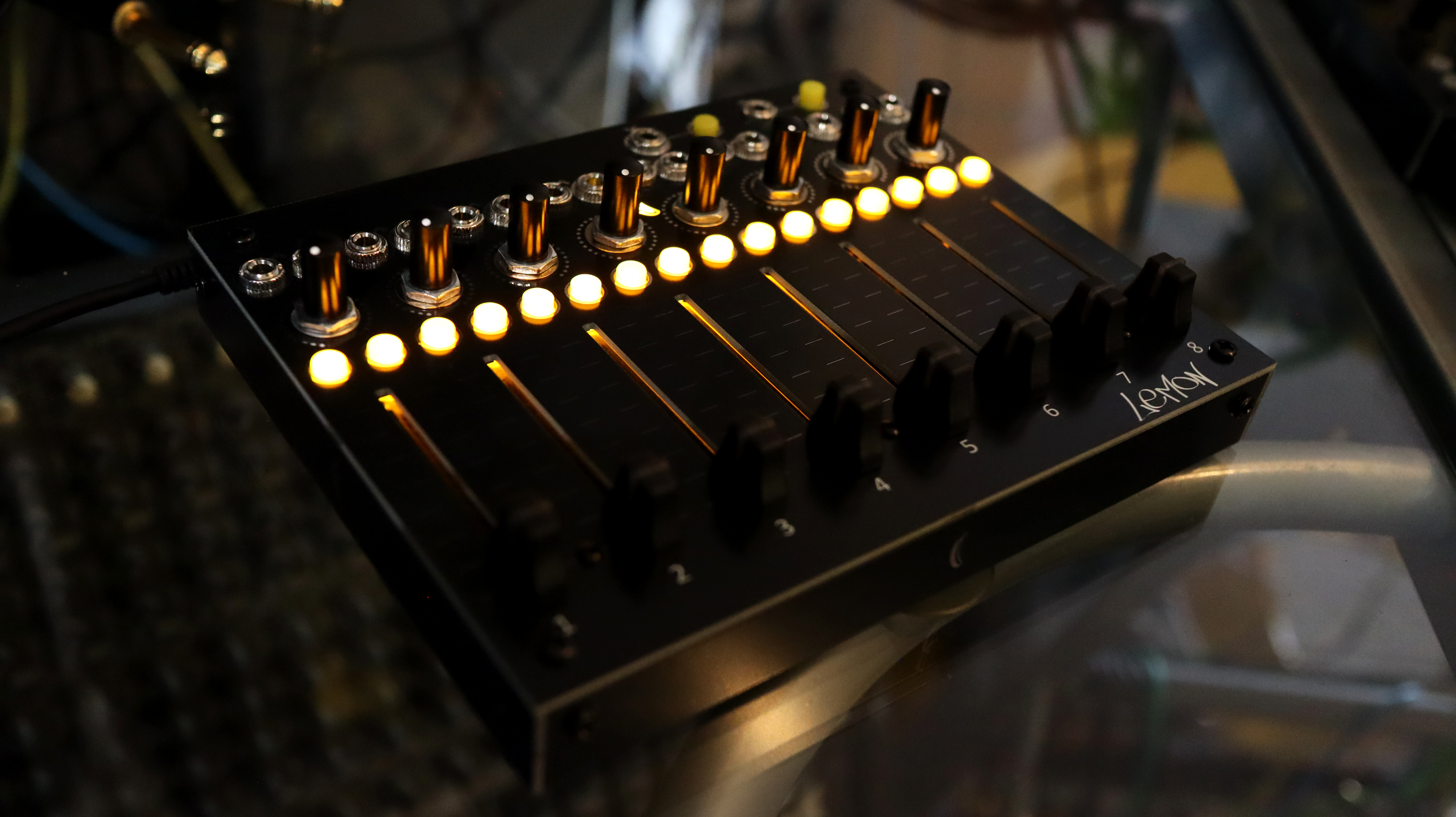

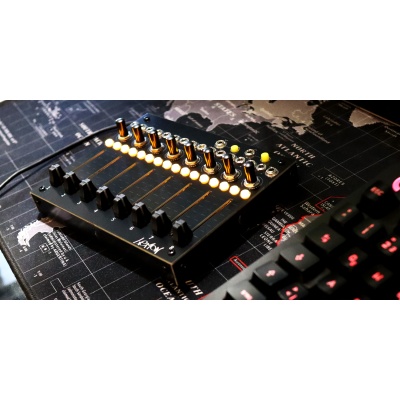

We designed the LEMON MIDI & CV Controller to be a helpful tool for musicians, producers, and modular synth enthusiasts.
LEMON merges digital precision with analog control to inspire creativity and streamline workflows.
Key Features:
- 8 Channels with LED Faders & Potentiometers: Enjoy smooth and precise control, with high-quality CV outputs for each parameter.
- Integrated MIDI Connectivity: TRS-DIN MIDI In/Out with A/B switch ensures seamless integration into every setup.
- 16 mappable MIDI Buttons & LEDs
- 0-5V or 0-10V for each Fader & Button
Additional Benefits:
- Simplified preset management with web and desktop editors.
- Compatible with OpenDeck Mini firmware for custom configurations.
- Flexible power options via USB or Eurorack.
https://youtu.be/Jy3eAy5M0e0?si=CTewg652jTbvUfvf
Technical specs:
Dimensions:
165mm x 130mm x 40 ( 32HP )
USB Power:
5V 215mA
Overvoltage protected
CV outs:
Configurable with solder bridges on the backside of the mainboard
Pre configuration:
Fader: 0-5V
Potentiometer: 0-10V
MCU :
Raspberry RP2040
Firmware:
OpenDeck mini by ShanteaControls licensed under Apache 2.0
Configurator:
Web: https://config.shanteacontrols.com/#/
Desktop: https://github.com/shanteacontrols/OpenDeckUI/releases
Download Firmware:
https://github.com/shanteacontrols/OpenDeck/releases/download/v7.10.0/opendeck22.uf2
