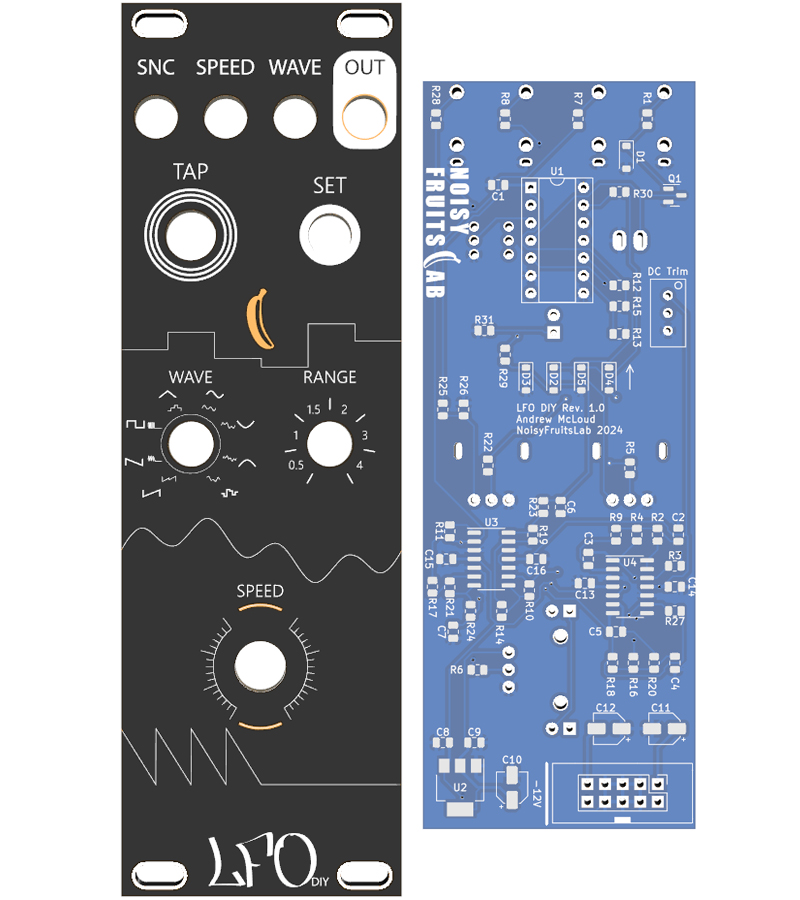

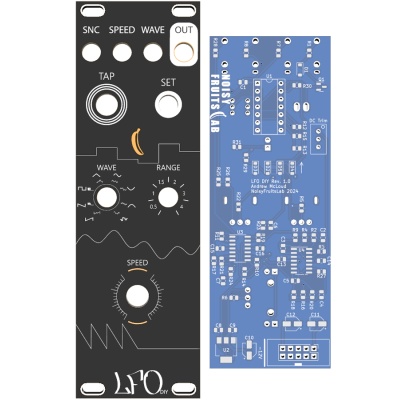

PCB & PANEL ONLY!
A DIY digital, multiwave, clocked or tapped LFO around the TAPLFO-IC from electric-druid with proper output filtering for smooth & charming sweeps.
NOTE: THIS UNIT ONLY EXISTS AS DIY VERSION AND ONLY AS PCB & PANEL. THERE IS NO ASSEMBLED ONE COMING FROM THE LAB!
IT´S A STRAIGHT FORWARD DIY ASSEMBLY WITH 0805 SMT COMPONENTS.
Output -5 / +5V
LFO range 0.025Hz – 50Hz
CV ins for Sync, Speed & Waveform. Accepting -5 / +5V while the dedicated pots act as offset.
LEDs around the speed pot for positive and negative indication.
The iBOM and instructions you can find under the guides.
8HP
Depth: 30mm (powered)
+12V 37ma
-12V 26ma
