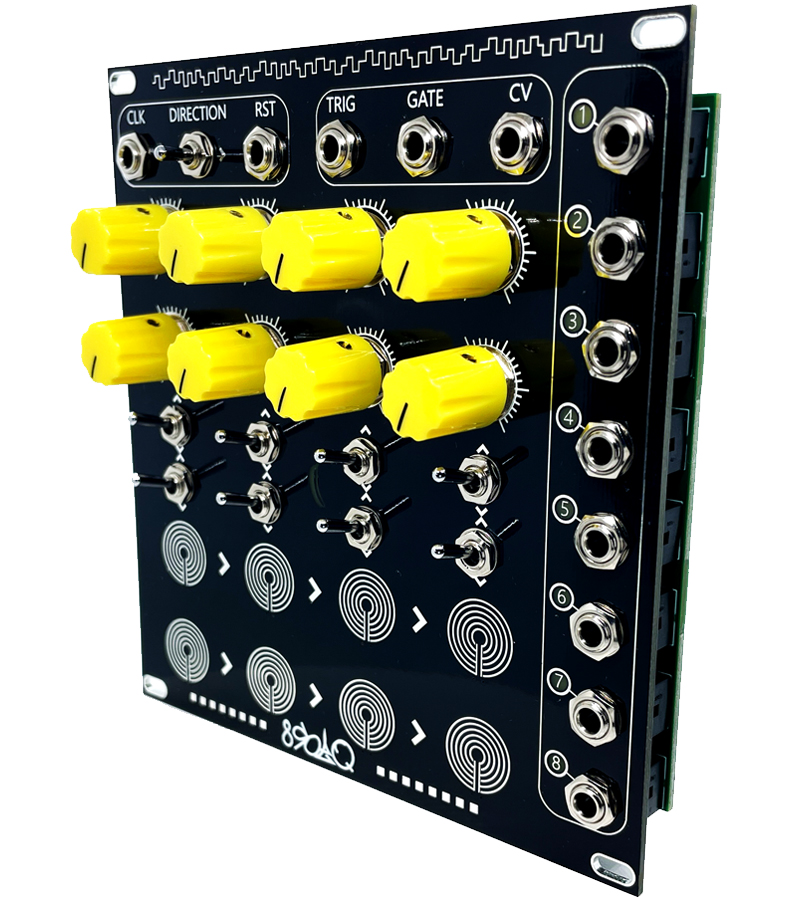

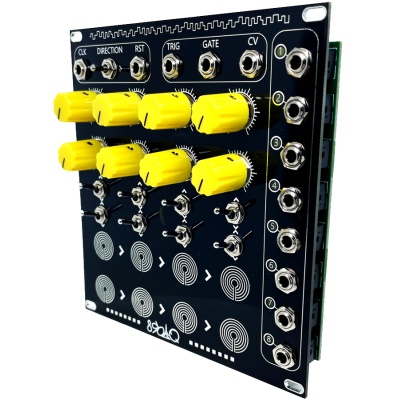

8SEQ is a kind of classic baby 8 sequencer with additional features and an illuminated touch interface.
If not using as a sequencer you can use it as a transponical touch interface for sending adjusted voltages from 0-5V.
With plugging an individual step out into RST you can shorten the pattern length by switch. This way you can also set interesting trigger variations.
Inputs:
Clock & Reset
Direction Switch
Switch for each step and trigger / gate activation
Outputs (buffered):
Gate
Trigger
CV 0-5V
Individual triggers with LED indication
24HP
Depths: 32mm
+12v 40mA
-12V 20mA
