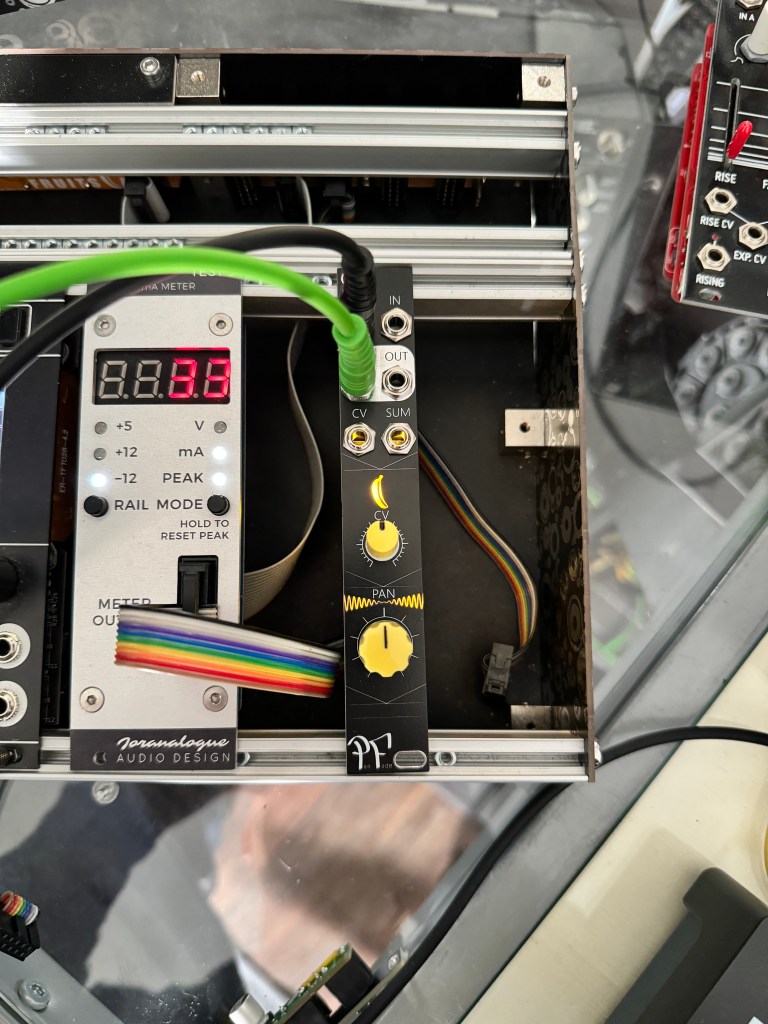

PanFade is a voltage controlled crossfader and stereo panner.
With the pan pot you can fade between the left and the right input, or you can make a stereo signal moving in the stereo field from left to right with a control voltage.
The inputs are normalized, means with plugging a mono signal just into the left input the signal becomes "pseudo" stereo, or this way you can also use it as a VCA.
With plugging a stereo signal the summing ouput becomes a mix of both inputs, in other words it´s a stereo to mono converter as well.
The LED indicators above the pan pot are showing the corresponding audio outputs.
4HP
CV input -/+5V
Depth: 40mm (with power)
+12V 49mA
-12V 33mA
