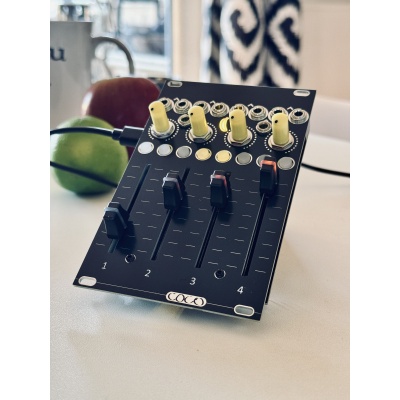

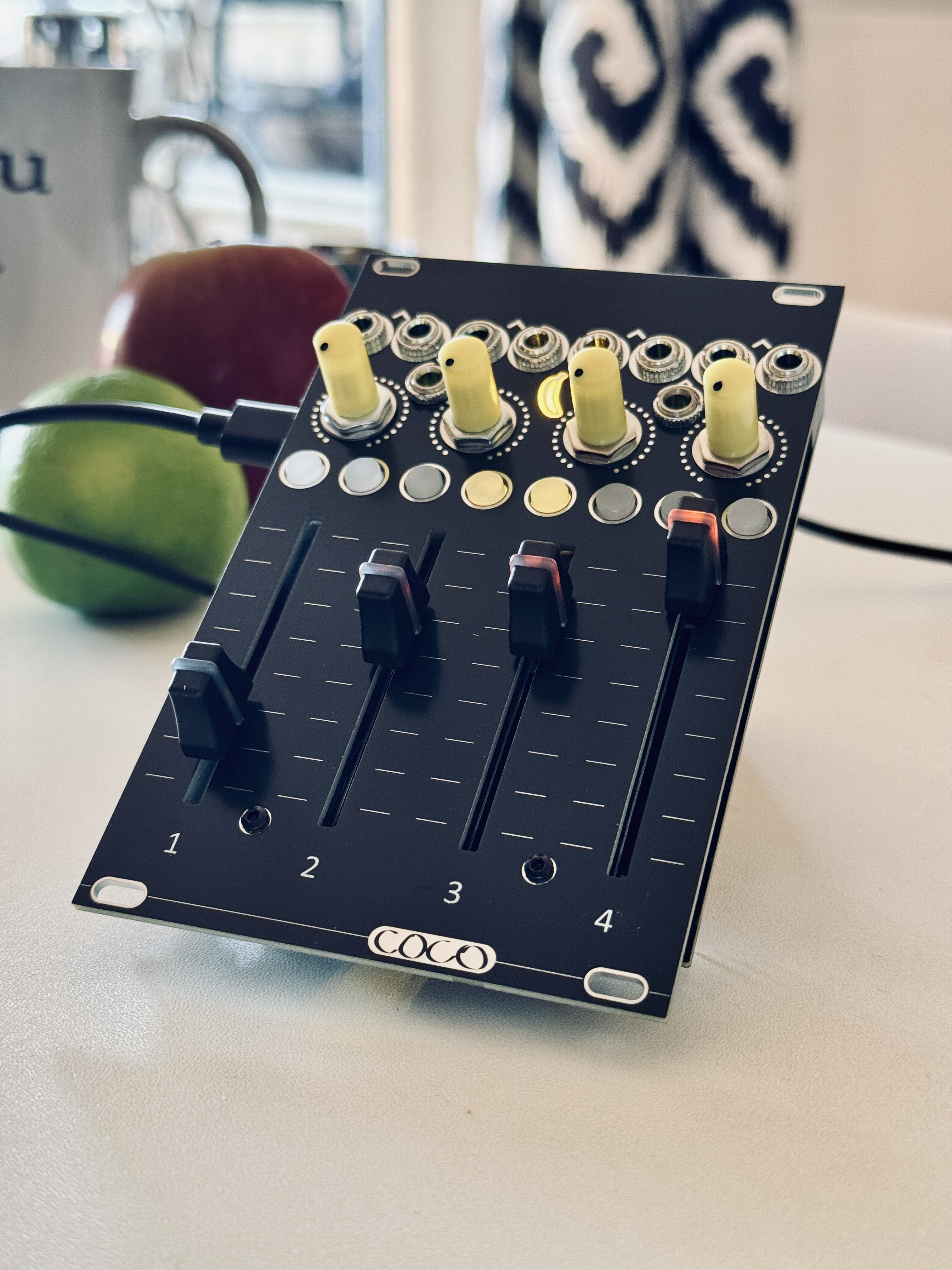

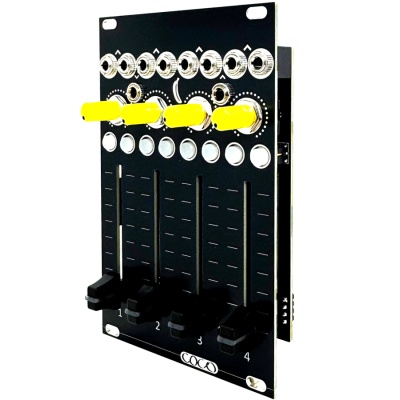

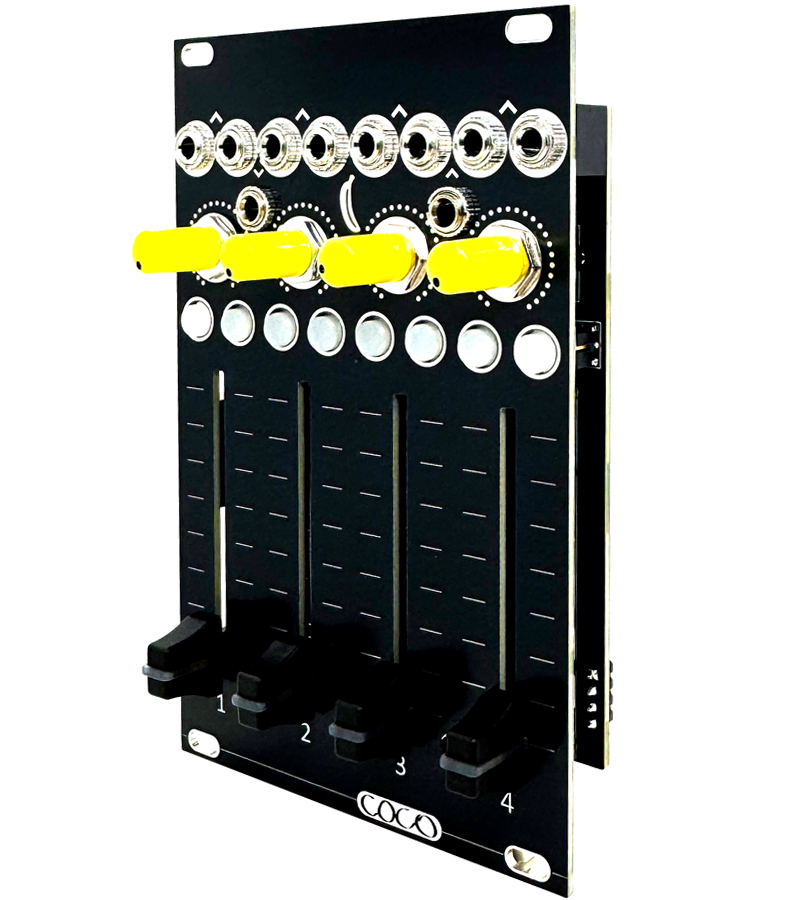

Coco - MIDI & CV Controller

Coco is a MIDI & CV controller following the product line of KIWI & Lemon controllers.

It shares the same specs but in a shrinked and compact form factor.

• 4 channels with LED faders and potentiometers

• Precise CV out for each fader and potentiometer

• Fully adressable buttons & LEDs

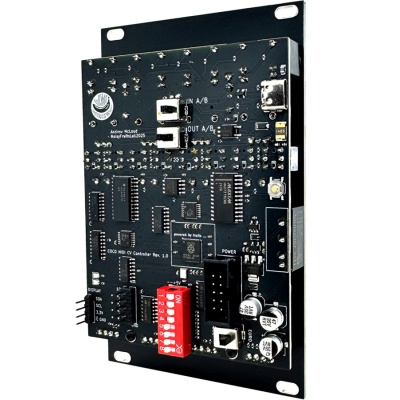

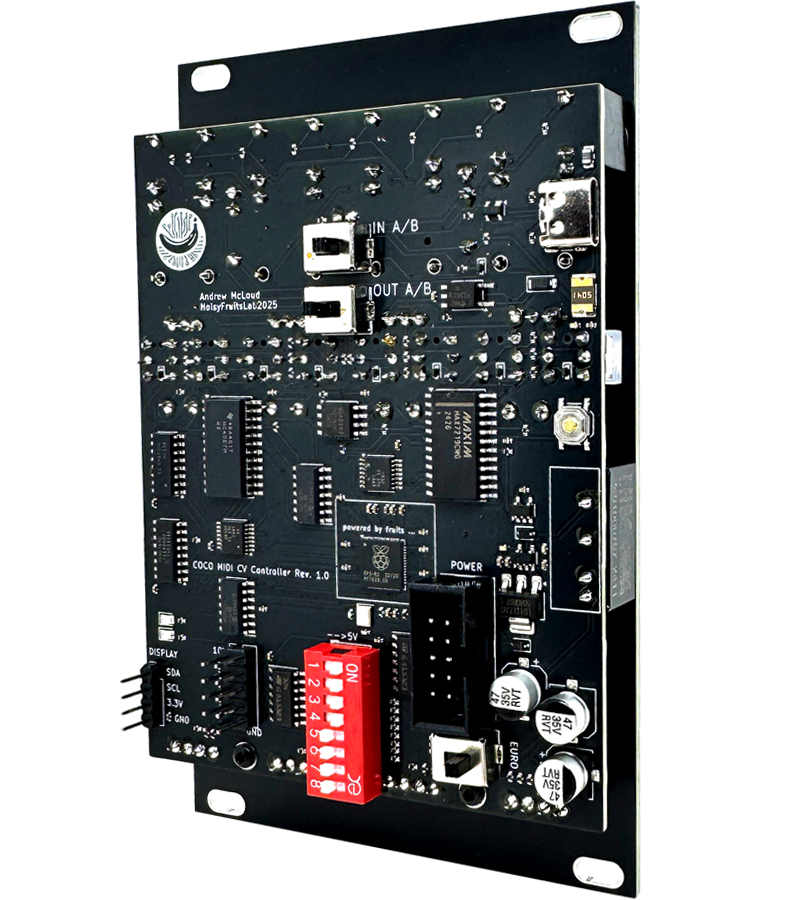

• TRS DIN MIDI in & out with A/B switches on the backside

• Web & Desktop Editor to modify all MIDI basedparameters and to create own presets

16HP

Depth: 35mm

+12v 120mA

USB Power:

5V  120mA

Overvoltage protected

NOTE: the unit fully works with USB power, but there was no intention in powering it that way inside a rack.

CV outs:

Configurable with DIP switches on the backside

Expanders:

There are two additional pin headers on the backside for attaching a display or adding more channels, maybe in the future …

MCU :

Raspberry RP2040

Firmware:

OpenDeck mini by ShanteaControls  licensed under Apache 2.0
