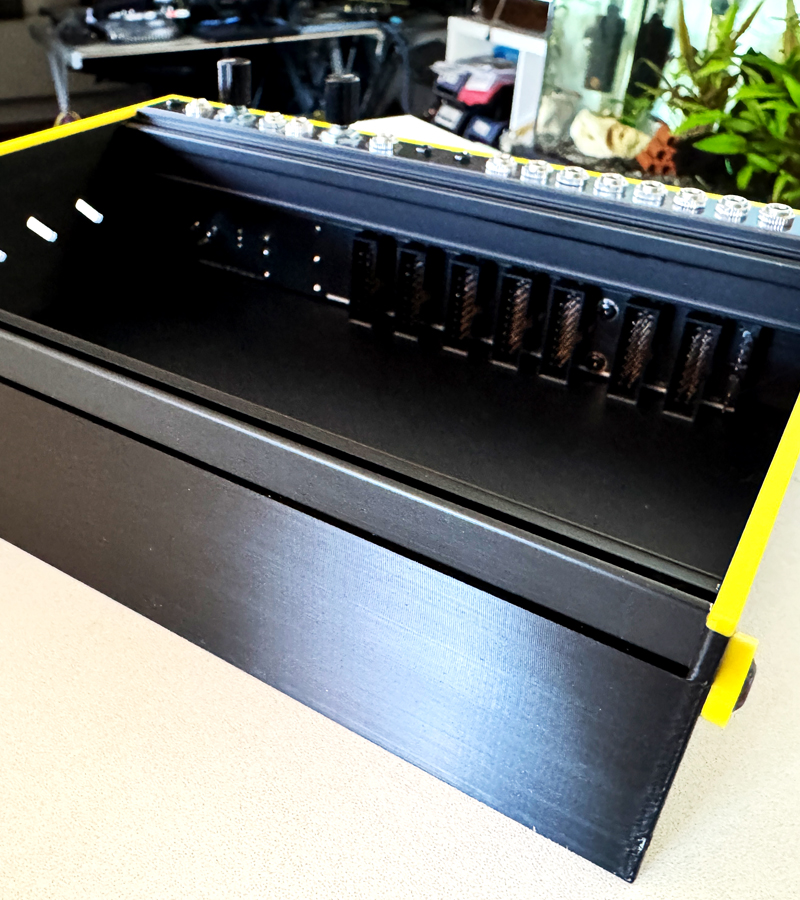

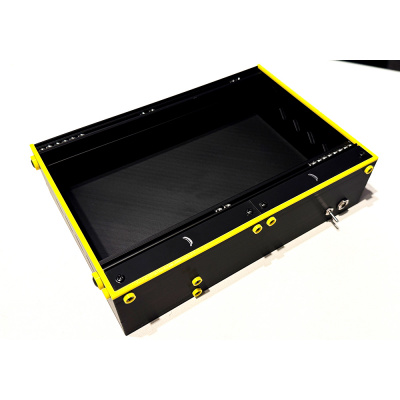

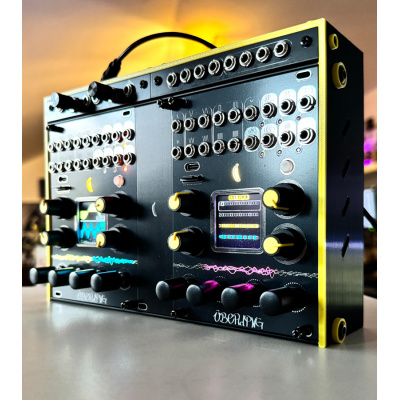

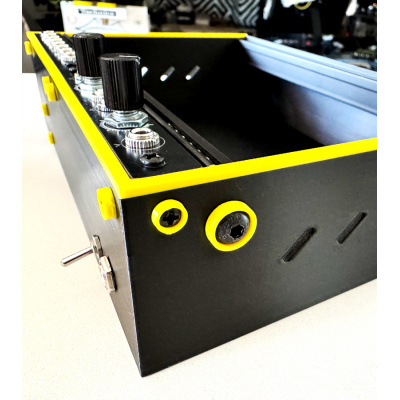

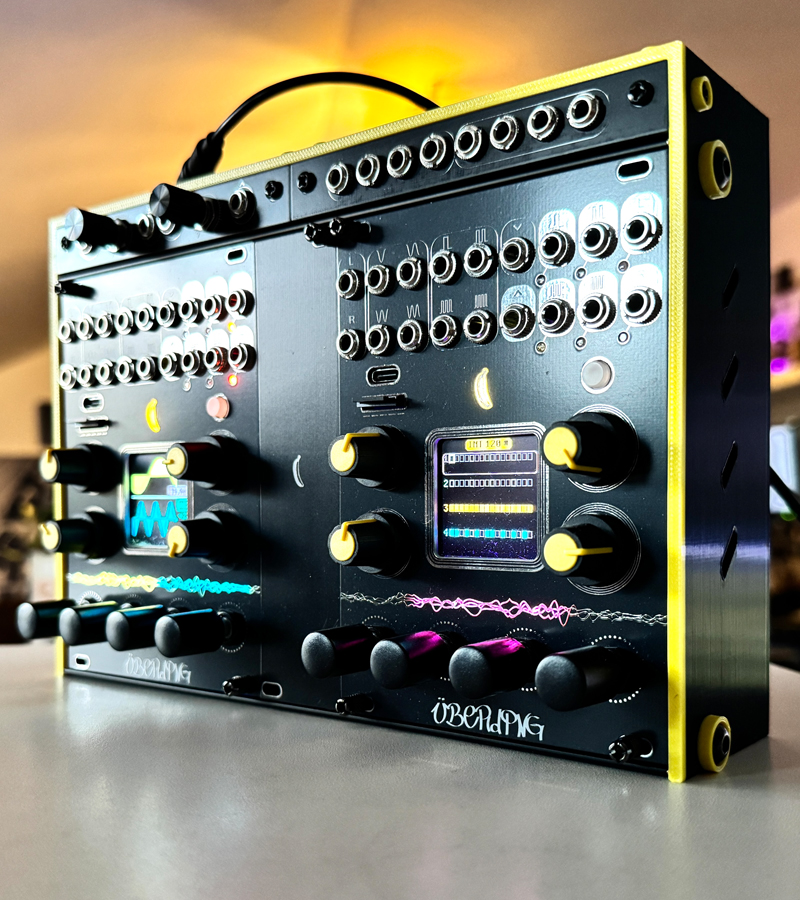

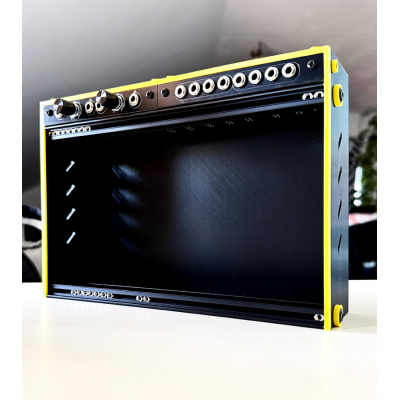

The smallest and most compact 42HP DIY case of our powered range.
High quality PETG print with black anodized aluminum rails and custom washers.
Plenty of power in an easy carry on signature case.

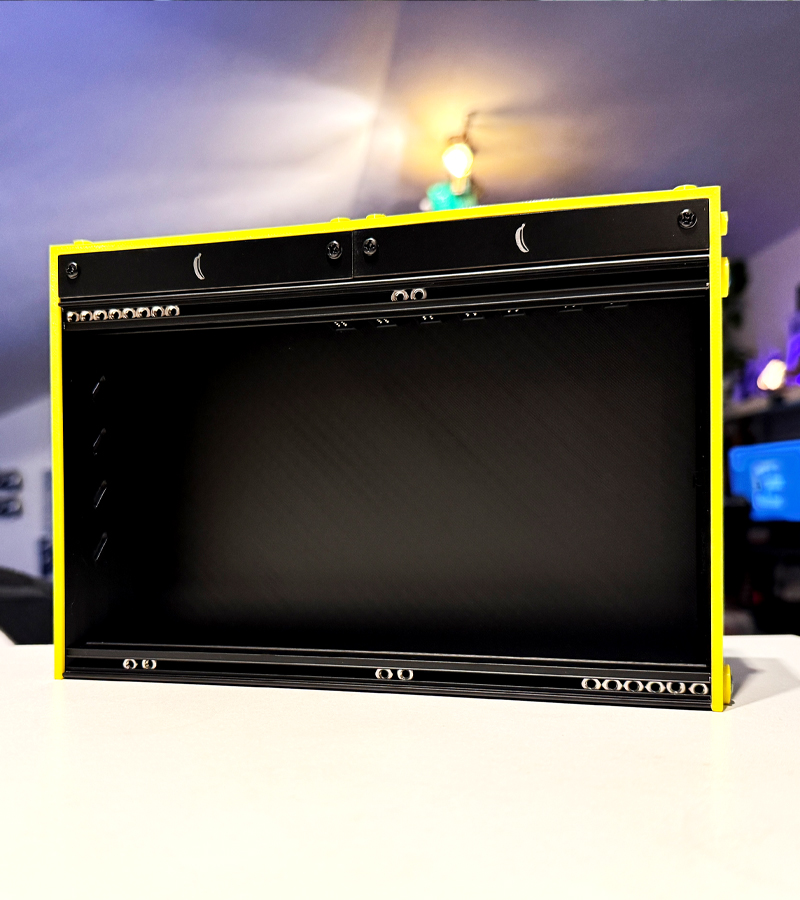

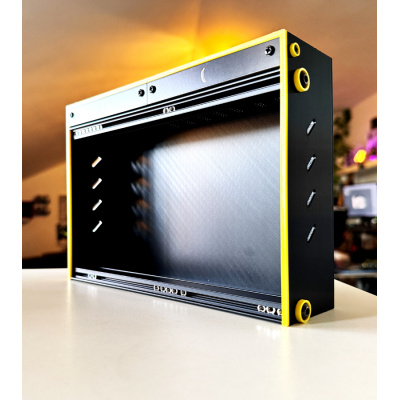

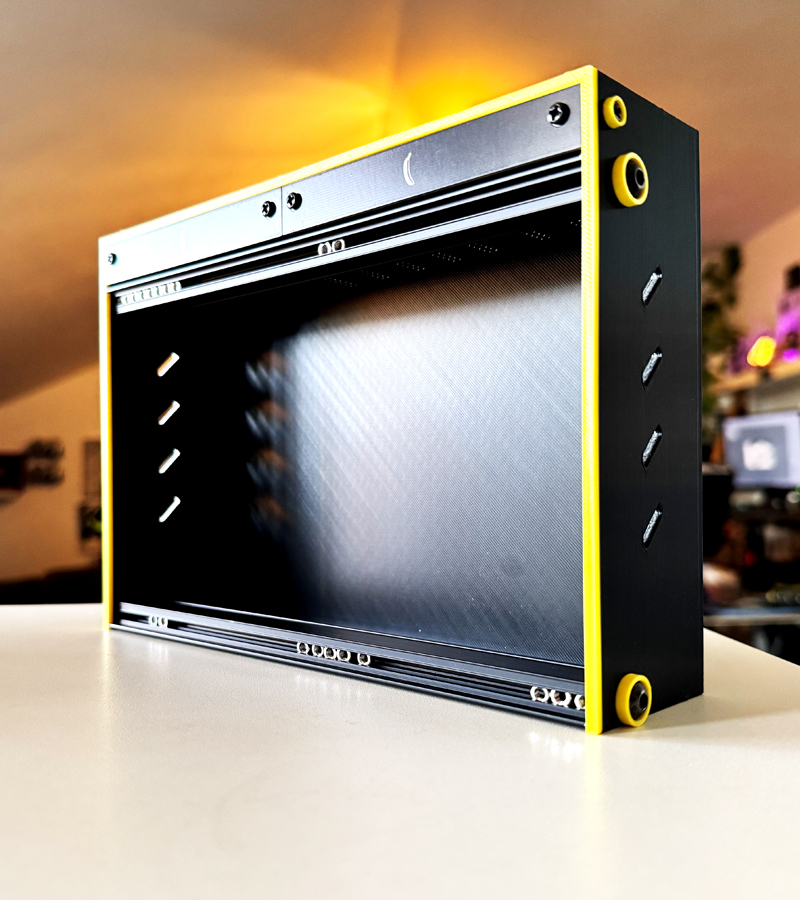

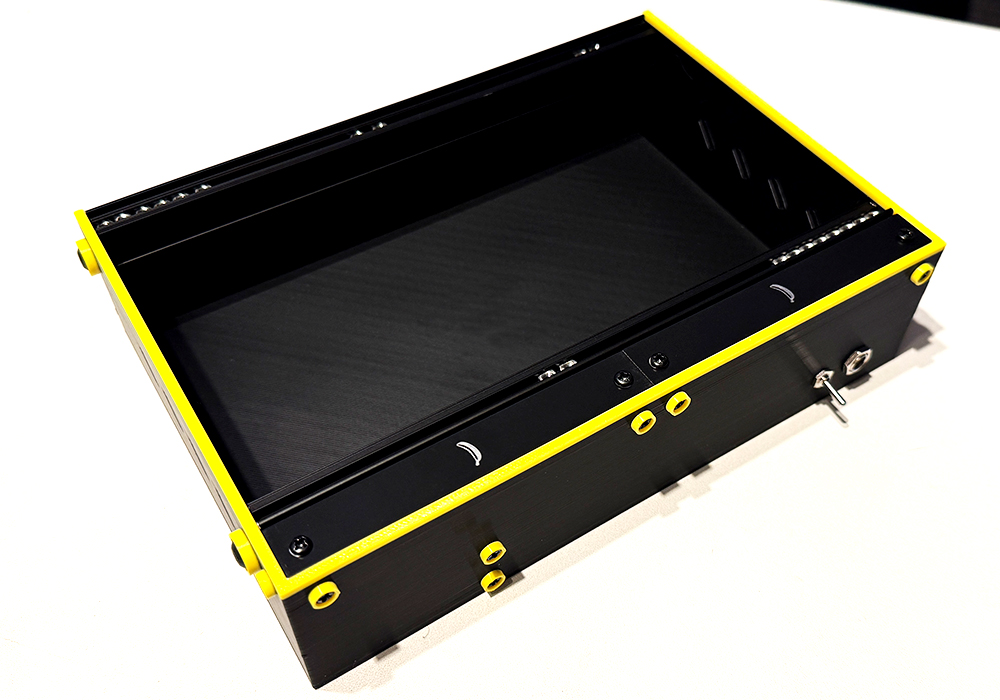

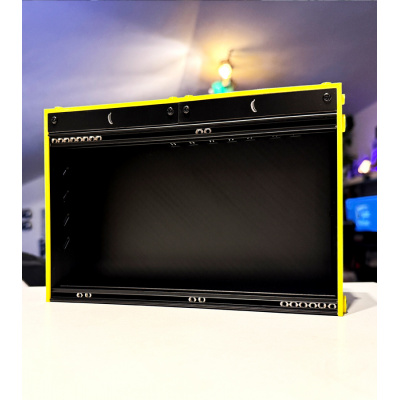

Choose between the blank or the seeded version.

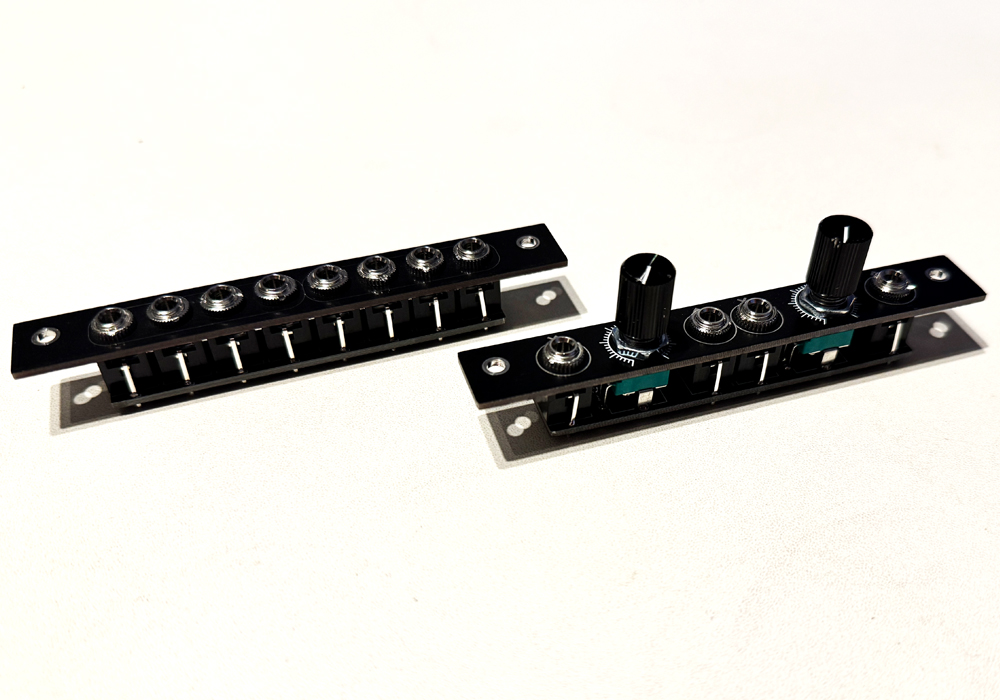

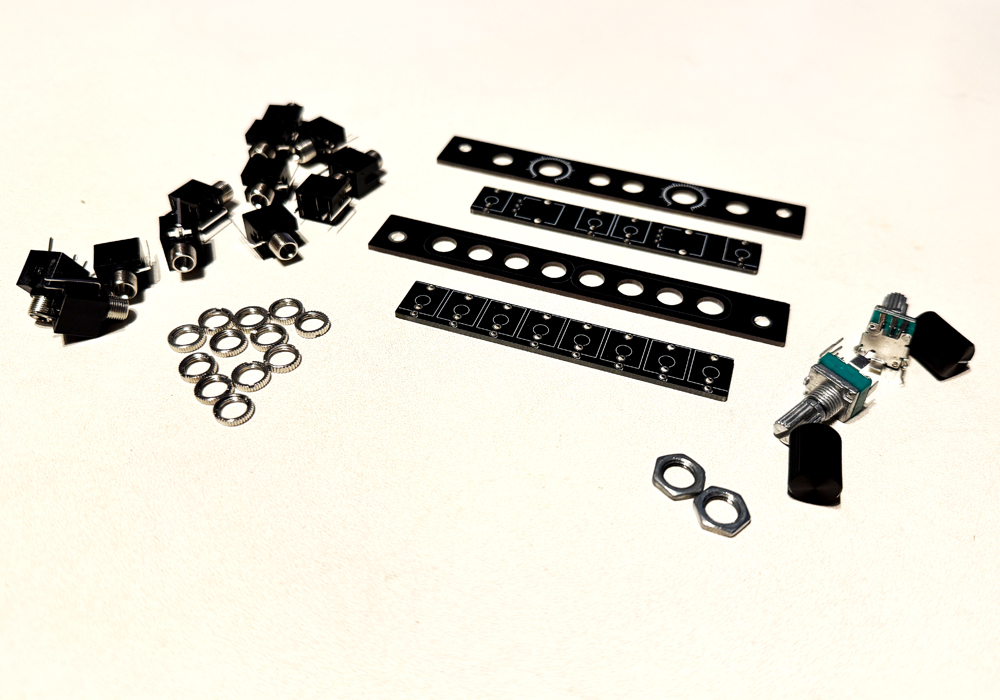

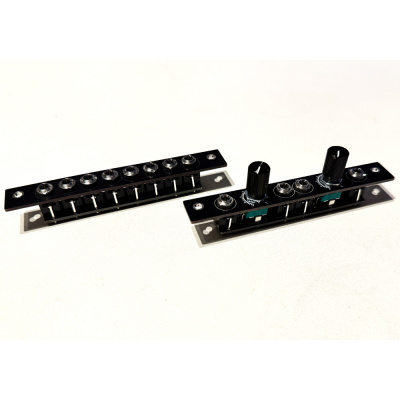

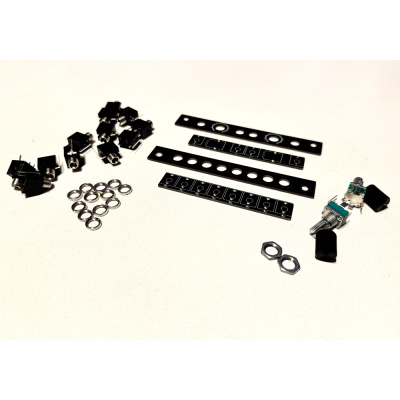

Seedlings are additional micro modules above the 3U rail.
So far we offering a passive 2x4 multiple and a dual attenuator as seedlings.
Specs:

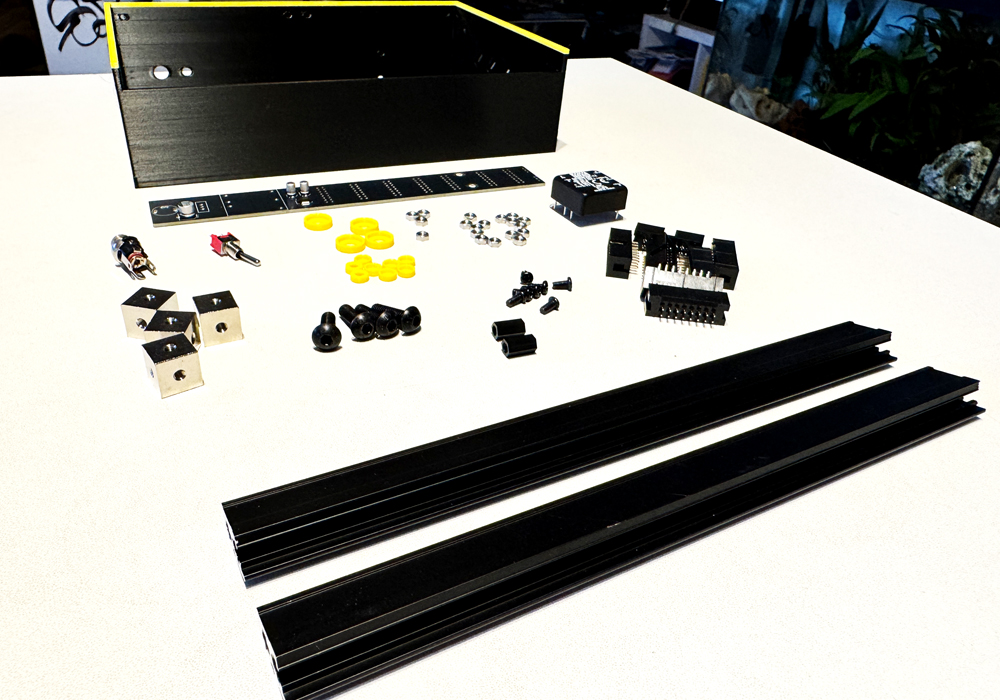

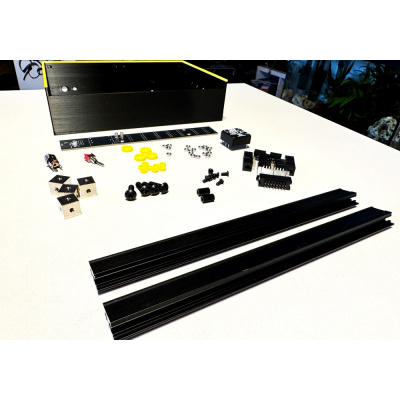

Full DIY kit including all needed parts.
No SMT parts to solder.
Width: 42HP
Depth: 50mm (true module depth from below the panel)
Power: +12V 1250mA / -12V 1250mA / 5V 1A (shared with DC input)
Power slots: 7
Rail nuts: 10x each rail
Recommended power source: 12V 3-5A 5.5 x 2.5mm center positive.
(not included!)
Note: Due to the nature of 3D printing there might be some spots with imperfection. Even with using
the same printing specs every time, each case get´s it´s own character.
Find the DIY guide here
