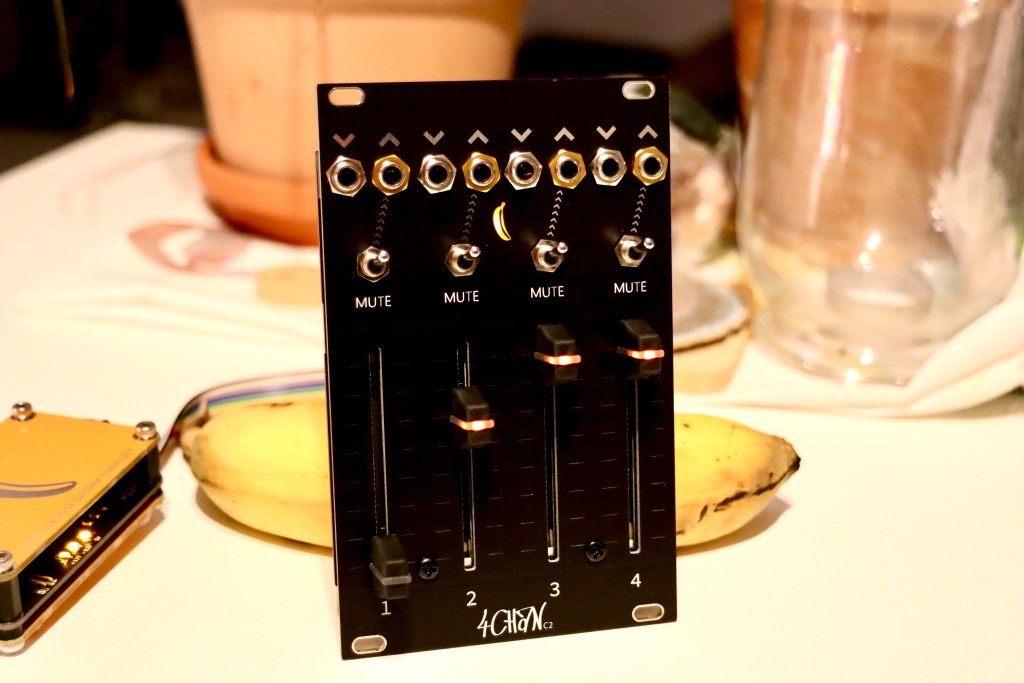

4CHAN C2 is a shrinked version of 10CHANultmt
It still looks and feels like a mixer, but it´s NOT mixing signals!
It´s a 4 channel faderbank that acts as attenuator or voltage source with clickless mutes.
Packed with 45mm LED faders that either indicate voltage or the signal you´re feeding.
The voltage range of a fader pair can be defined on the backside via jumpers. (5V & 9V)
It´s made for audio and cv signals ;)
With plugging a signal into an input the corresponding fader becomes an attenuator.
With no signal plugged the output becomes a voltage source that can be attenuated with the fader.
The mutes a are built around vactrols / optocouplers and result in clickless on / off switching on any signal you feed with a slight fade out when switching off.
I´ve been going through a lot of pain with finding the right and “best” matched vactrols for this unit and it became the NSL 32r3.
16HP
Depth: 30mm
+12V 80mA
-12V 0mA
